Airbag System
>>
16A Warning Lamp Short
16A Warning Lamp Short

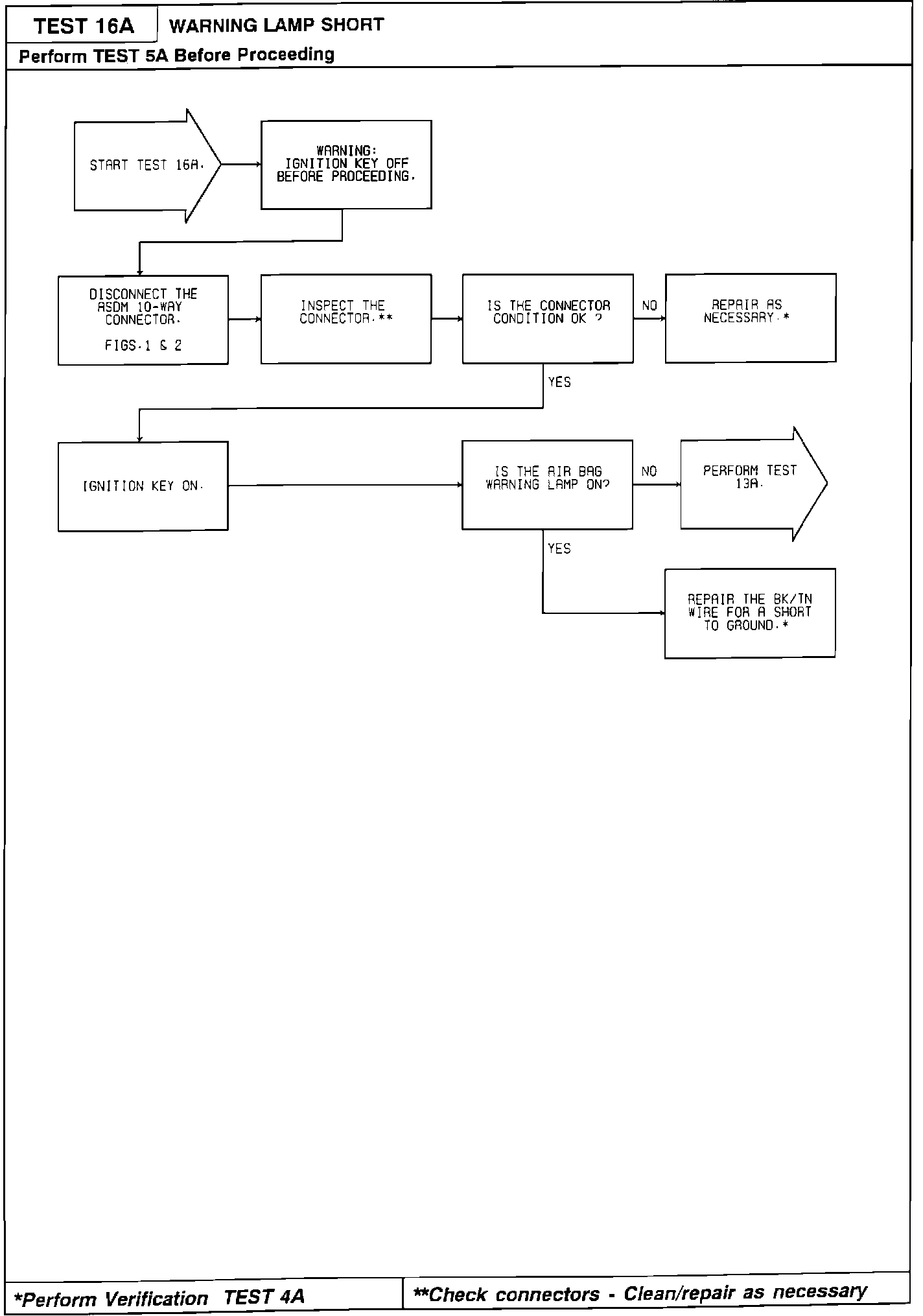

Test 16A - Warning Lamp Short (Part 1 Of 1):

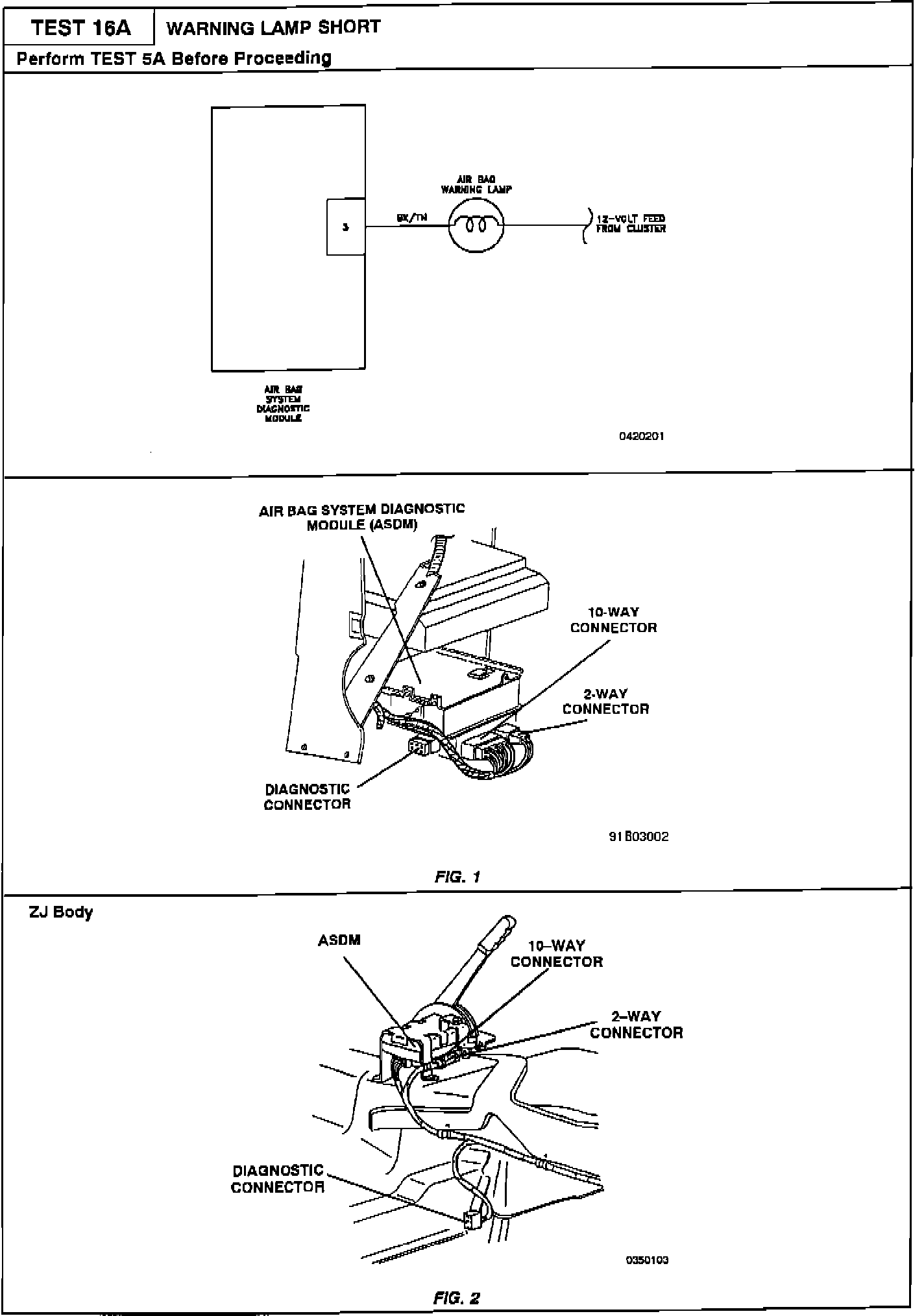

Test 16A - Warning Lamp Short (Part 1 Of 1):
