Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 12B One Front Sensor Open

12B One Front Sensor Open

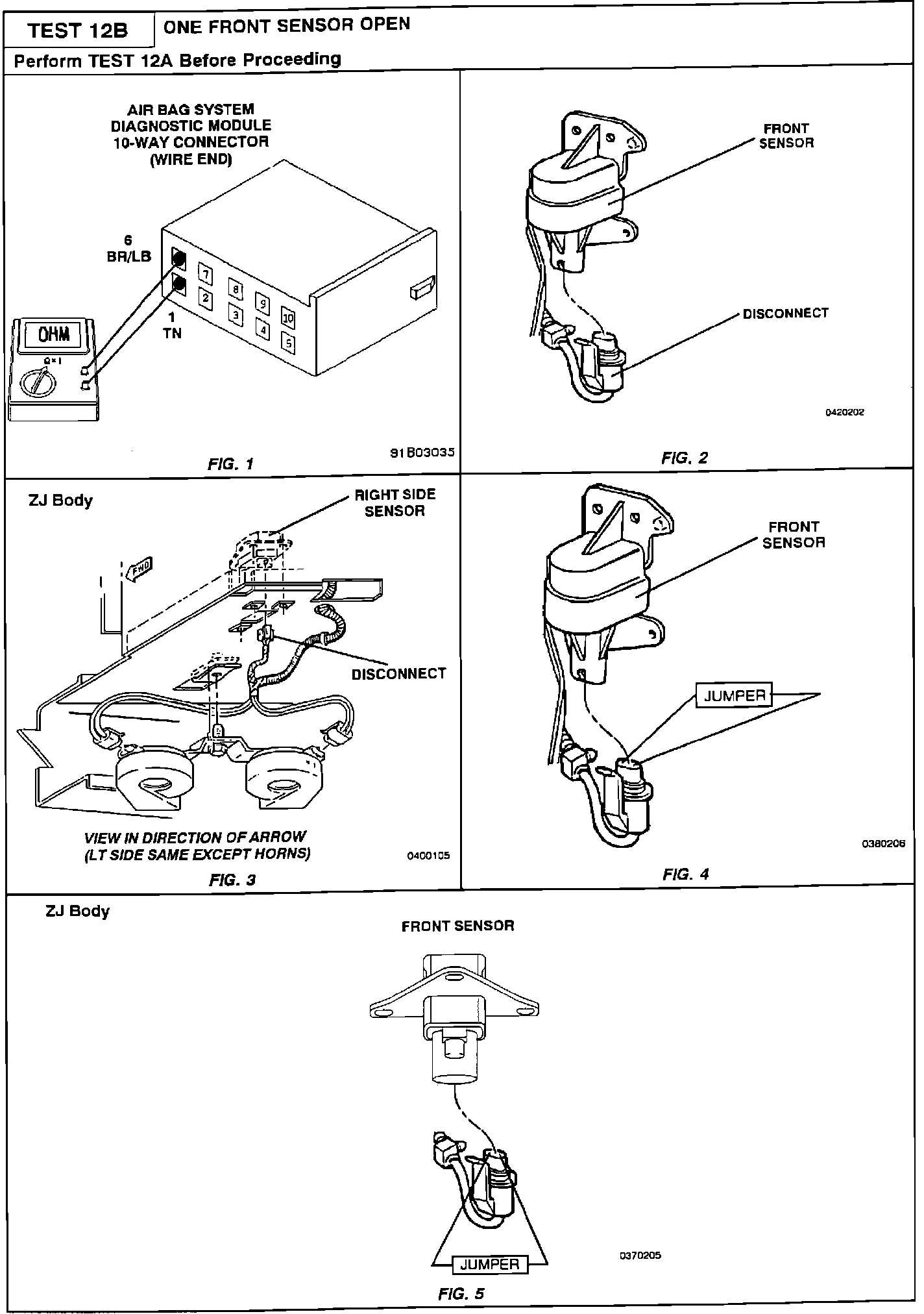

Test 12B - One Front Sensor Open (Part 1 Of 1):



Test 12B - One Front Sensor Open (Part 1 Of 1):
