Home >> Chrysler >> 1992 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 11B Low Stored Energy

11B Low Stored Energy

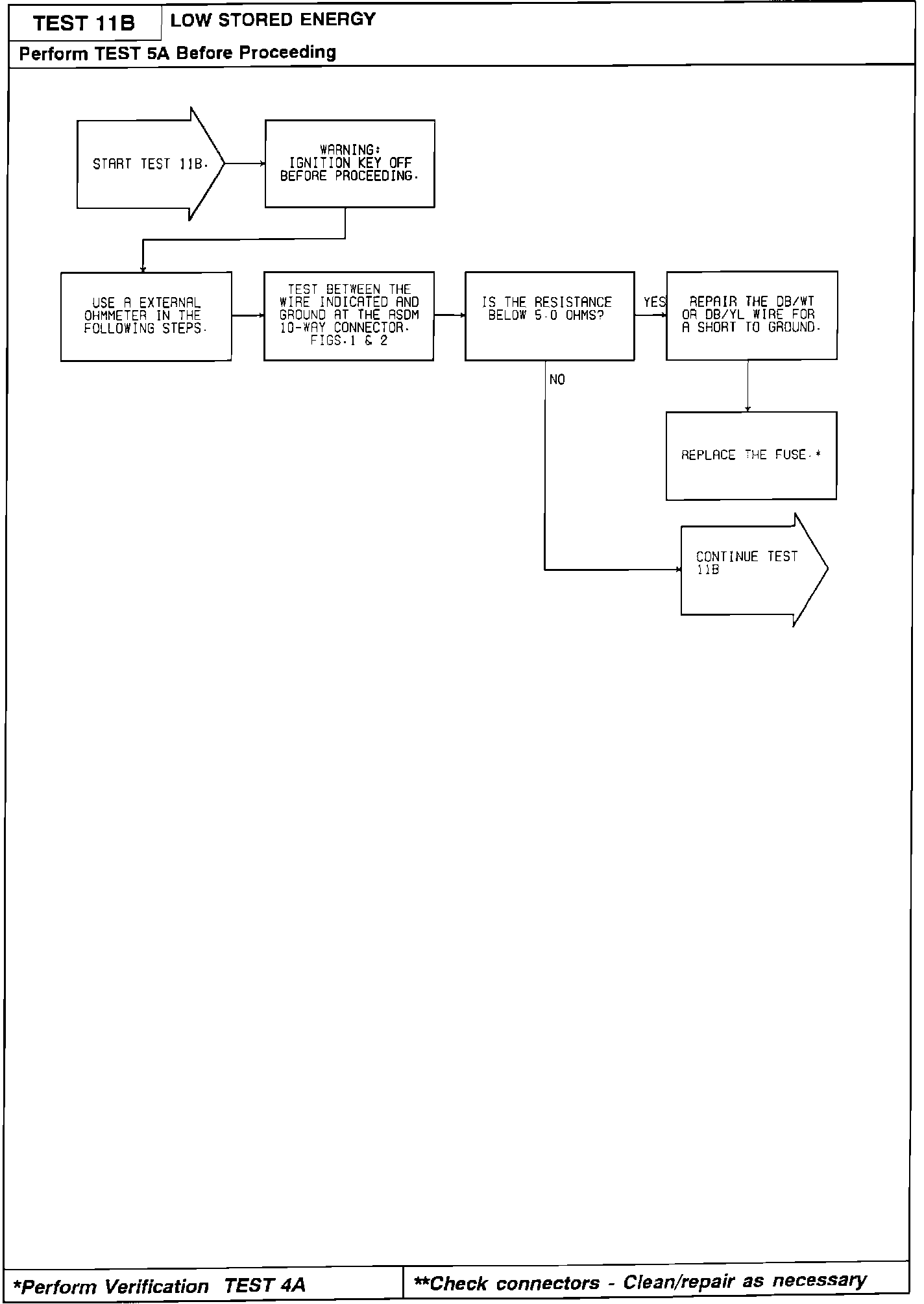

Test 11B - Low Stored Energy (Part 1 Of 2):



Test 11B - Low Stored Energy (Part 1 Of 2):



Test 11B - Low Stored Energy (Part 2 Of 2):



Test 11B - Low Stored Energy (Part 2 Of 2):
