Home
>>
Chrysler
>>
1992
>>
Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Rear Wiper/Washer System
Rear Wiper/Washer System

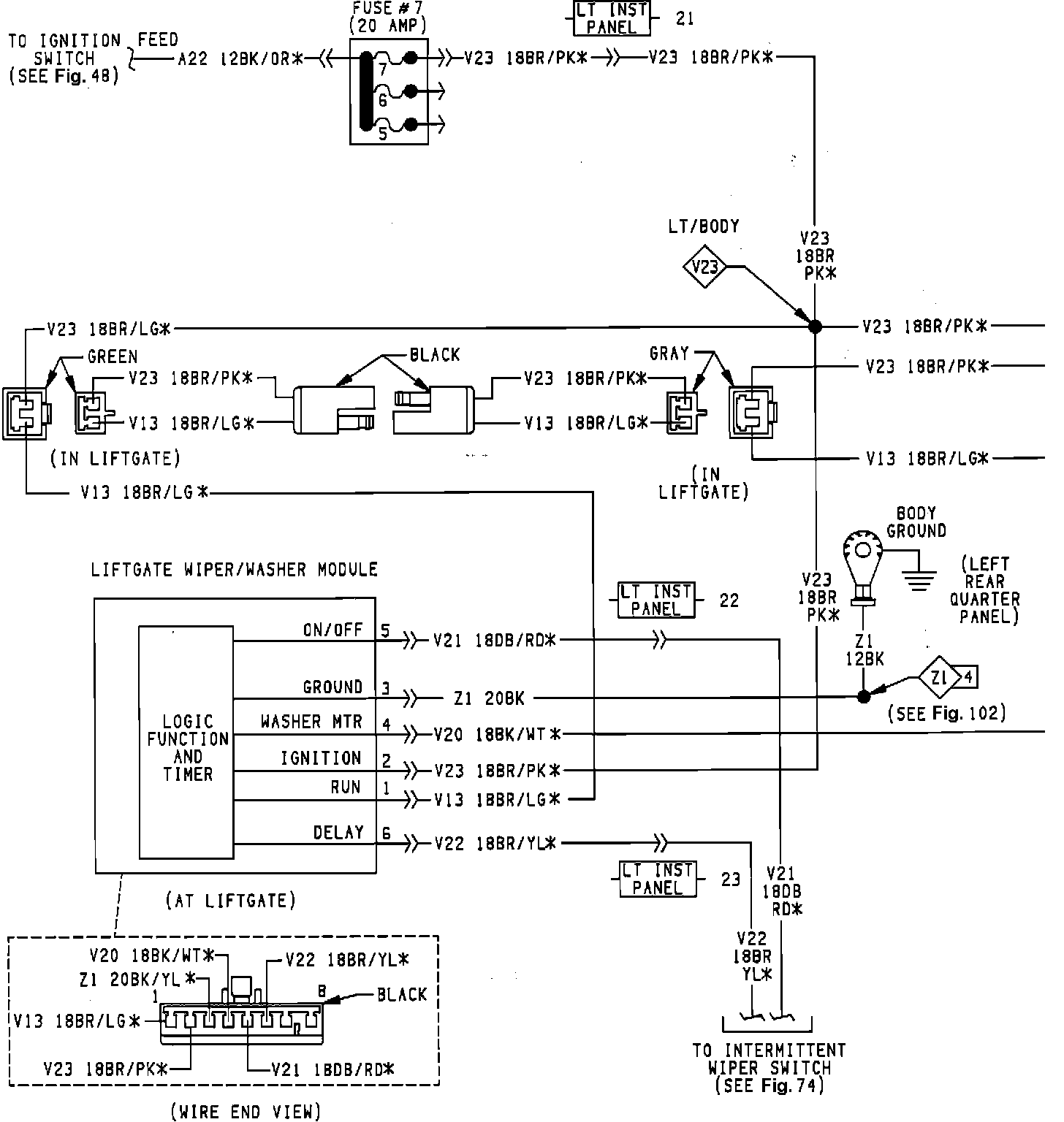

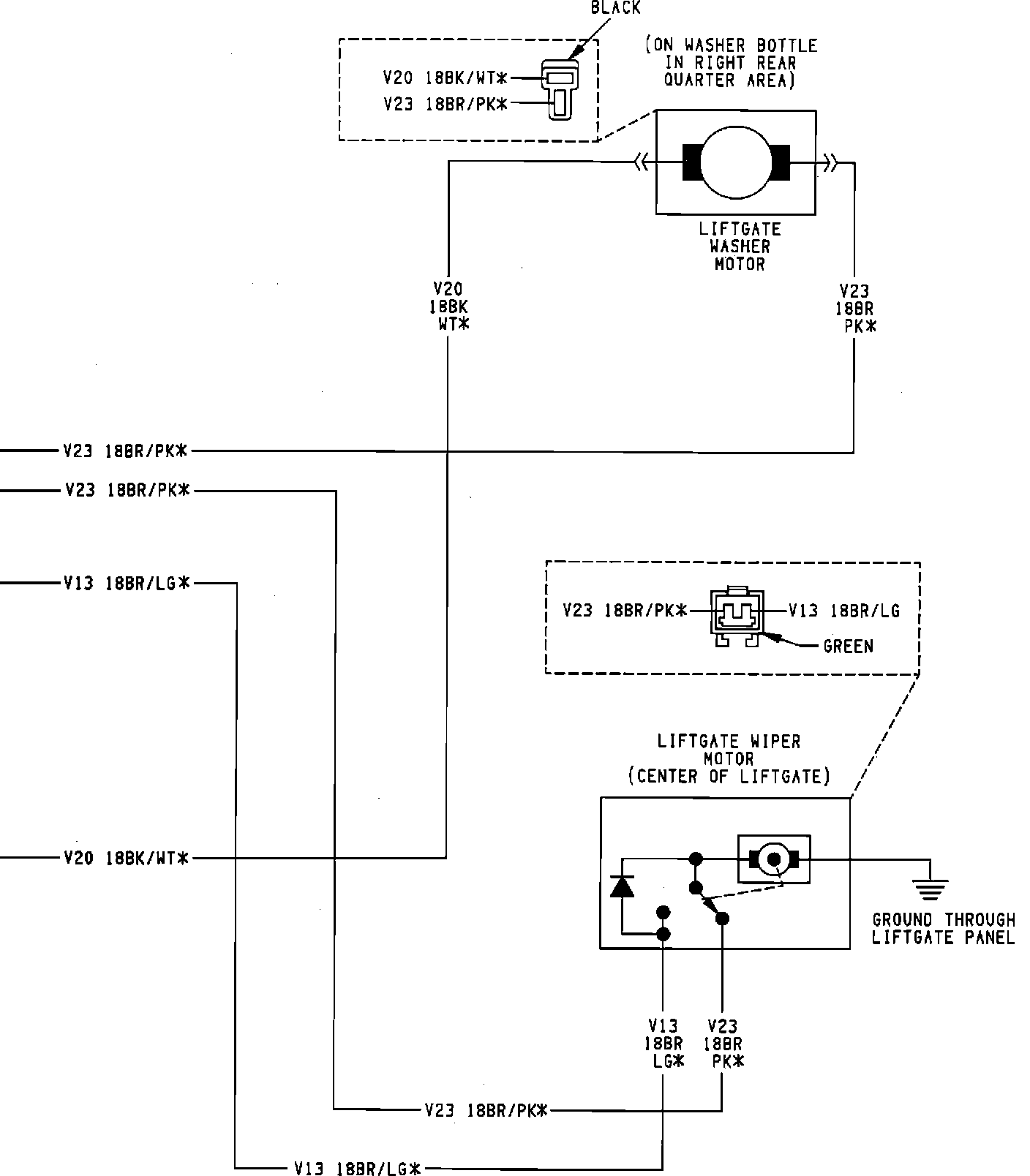

Liftgate Wiper And Washer System:
Liftgate Wiper And Washer System:
