Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>

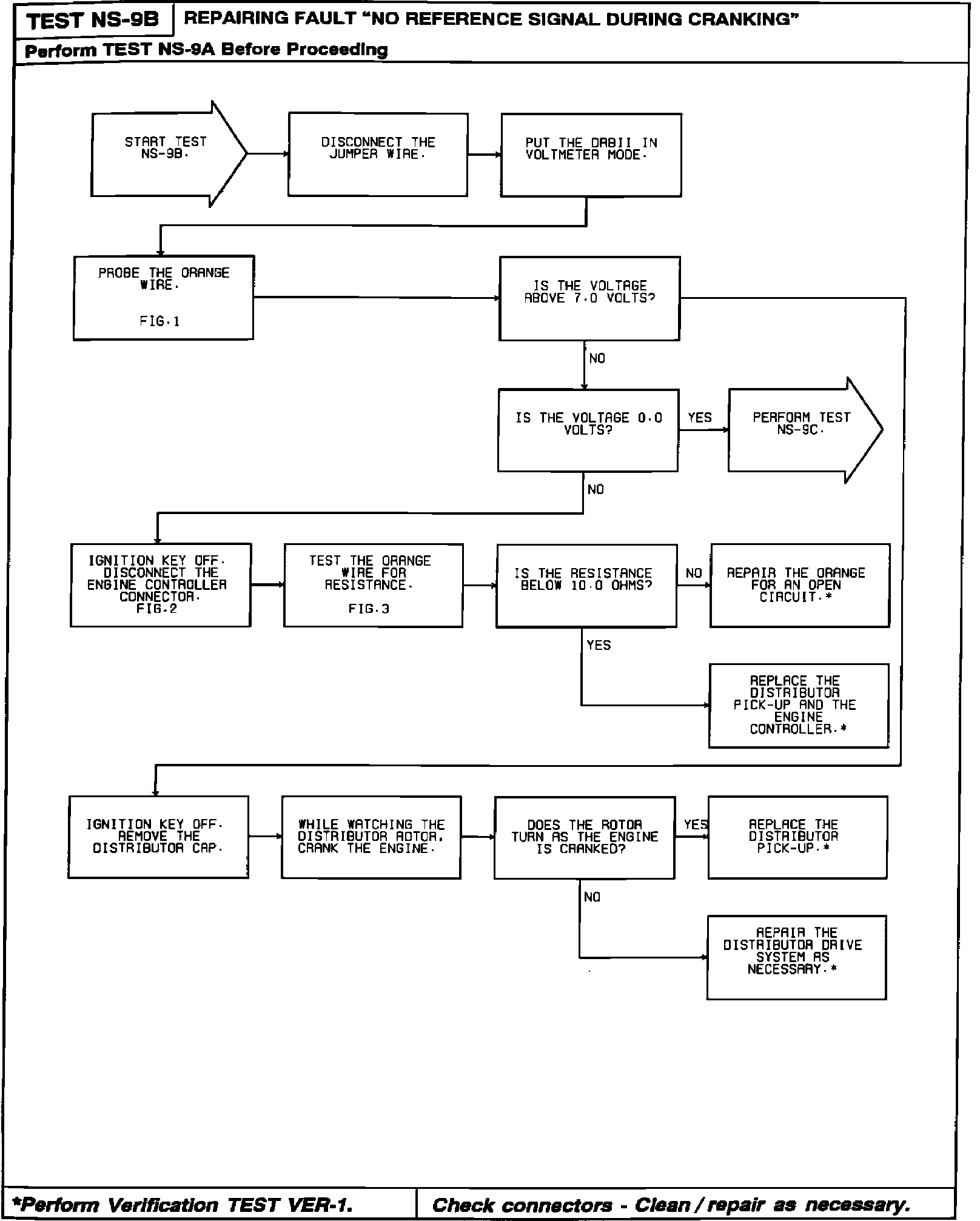

NS-9B Repairing "No Reference Signal During Cranking" Fault
NS-9B Repairing "No Reference Signal During Cranking" Fault
Repairing "No Reference Signal During Cranking" Fault:
Test NS-9B - "No Reference Signal During Cranking":
