FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1992
>>
Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Fault (NF) Tests
>>
NF-5A Checking MAP Sensor Calibration
NF-5A Checking MAP Sensor Calibration

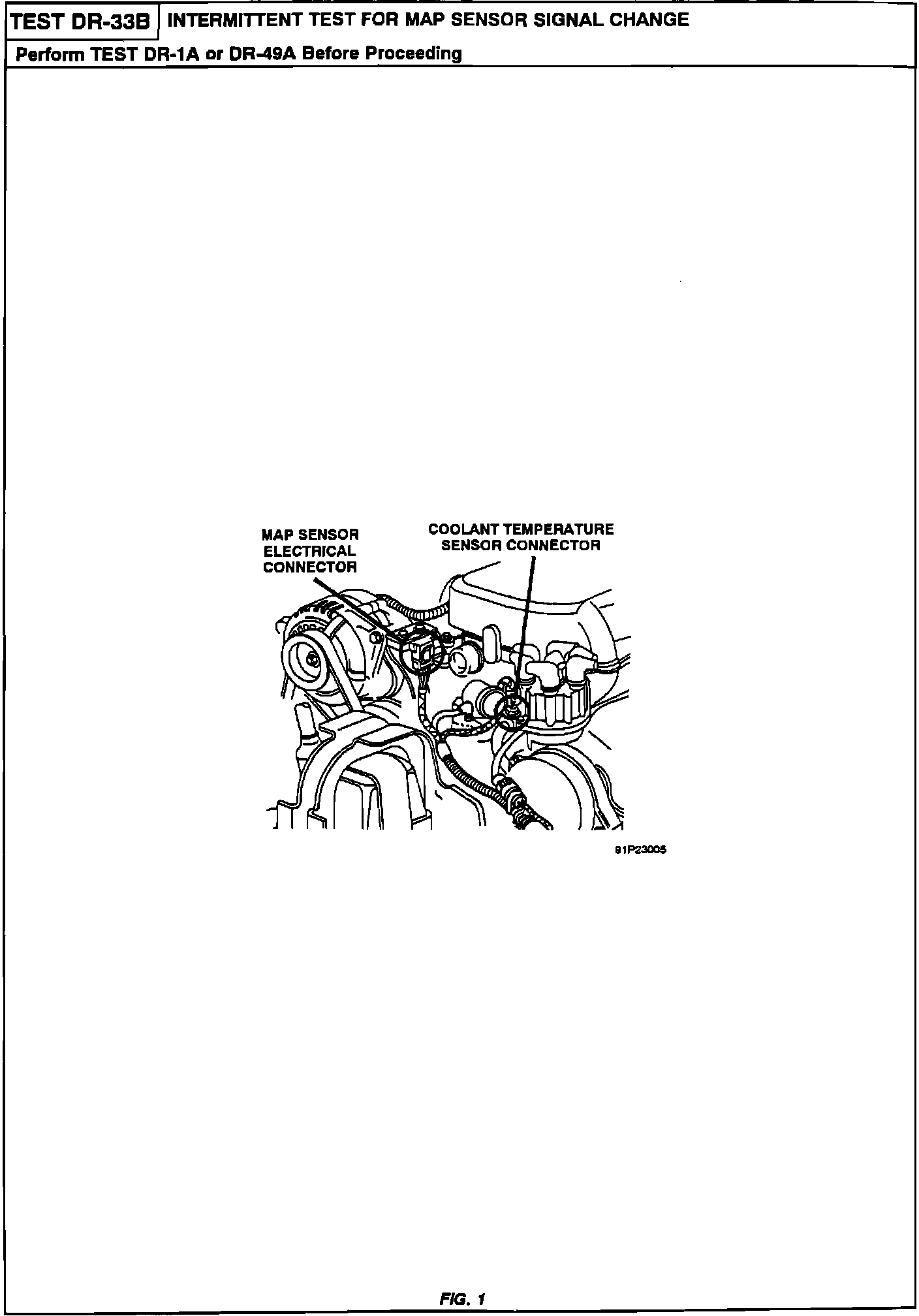

Intermittant Test For MAP Sensor Signal Change:

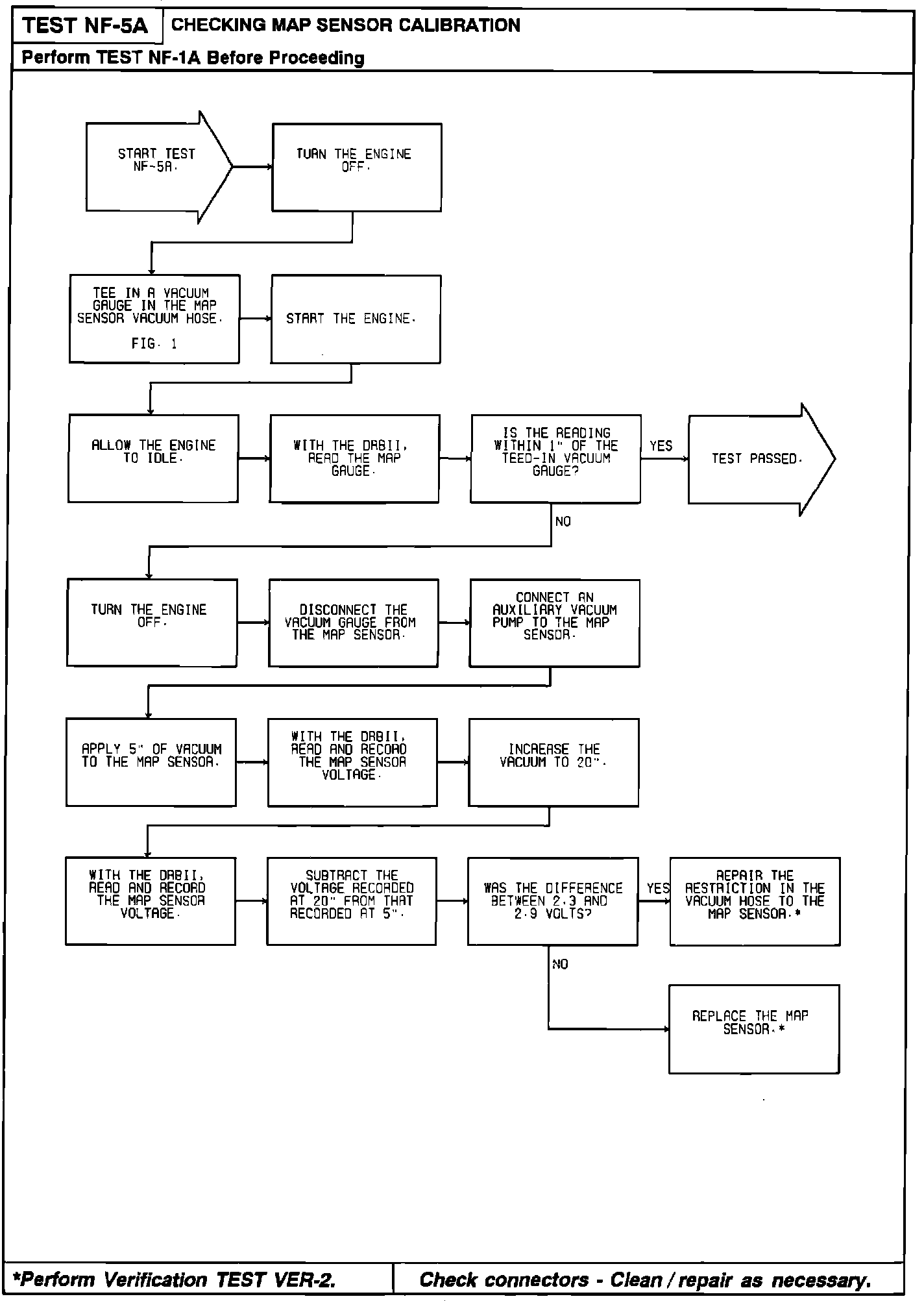

Checking MAP Sensor Calibration:
