NF-4A Checking Coolant & TPS Calibration
NF-4A Checking Coolant & TPS Calibration

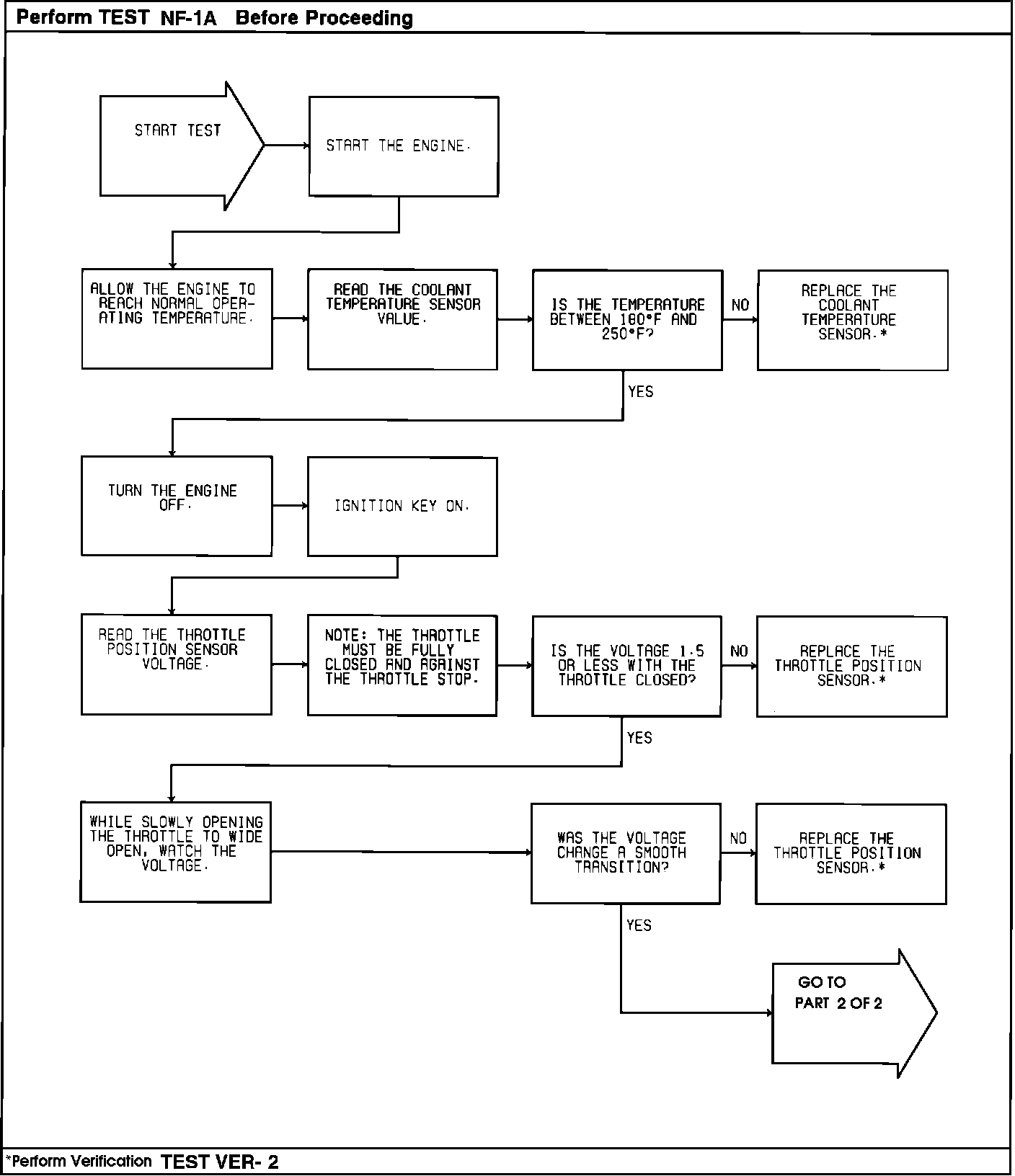

Checking Coolant And TPS Calibration:

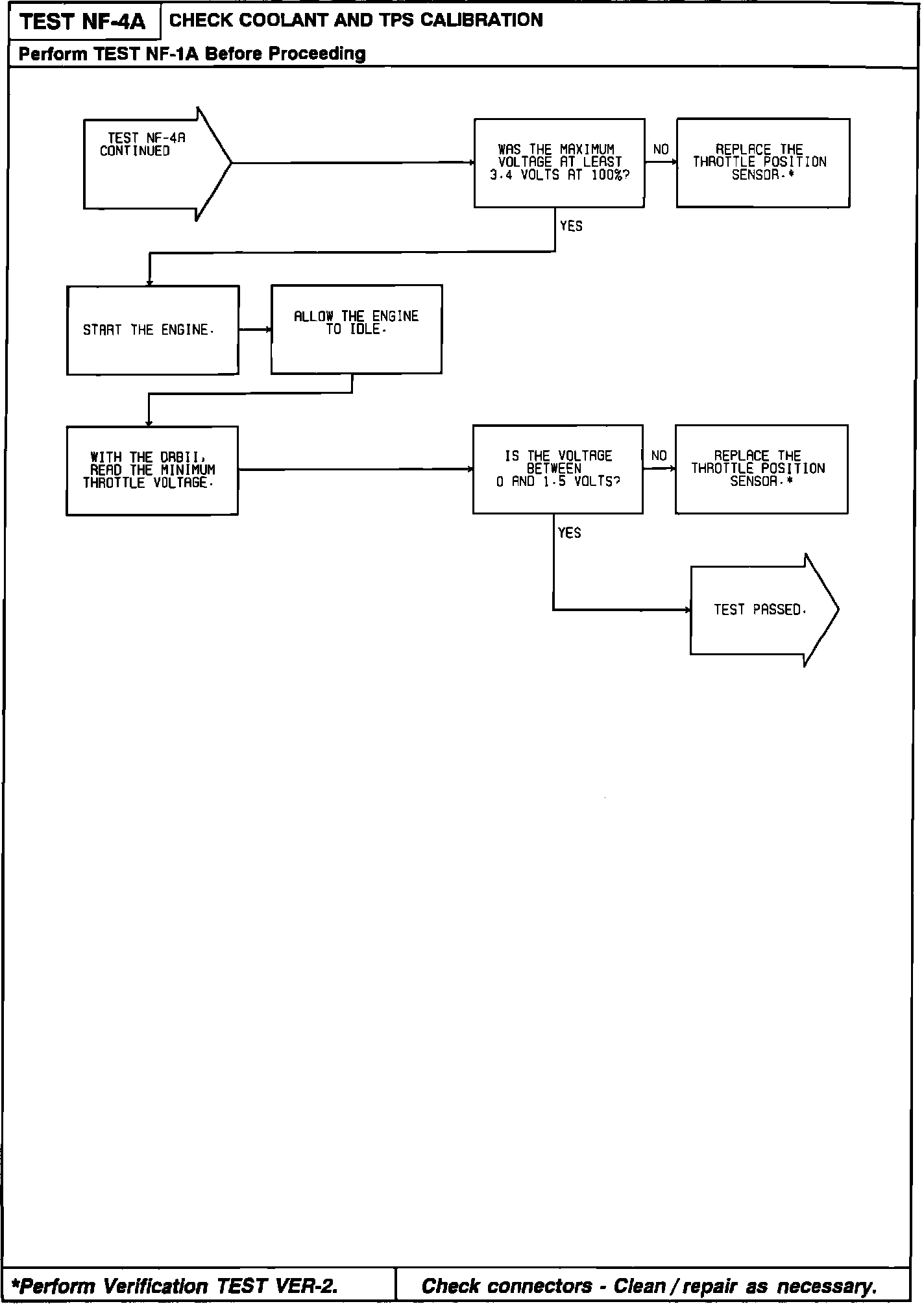

Checking Coolant And TPS Calibration:
