Home >> Chrysler >> 1992 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams >> Connector Views >> Fuse Block and Relay Bank

Fuse Block and Relay Bank

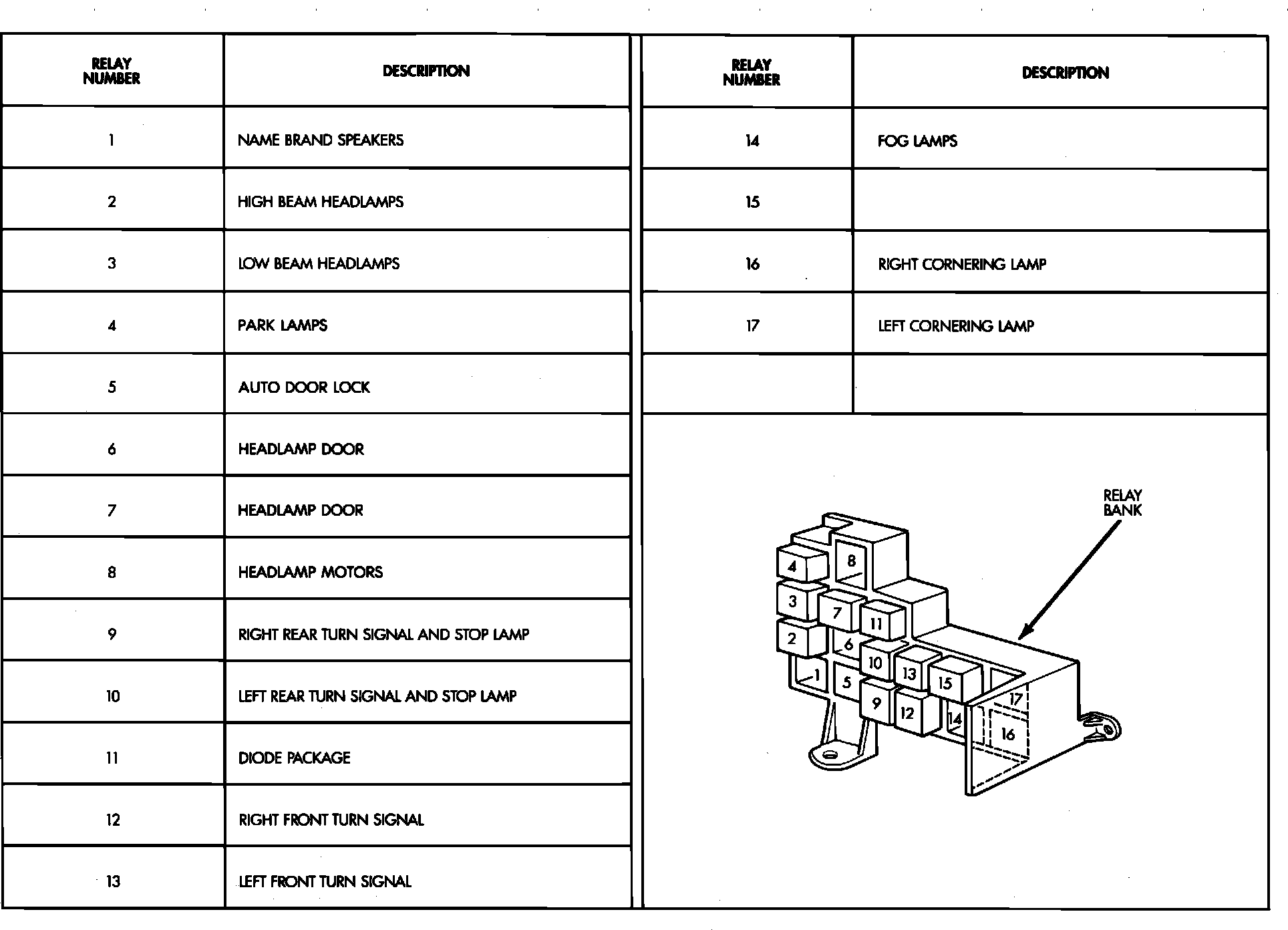

Relay Bank AG, AJ Body:



Fuse Block:
