Part 5

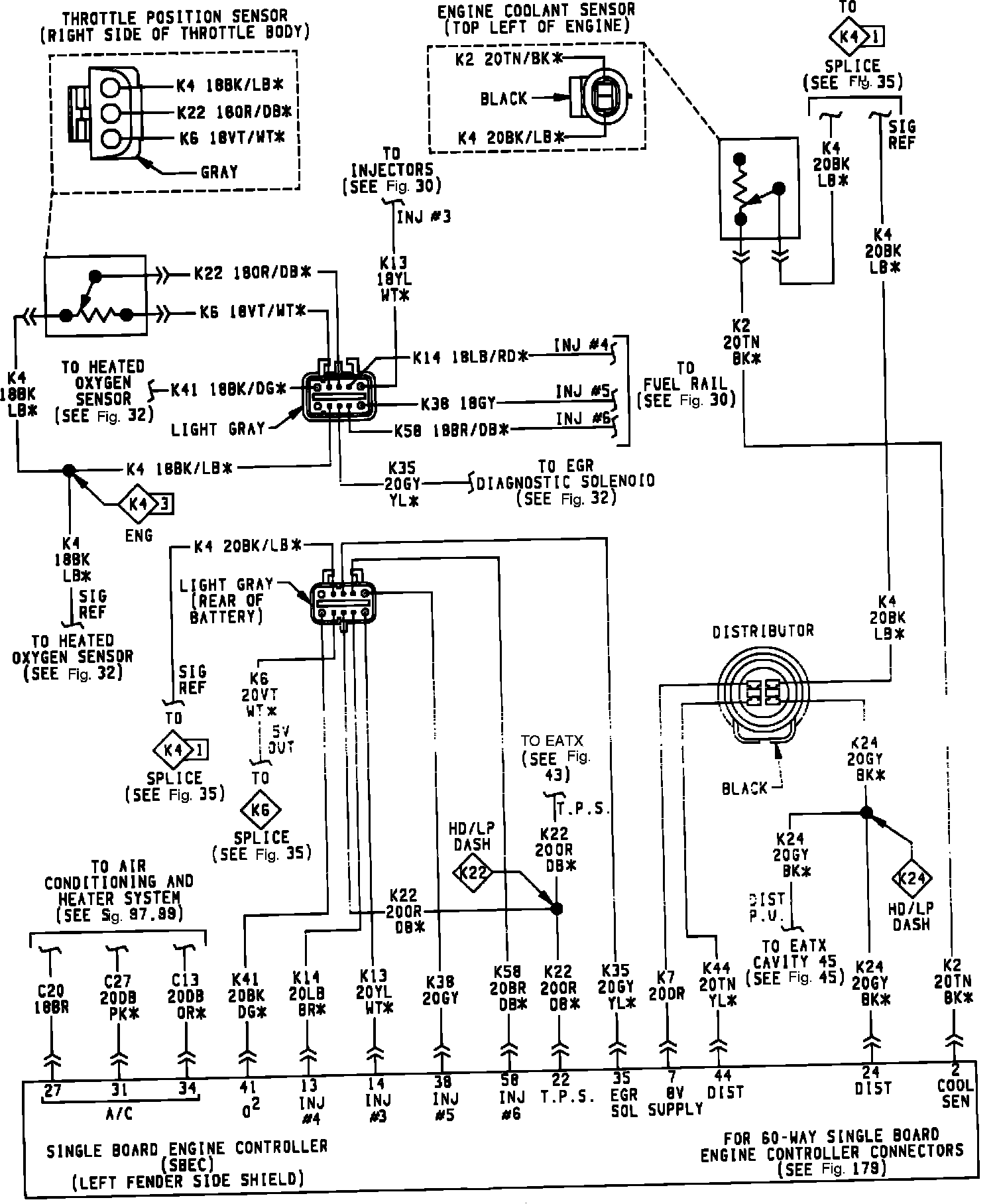

Fuel Injection And Ignition System Wiring Diagram (5 Of 6):



Electronic Fuel Injection (EFI) Ignition System:
