System Diagram

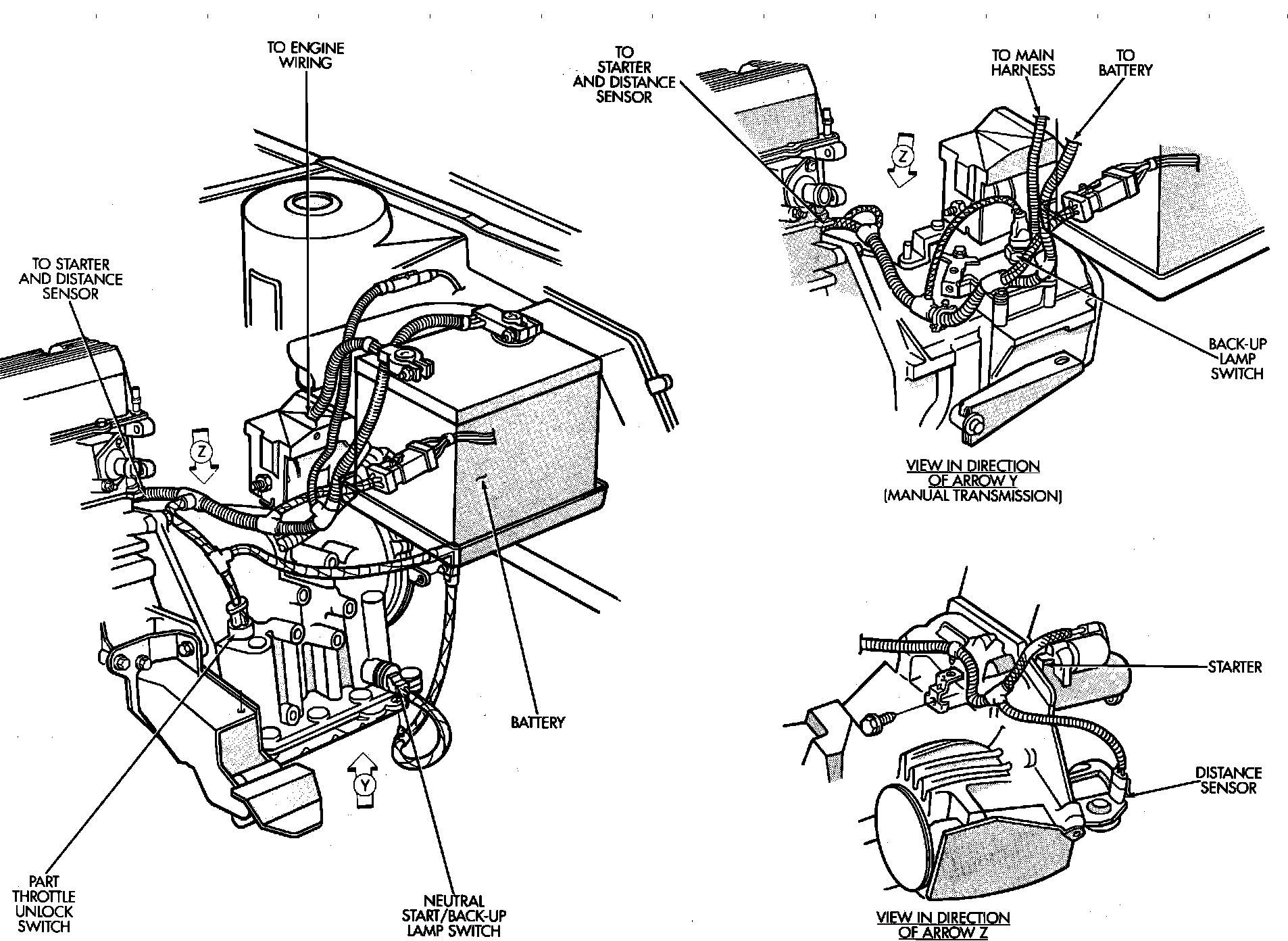

Transmission Wiring With 3 Speed Automatic:

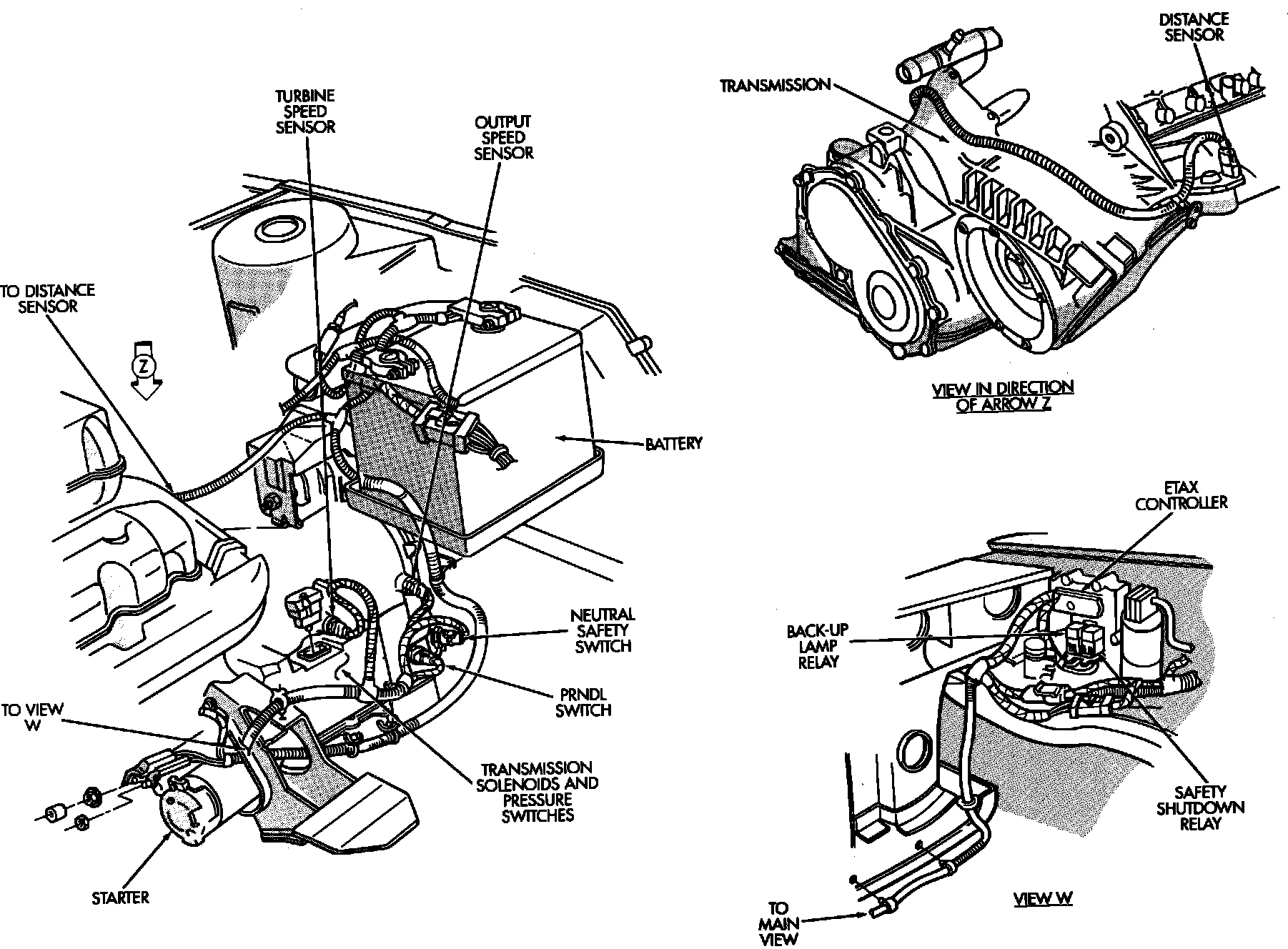

Transmission Wiring ETAX:

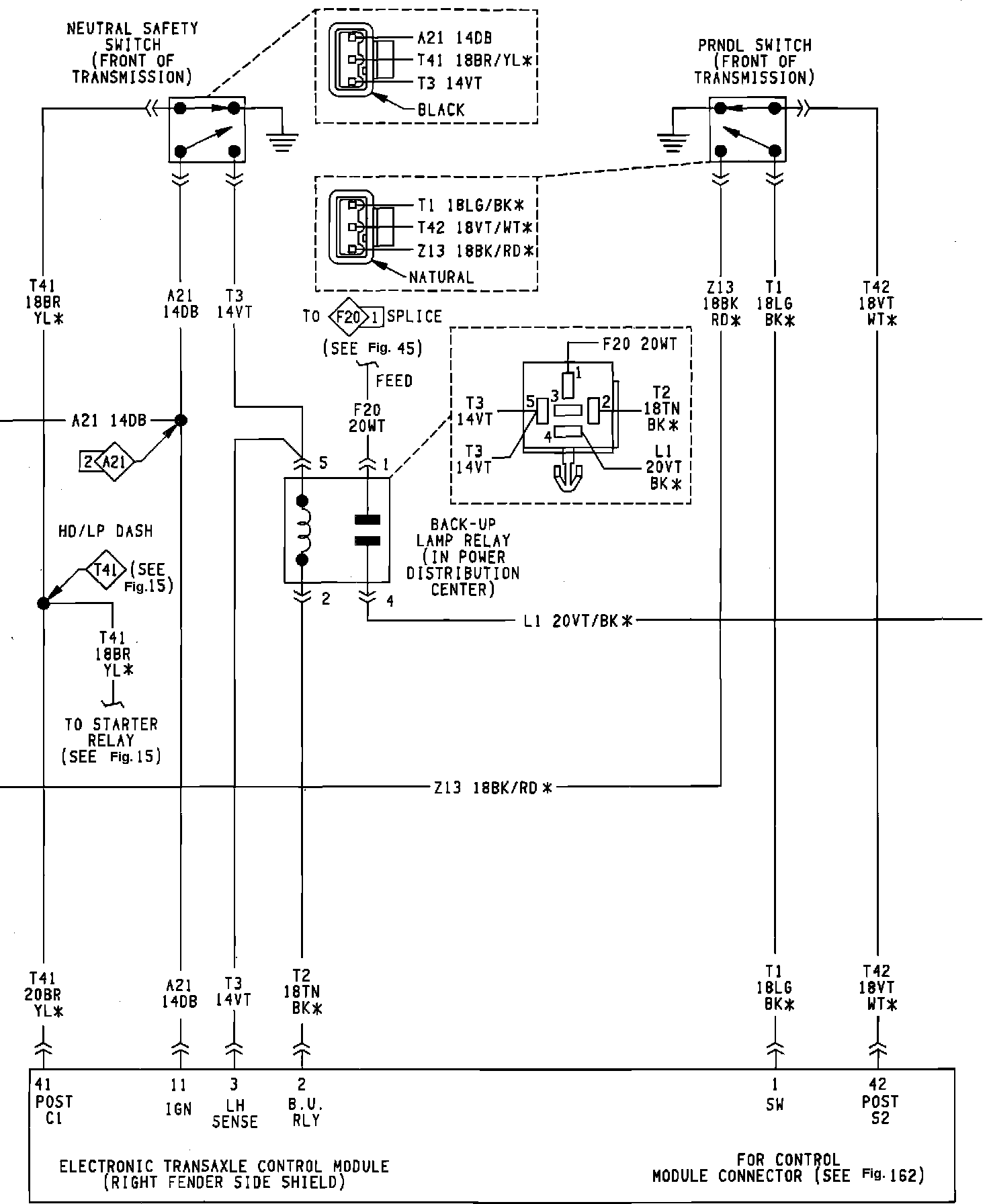

Electronic Transaxle System:

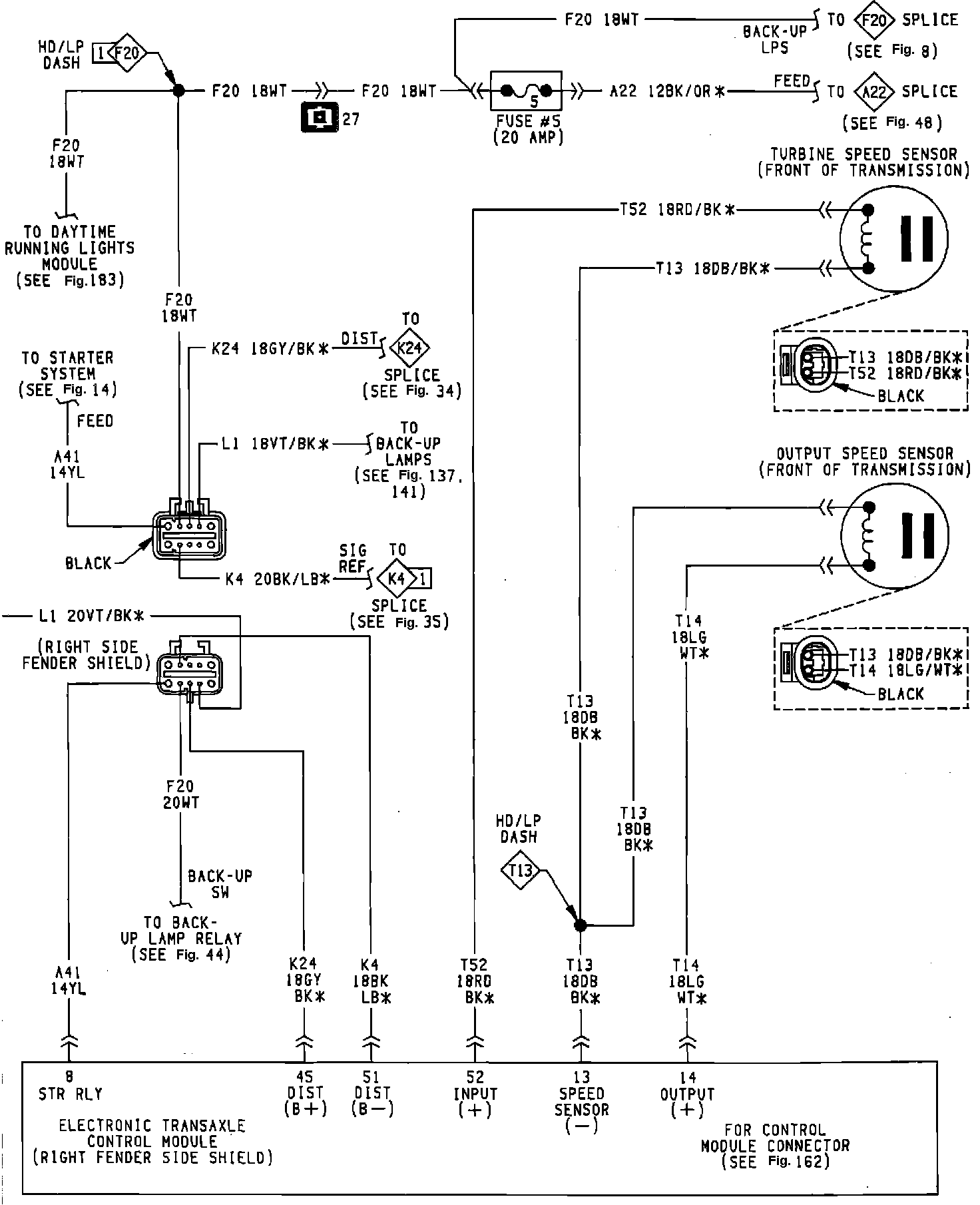

Electronic Transaxle System:

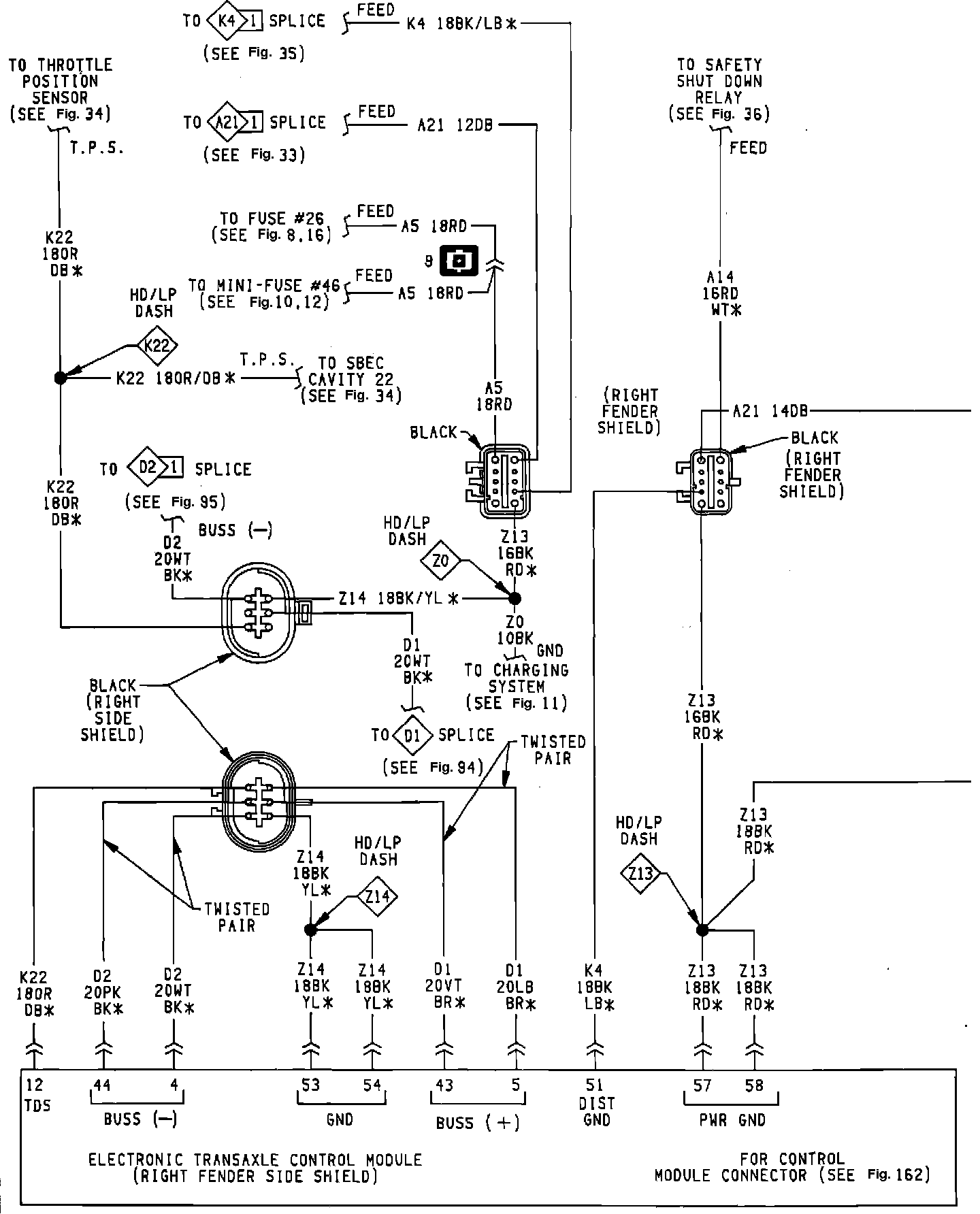

Electronic Transaxle System:



Electronic Transaxle System:
