Home >> Chrysler >> 1992 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 57A Testing the Engine Node For No Response

57A Testing the Engine Node For No Response

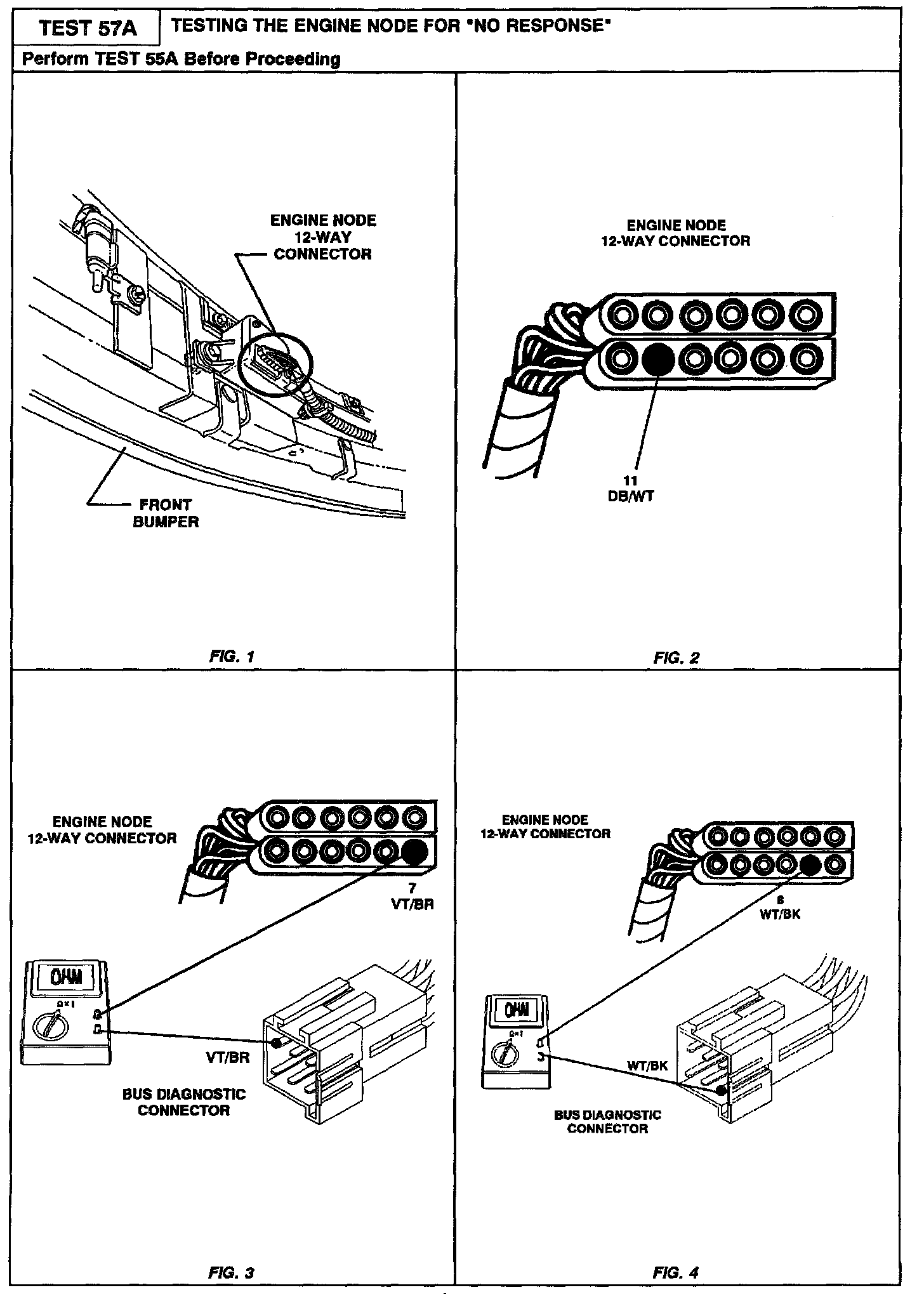

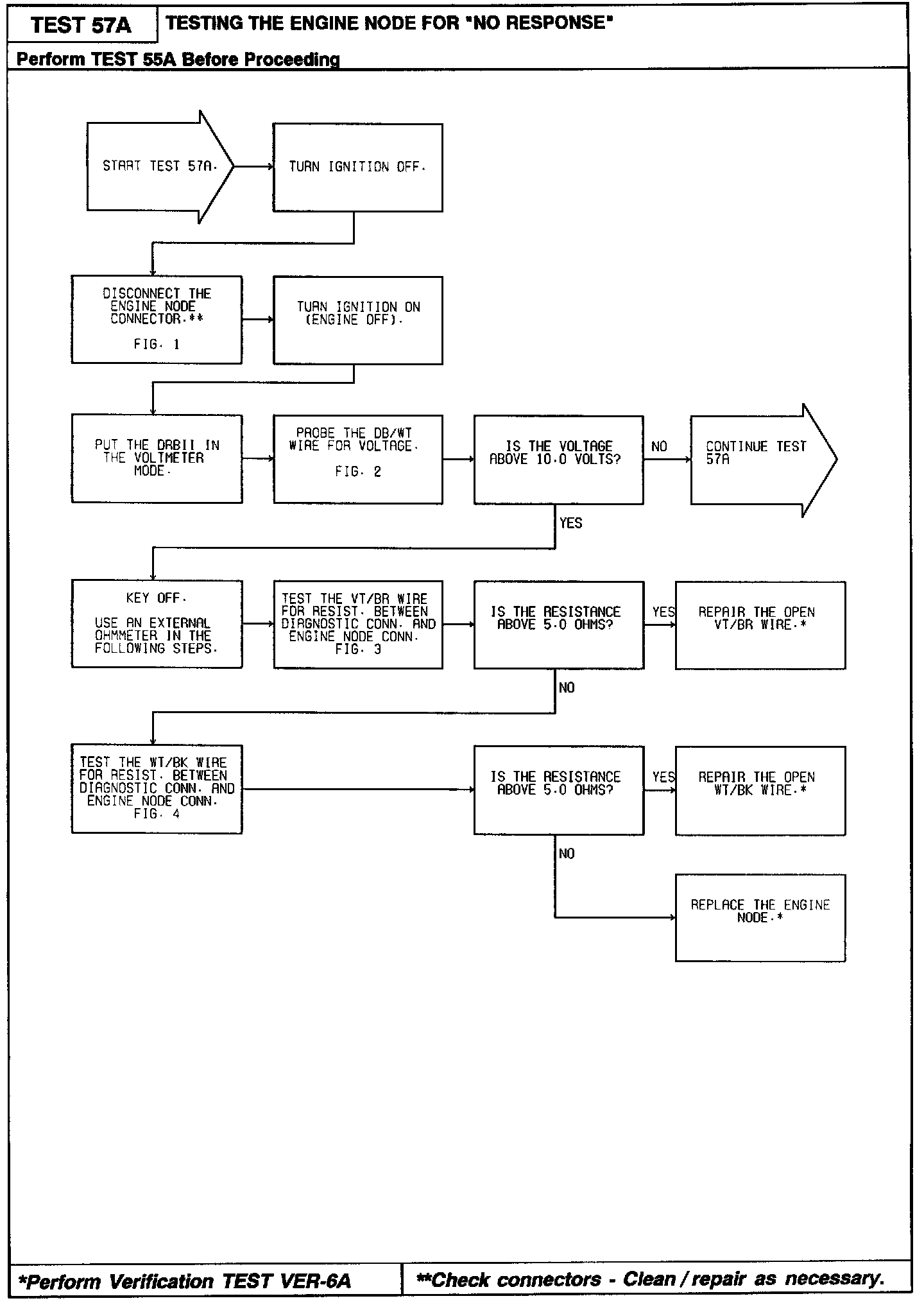

Part 1 of 3

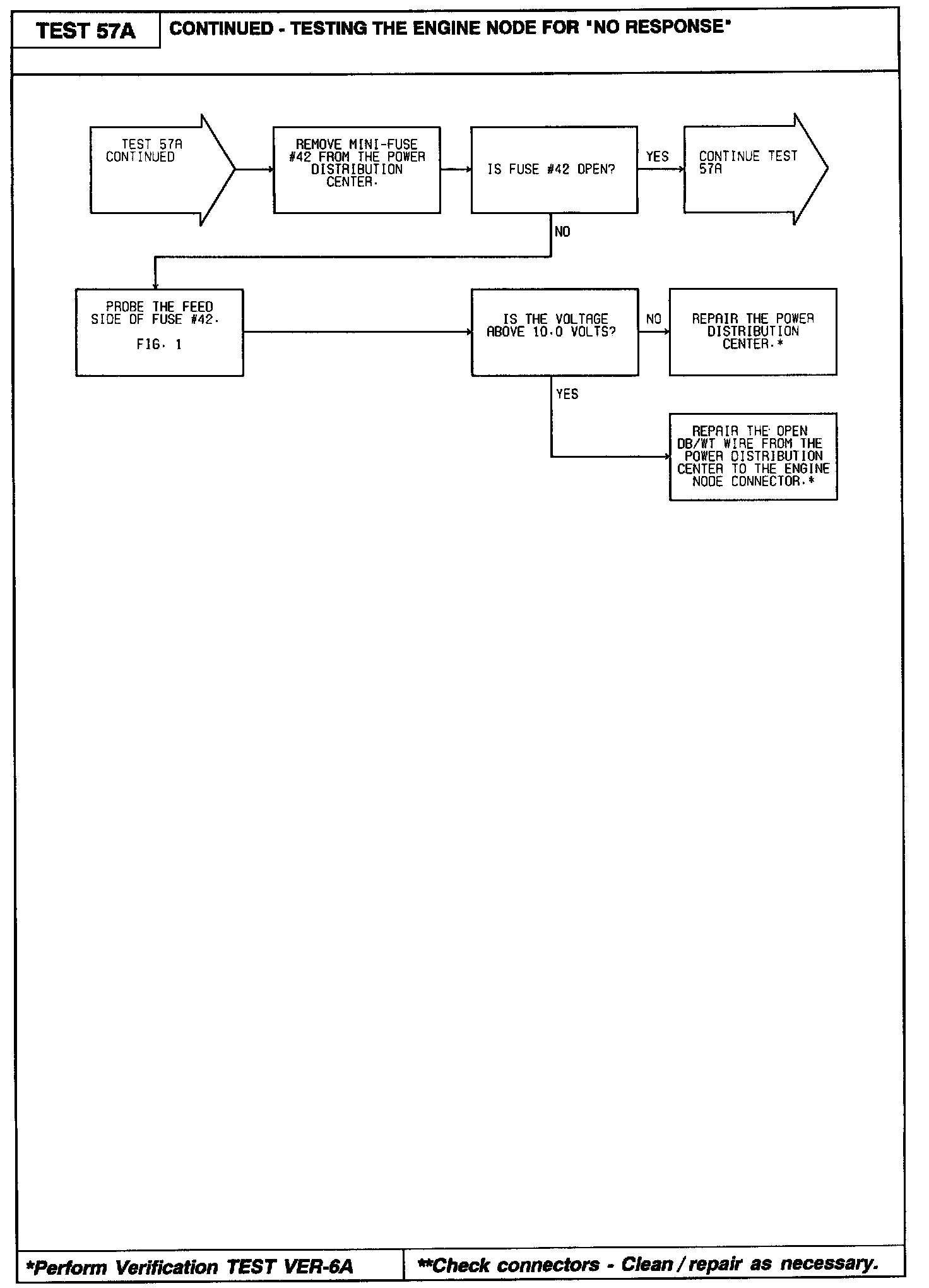

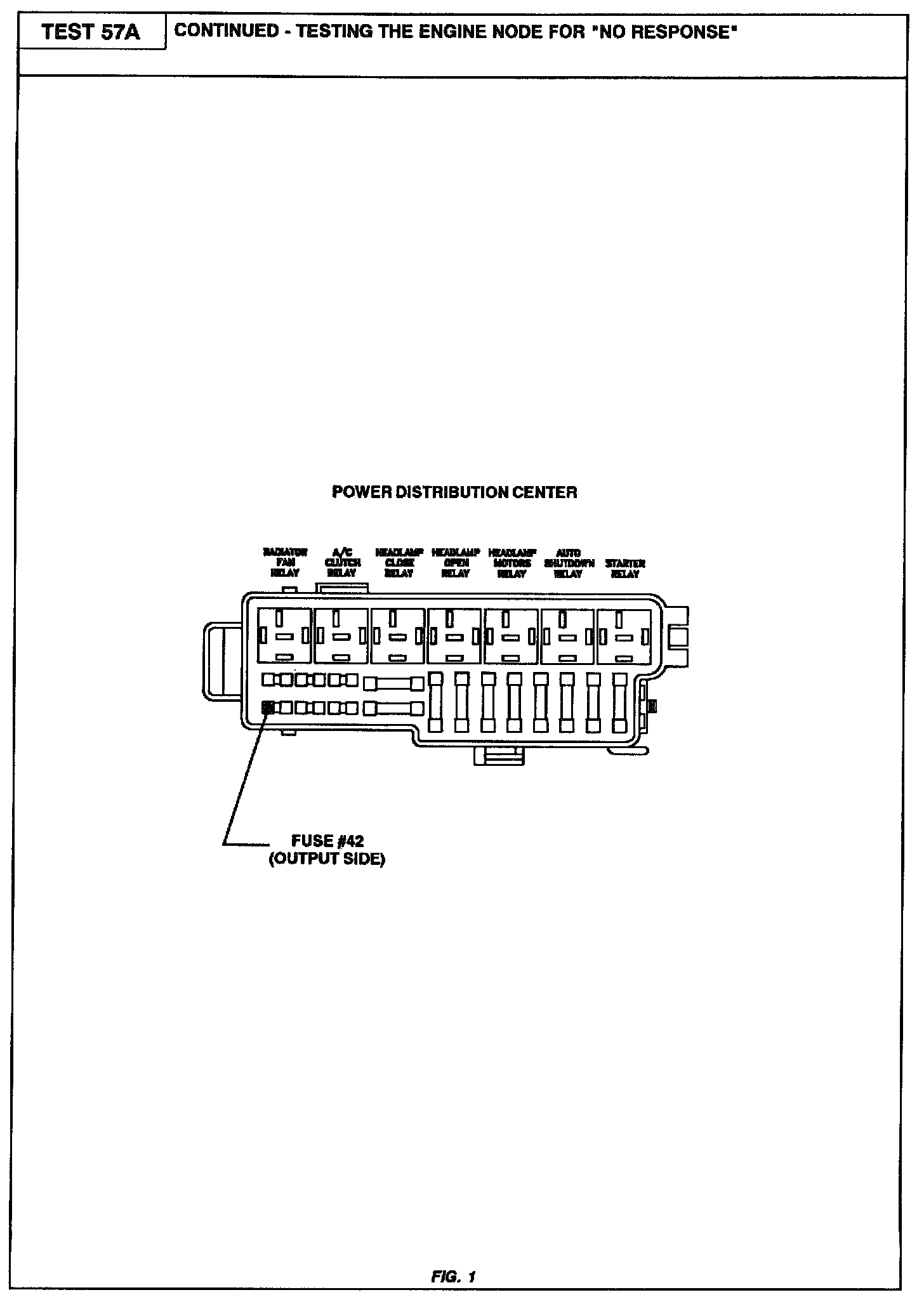

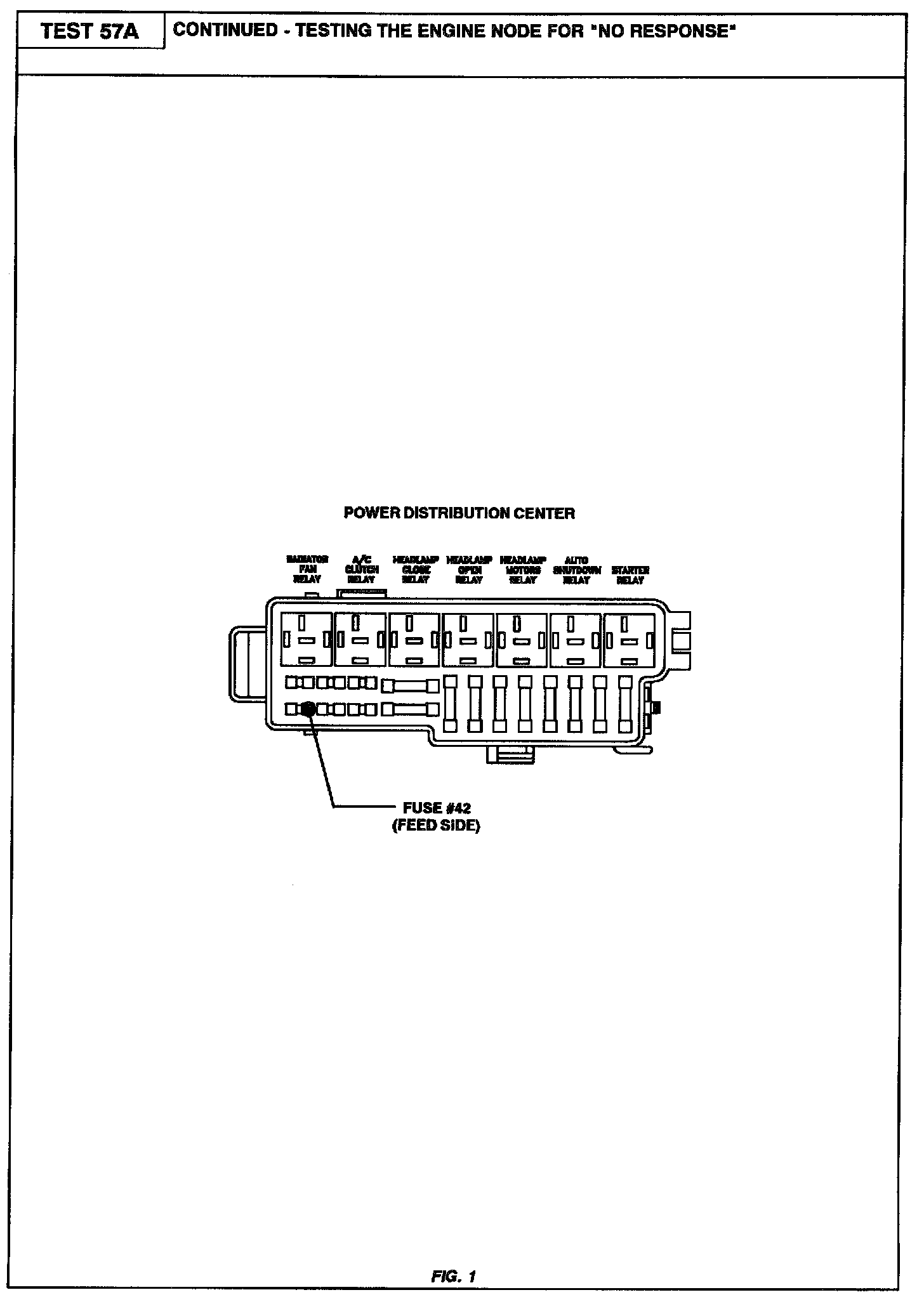

Part 2 of 3

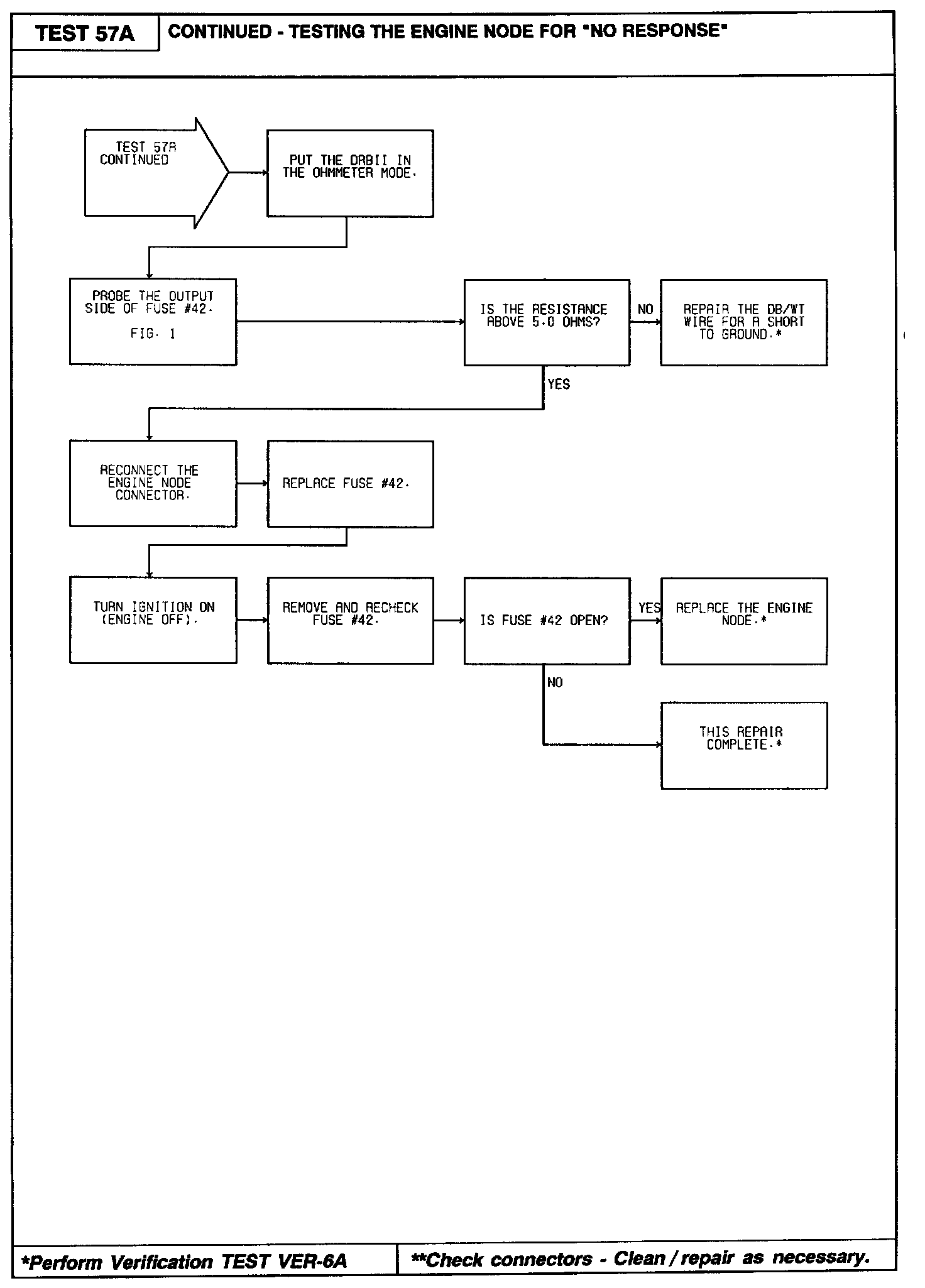

Part 3 of 3
