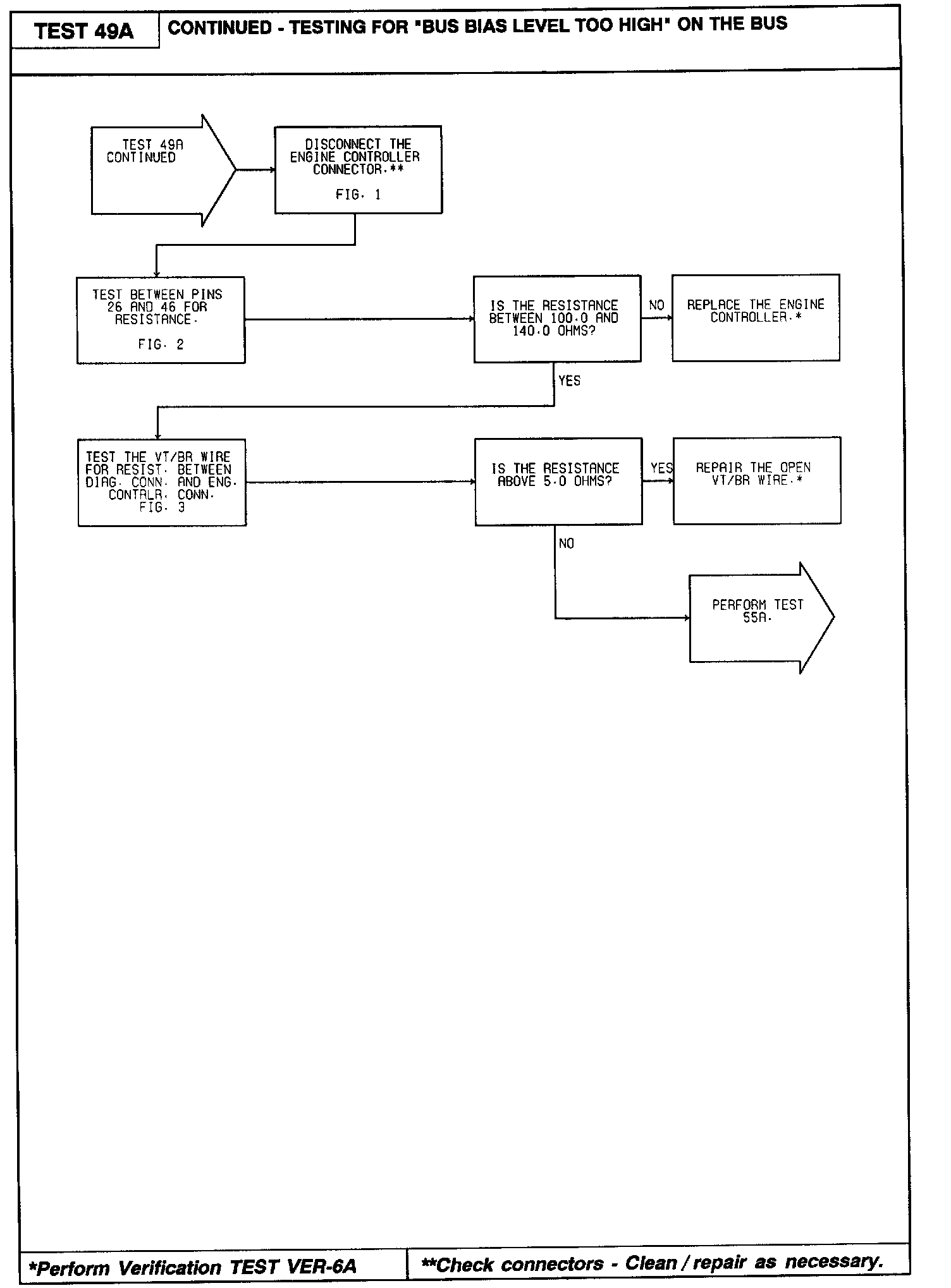

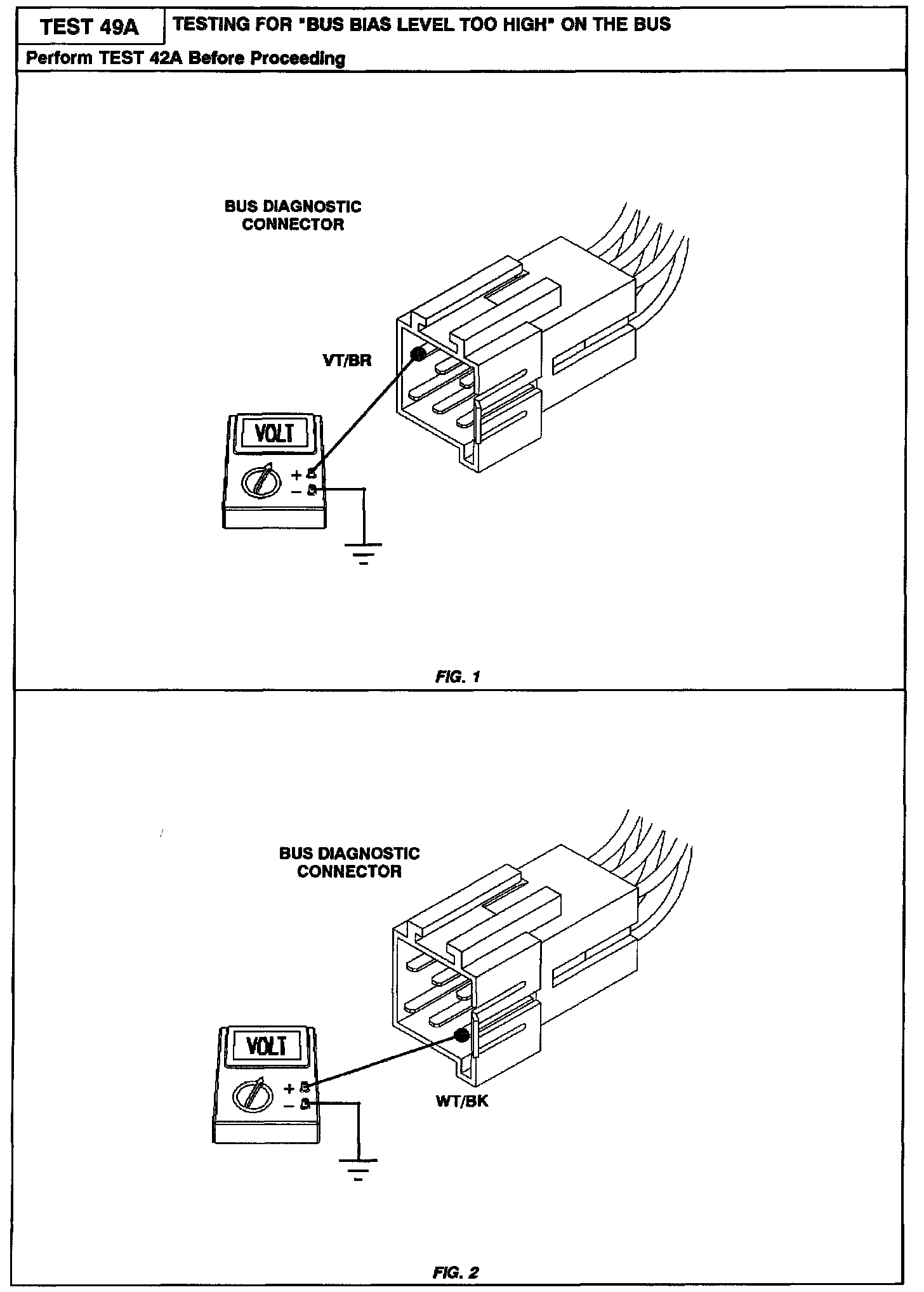

49A Testing For Bus Bias Level Too High on the Bus







Part 1 of 3









Part 2 of 3









Part 3 of 3
