Home >> Chrysler >> 1992 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 48A Testing For Bus Bias Level Too Low on the Bus

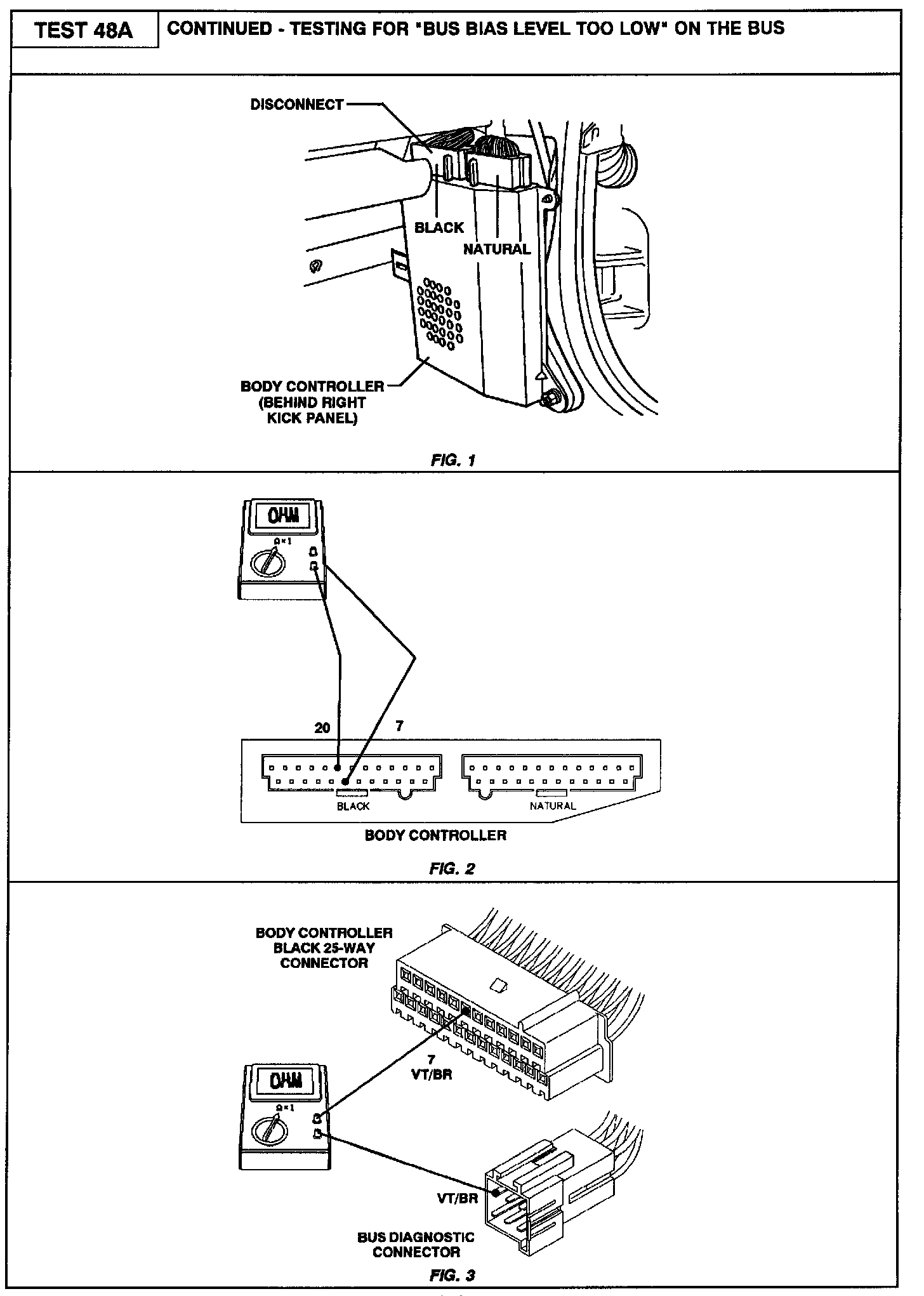

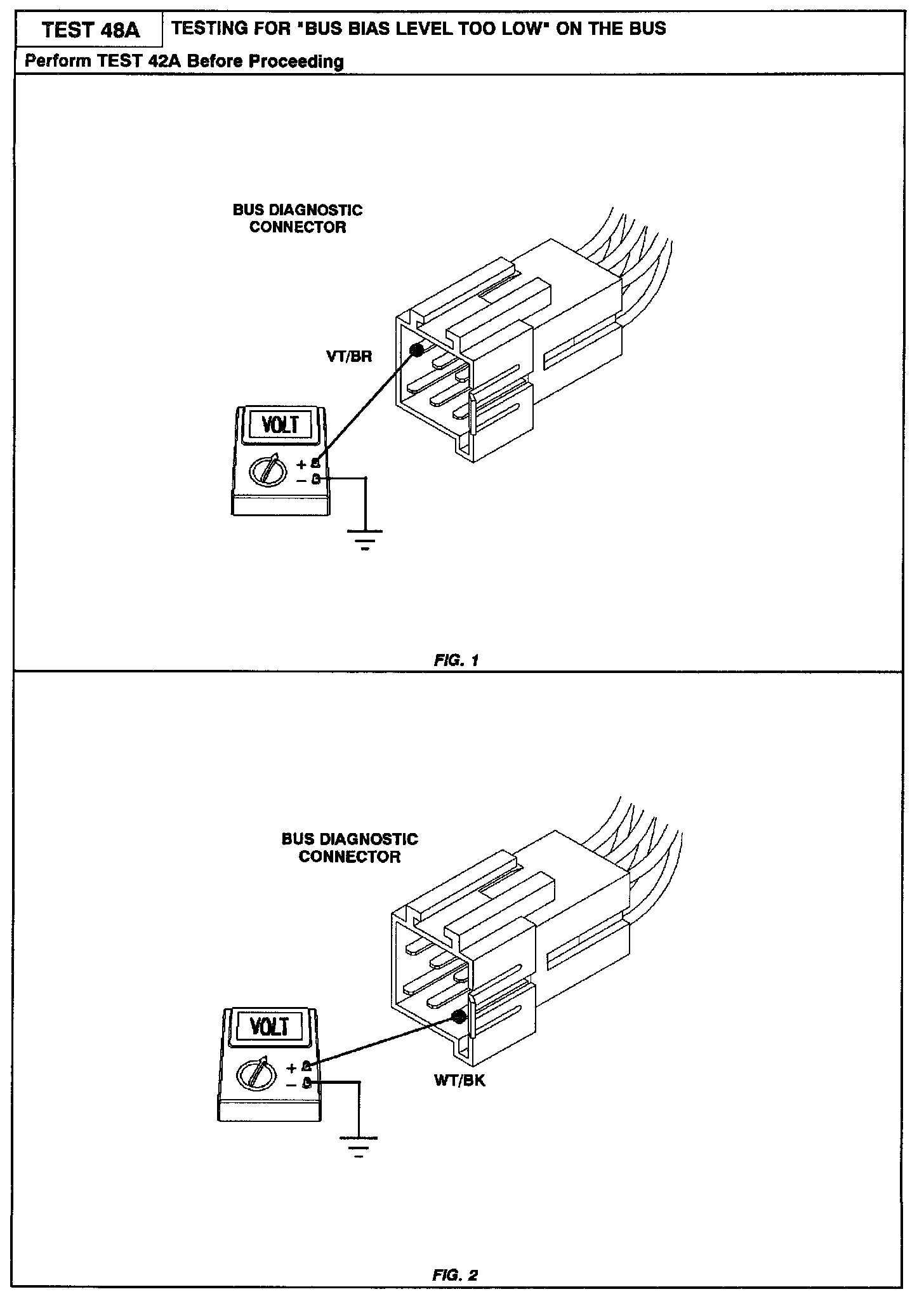

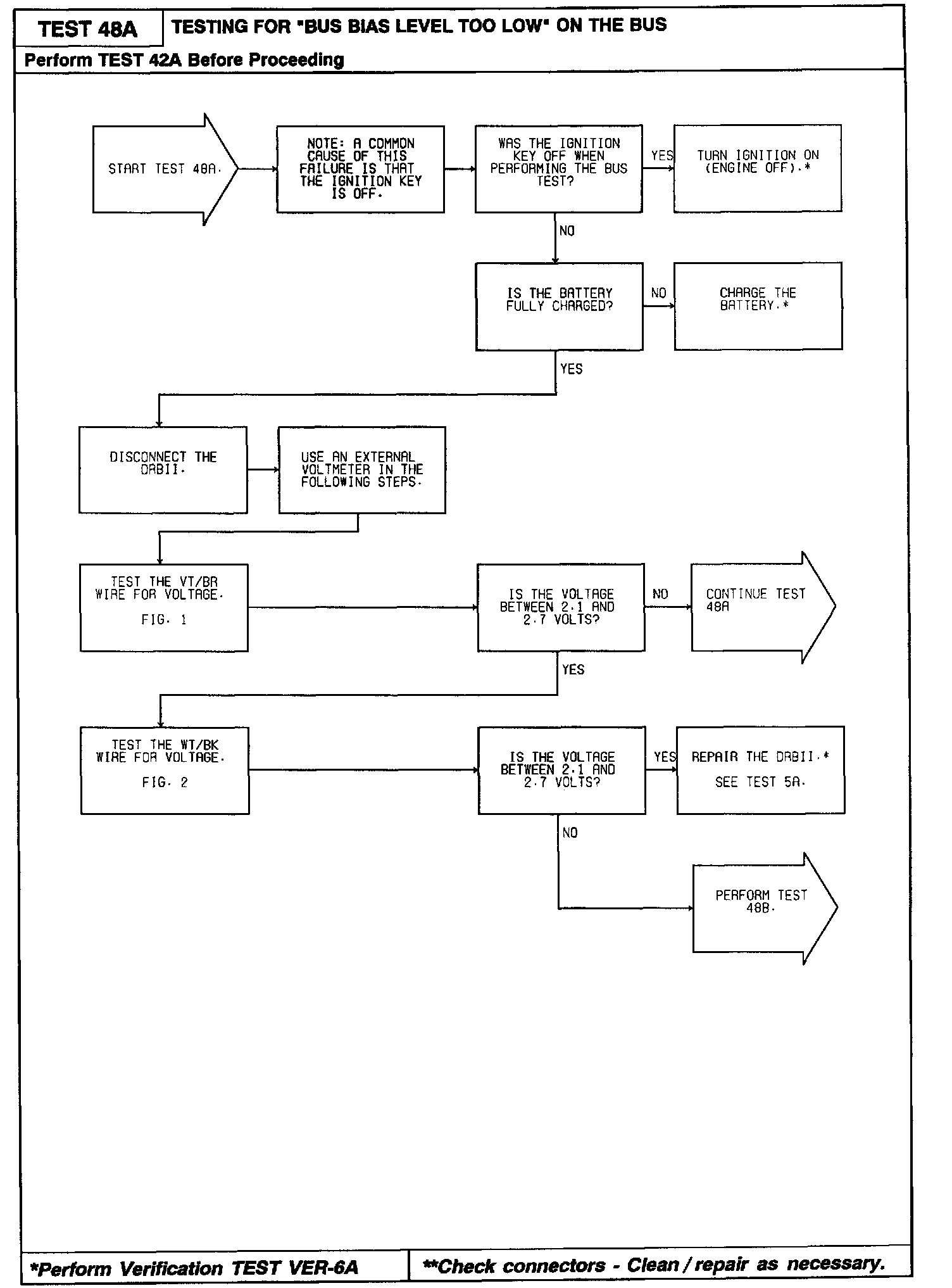

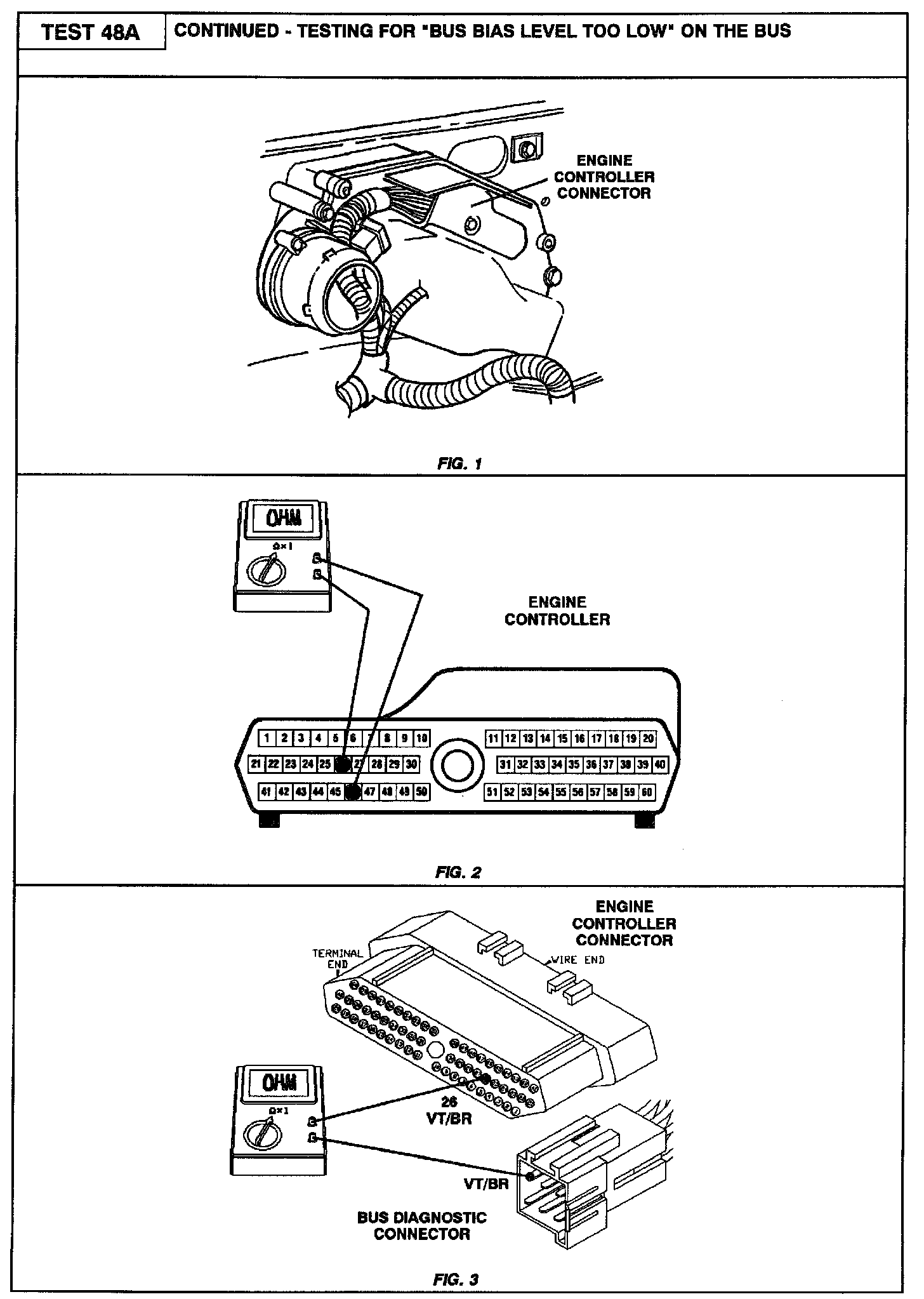

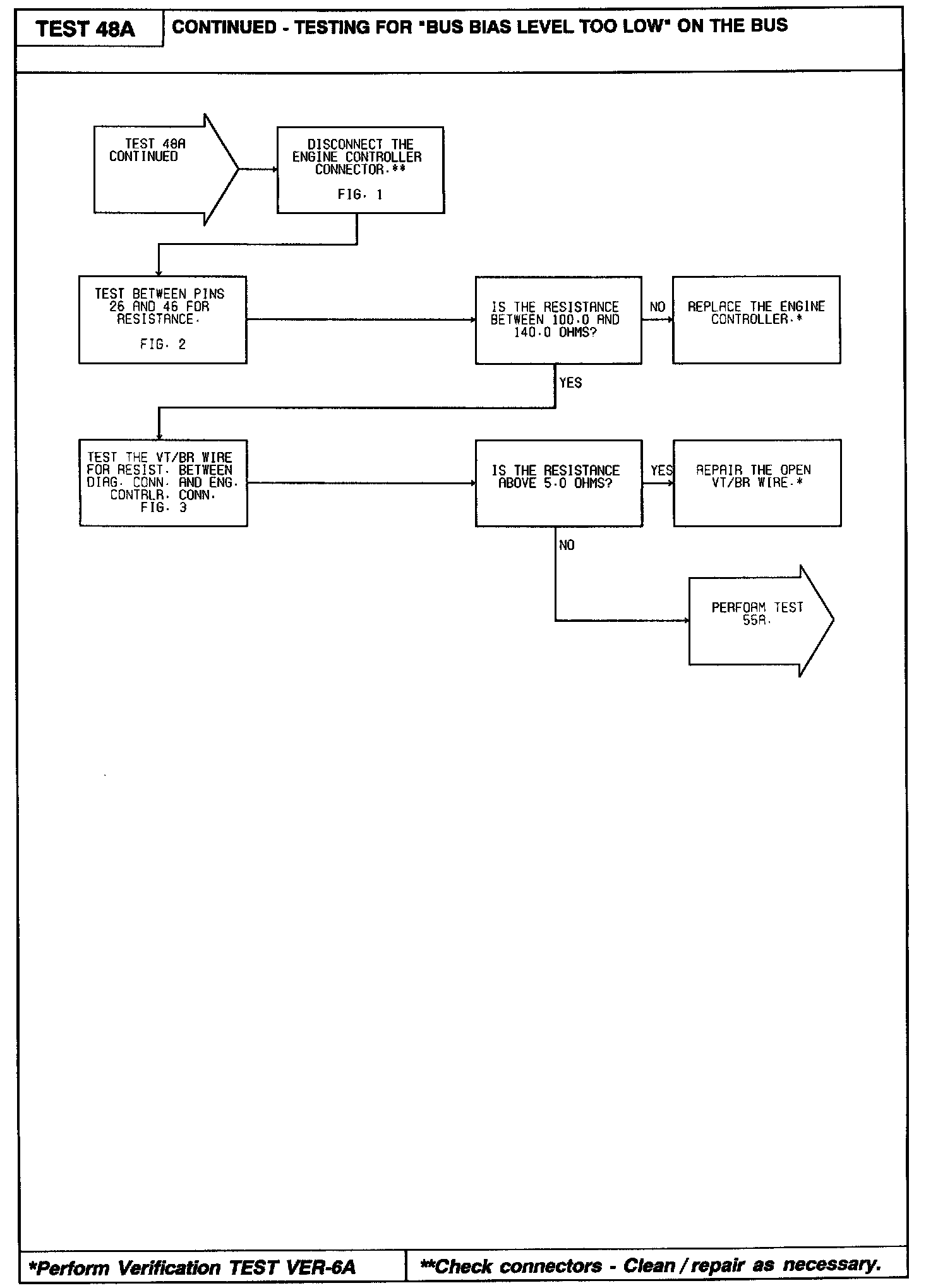

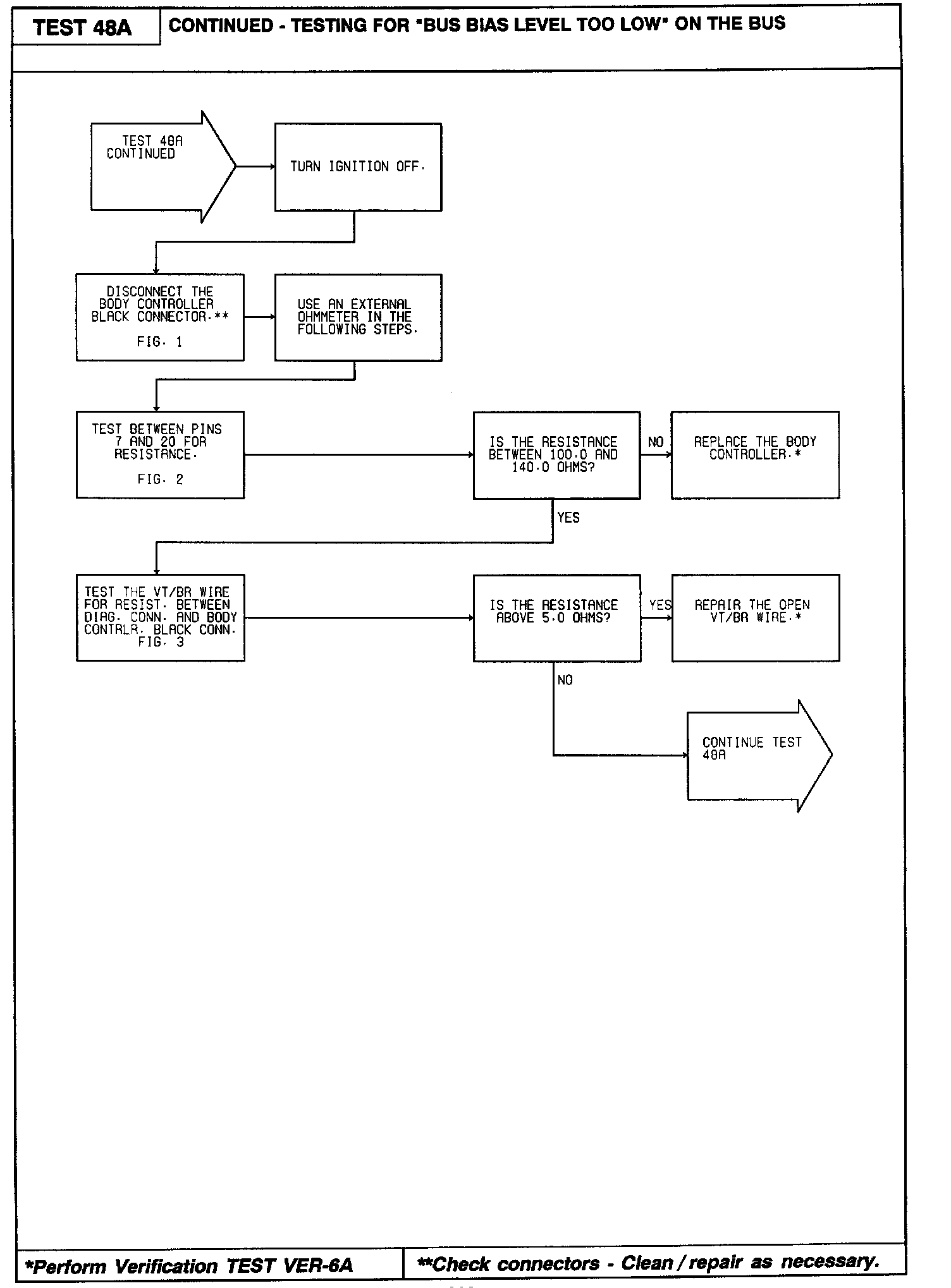

48A Testing For Bus Bias Level Too Low on the Bus








Part 1 of 3








Part 2 of 3









Part 3 of 3
