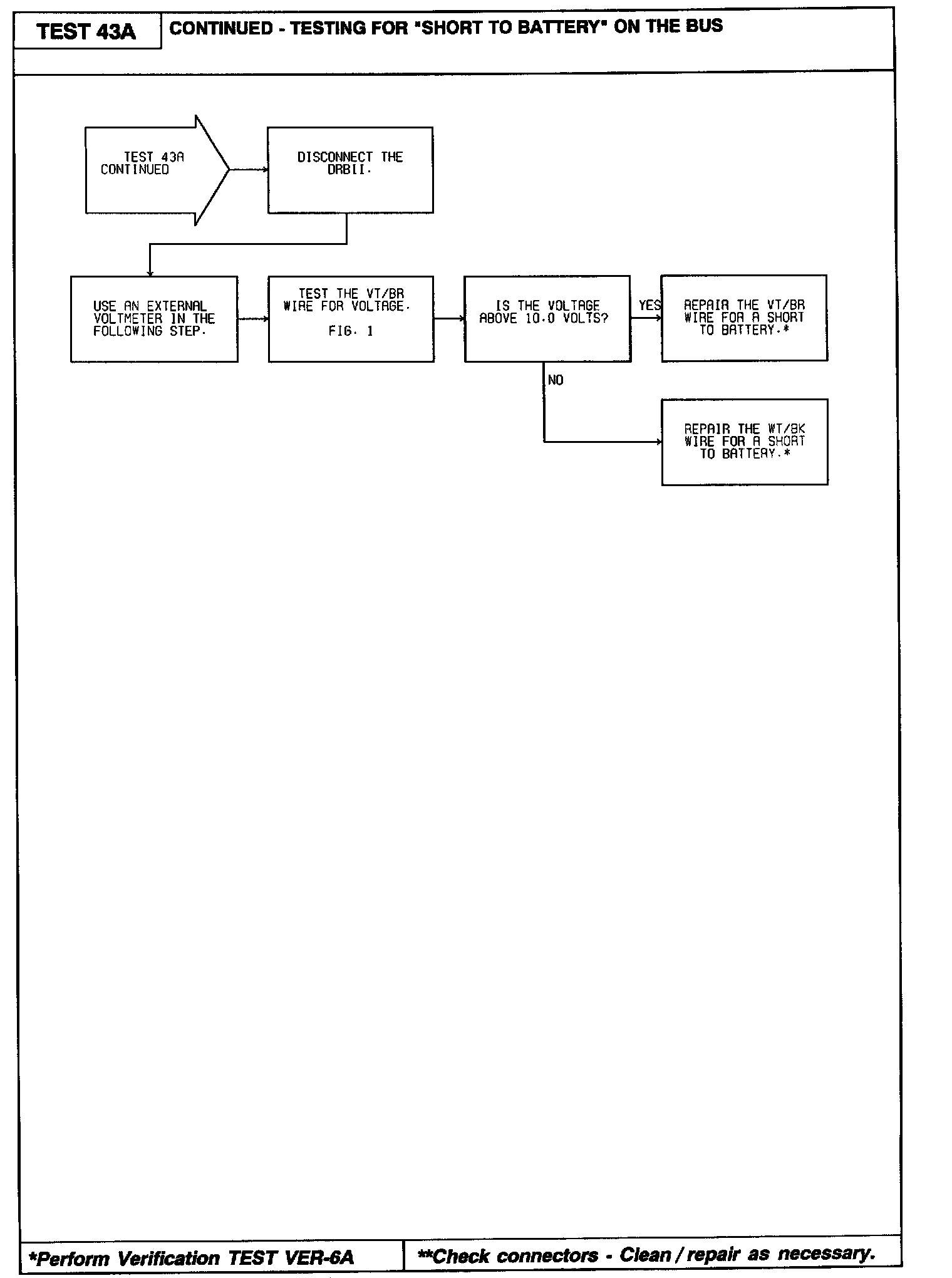

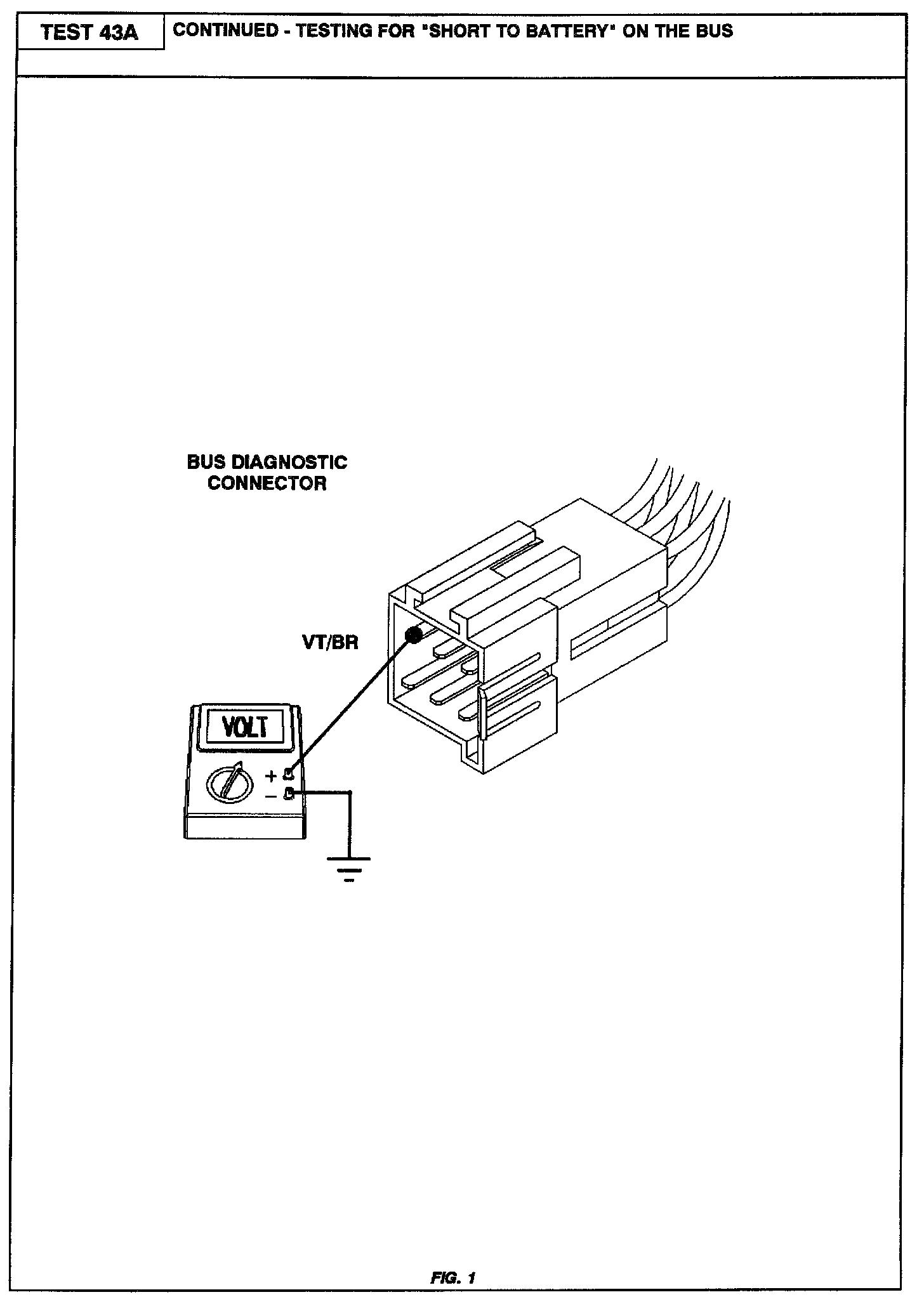

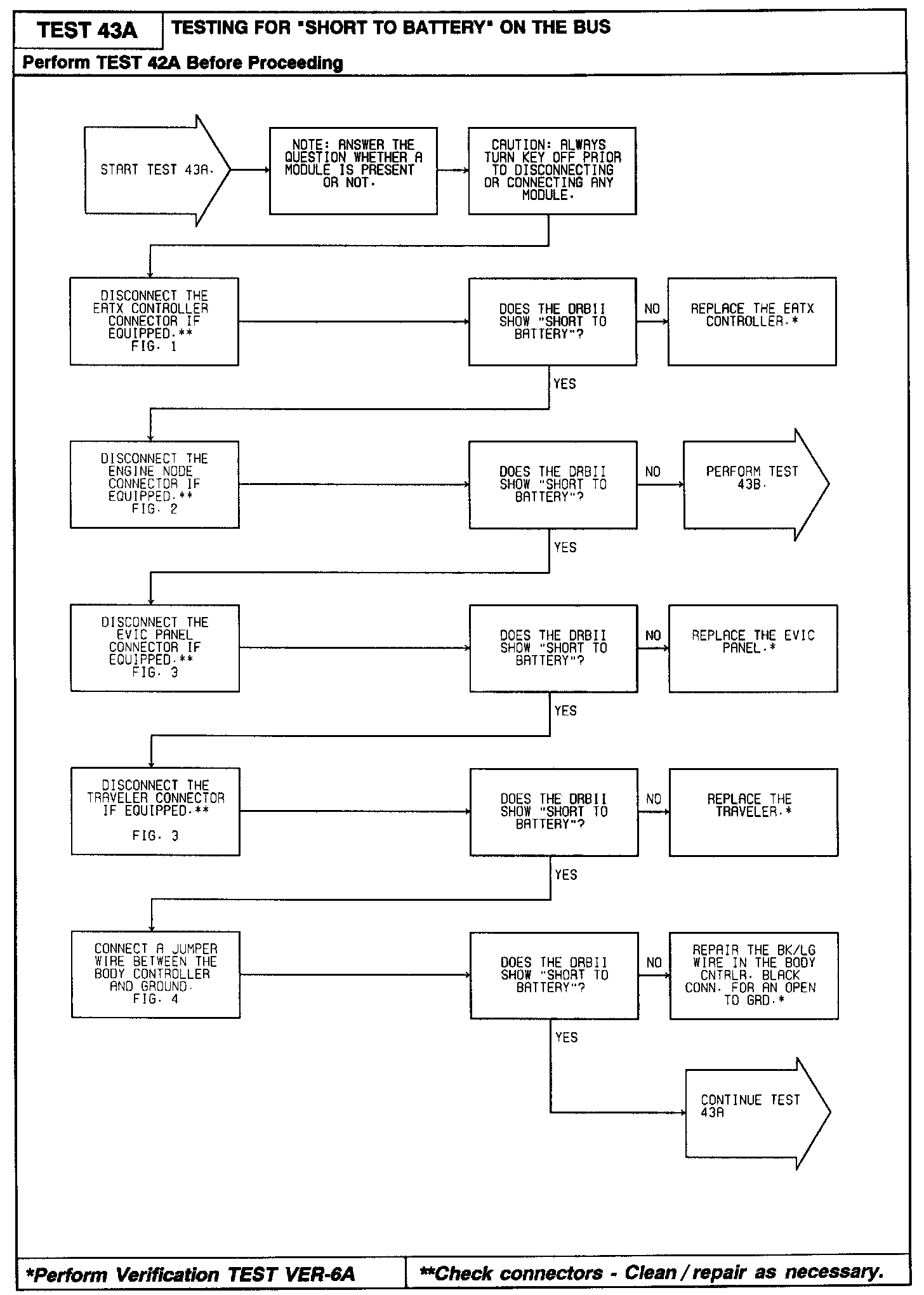

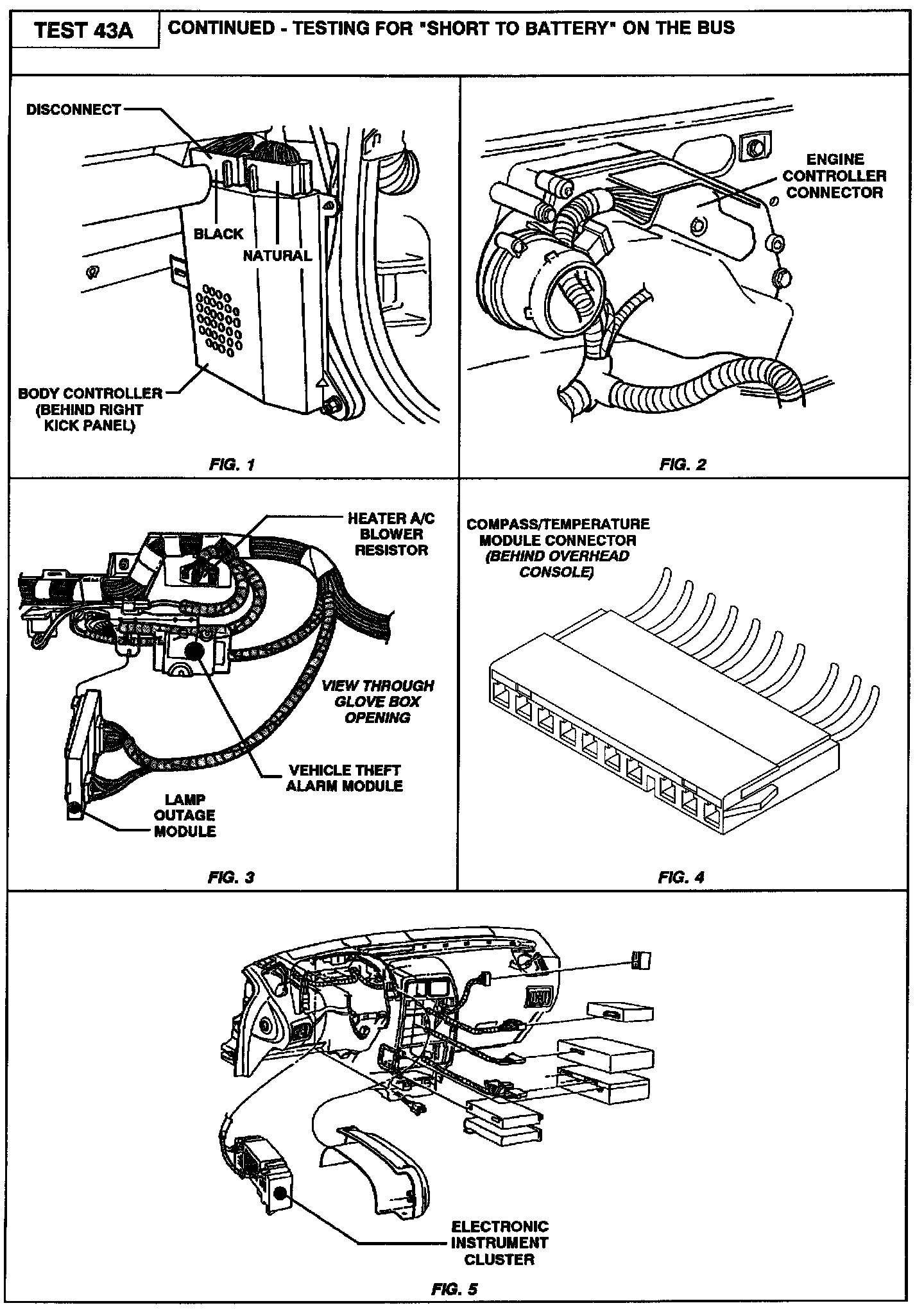

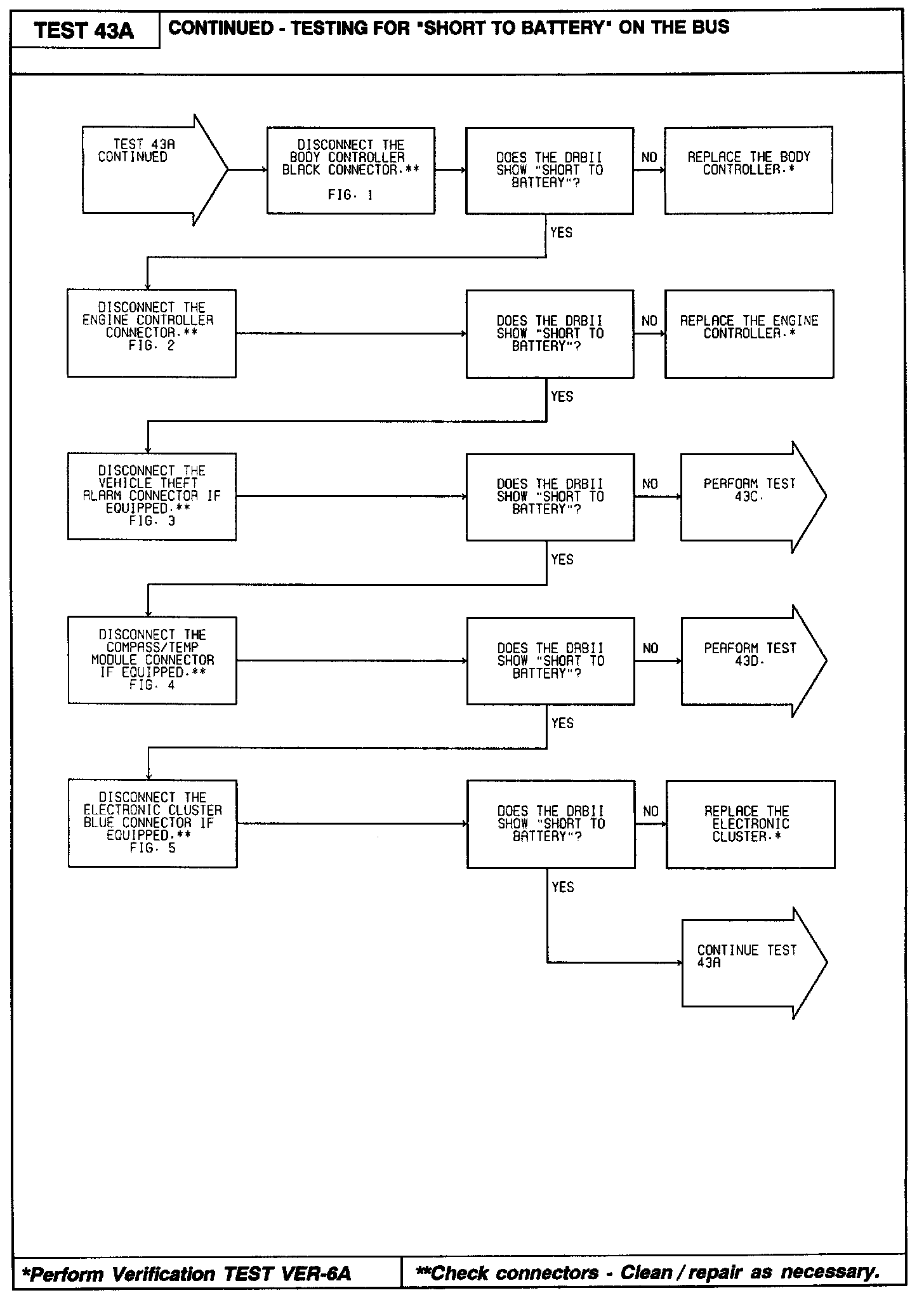

43A Testing For Short to Battery on the Bus







Part 1 of 3









Part 2 of 3









Part 3 of 3
