Home >> Chrysler >> 1992 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-9A Checking "O2 Sensor Stays Above Center" Fault

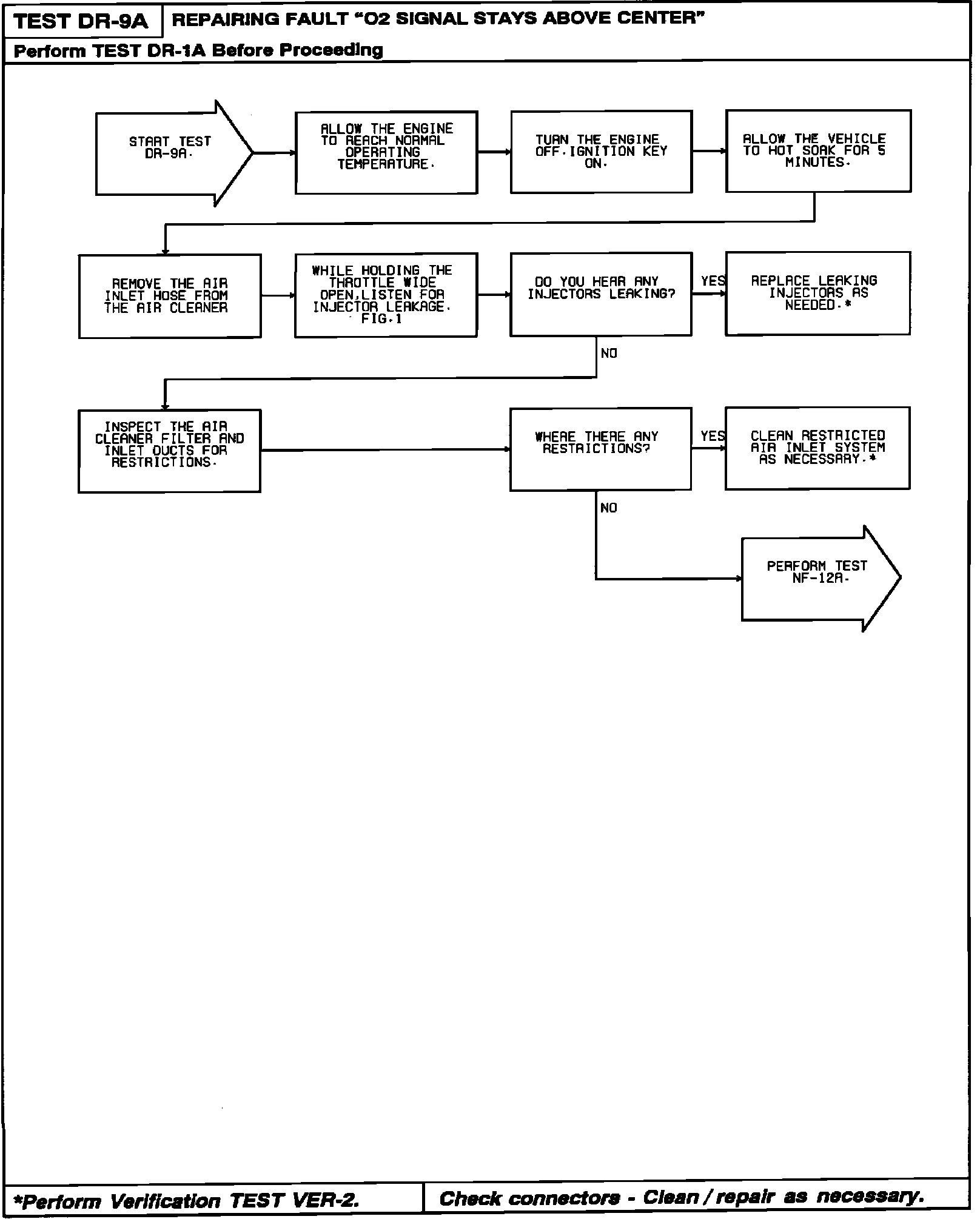

DR-9A Checking "O2 Sensor Stays Above Center" Fault

Repairing "O2 Signal Stays Above Center" Fault:
