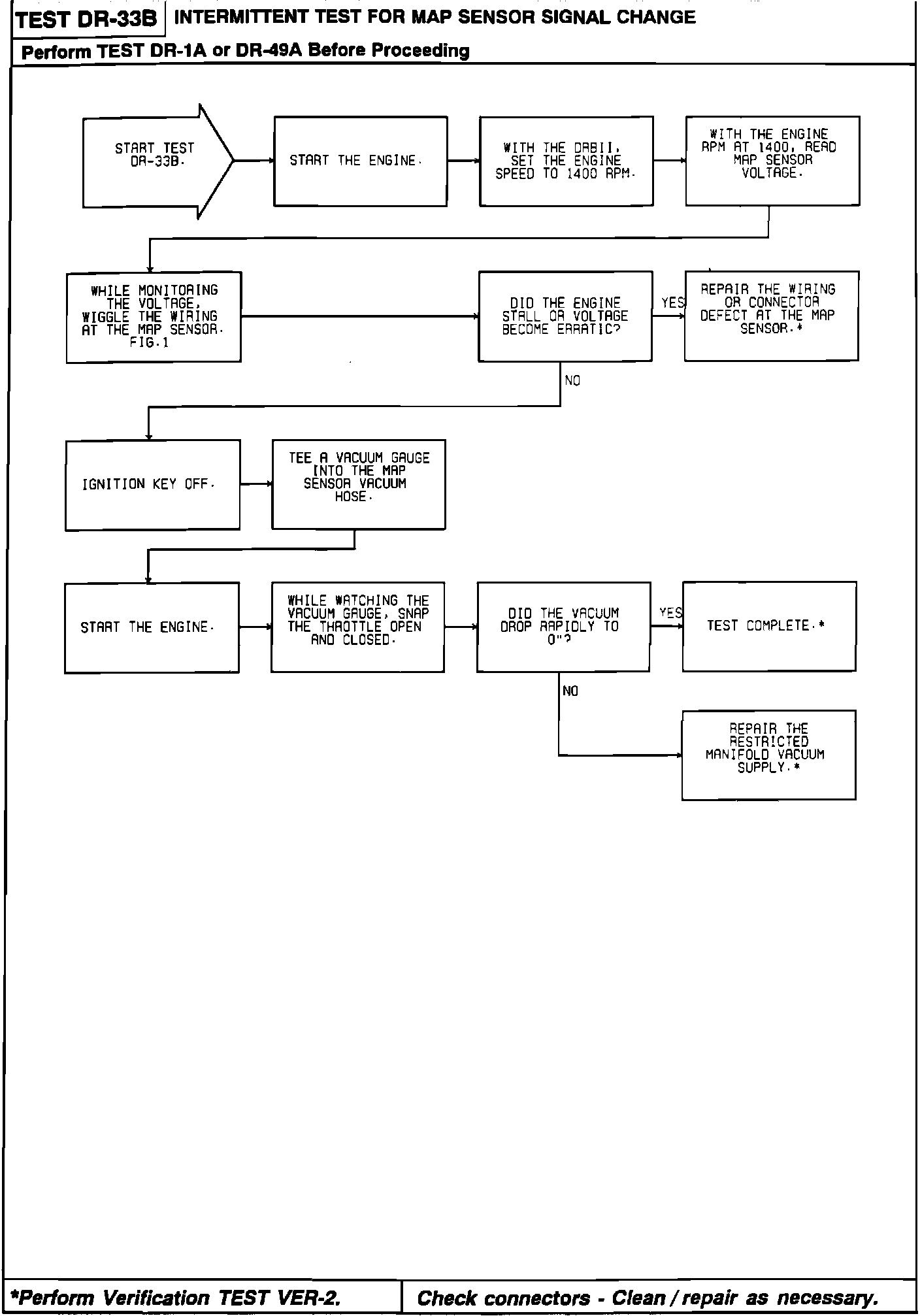

DR-33B Intermittent Test For MAP Sensor Signal Change
DR-33B Intermittent Test For MAP Sensor Signal Change
Intermittant Test For MAP Sensor Signal Change:
Intermittant Test For MAP Sensor Signal Change:
