Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antitheft and Alarm Systems
>>
26B Passenger Door Key Cylinder Switch (Unarm)
26B Passenger Door Key Cylinder Switch (Unarm)

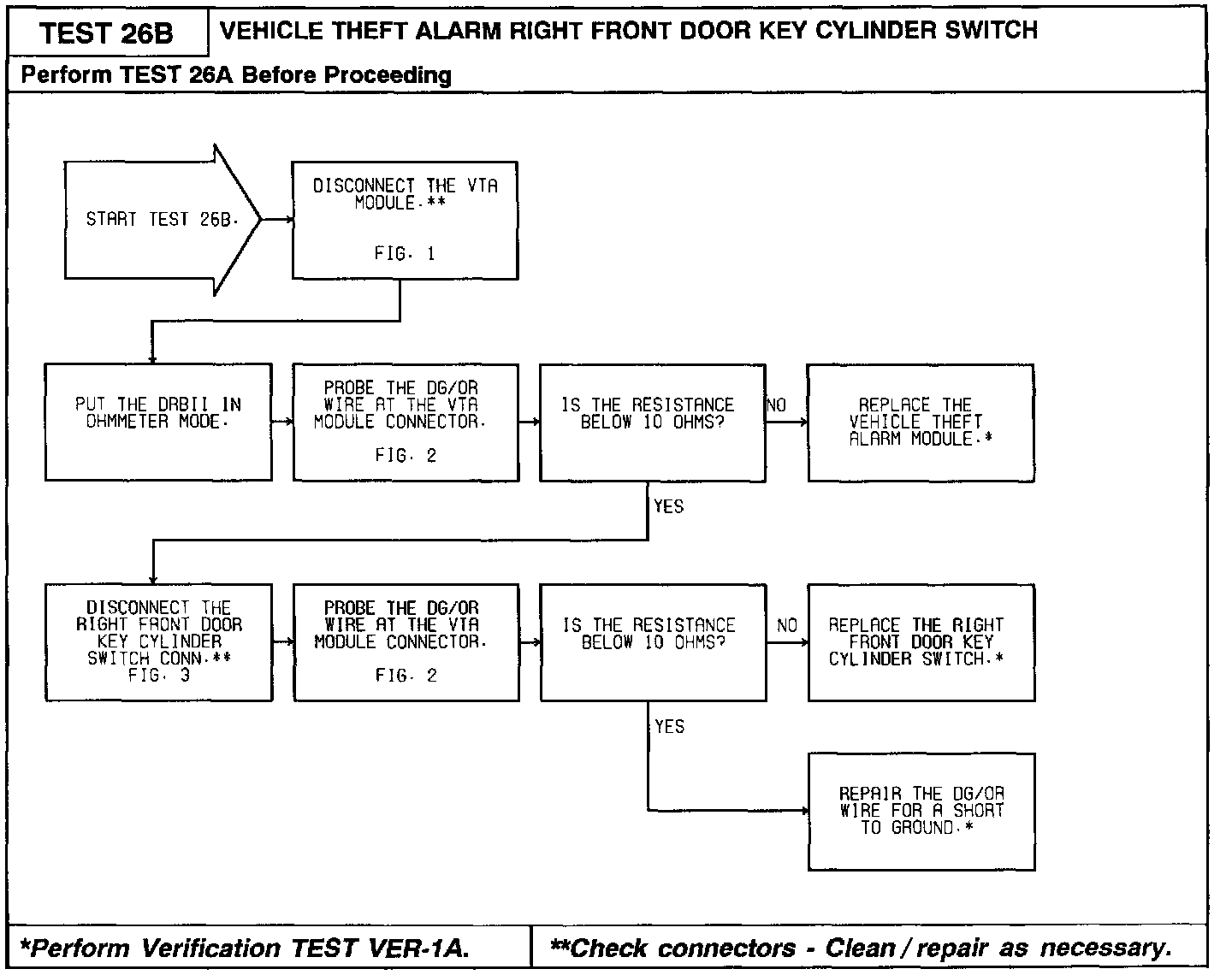

Diagnostic Chart:

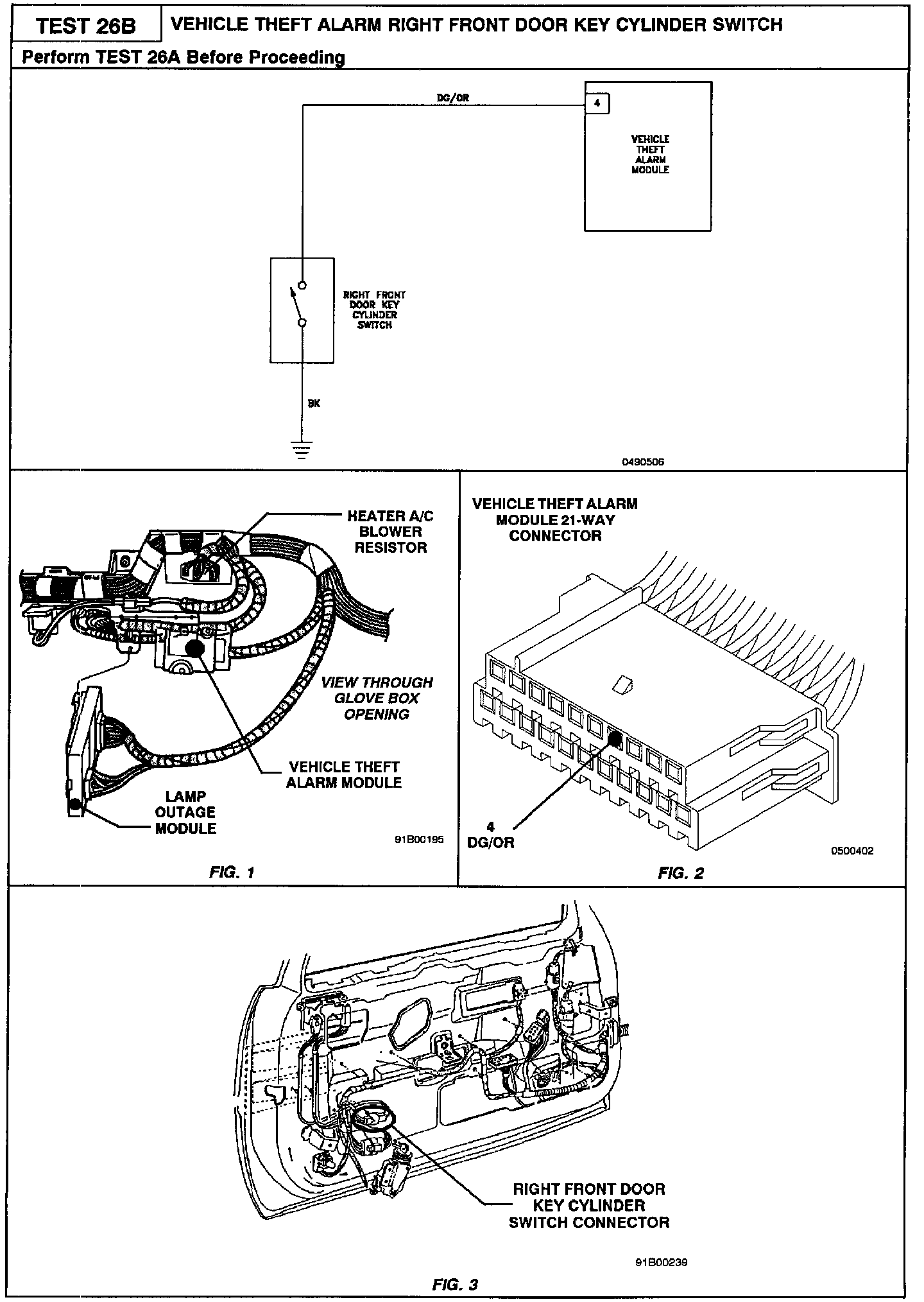

Related Images:
