Ignition Coil: Service and Repair

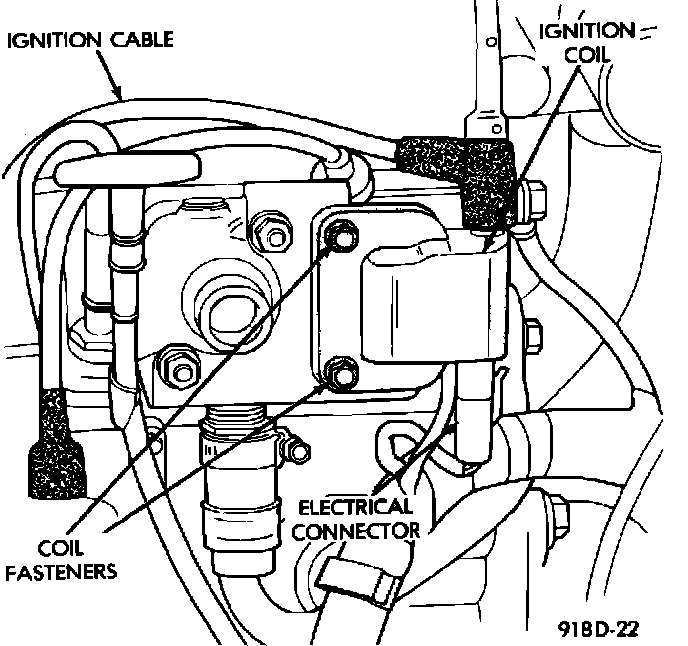

Coil And Fasteners:

Removal

1. Disconnect coil to distributor ignition cable.
2. Disconnect coil wiring harness connector.
3. Remove ignition coil to bracket screws.

Installation

1. Install ignition coil in bracket. Torque screws to 85 lb-in (9.5 Nm).
2. Connect wiring harness connector.
3. Connect coil to distributor ignition cable.
