Symptom Related Diagnostic Procedures

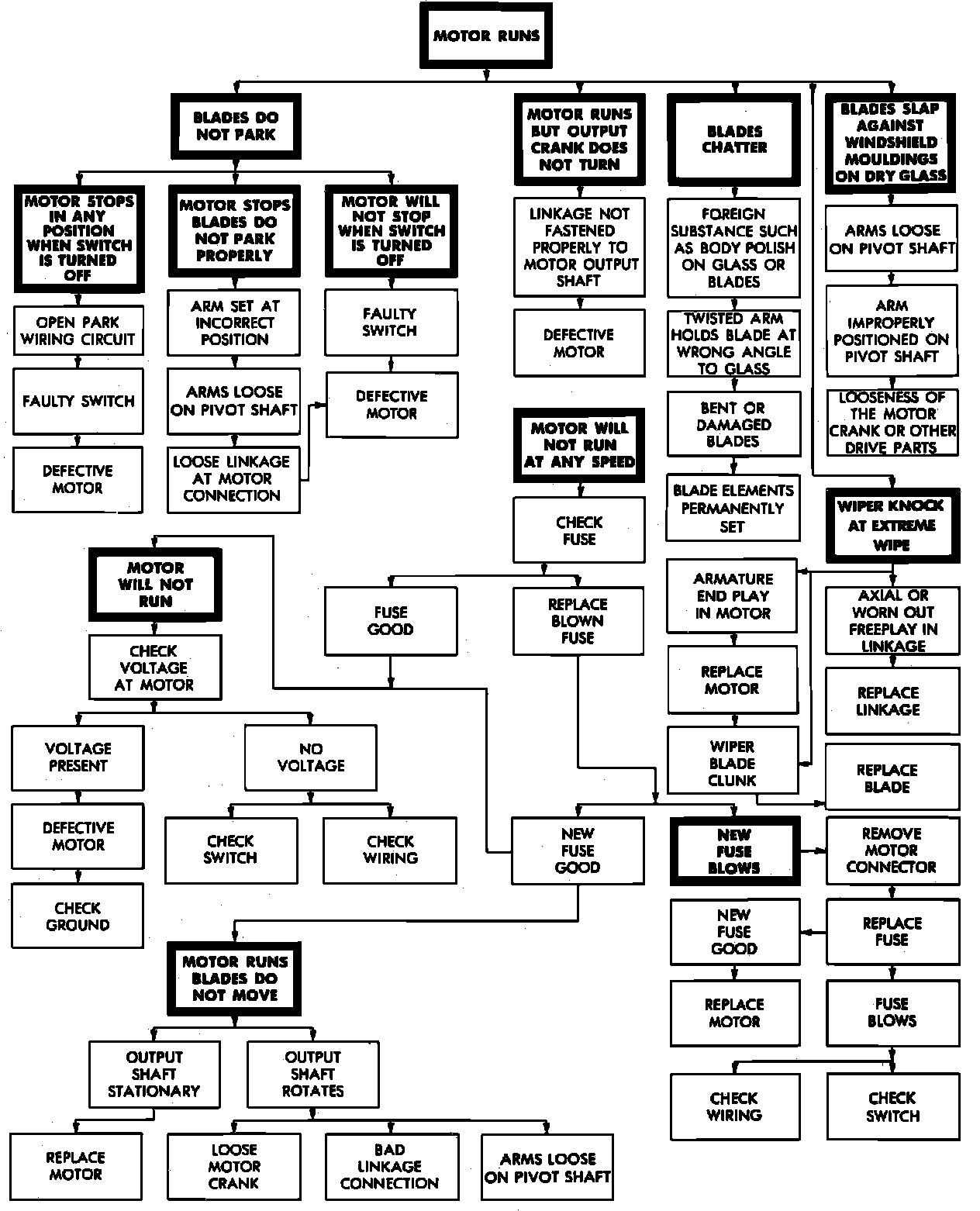

Fig. 18 Wiper System Troubleshooting Chart:





Fig. 19 Washer System Troubleshooting Chart:
