Wiper Switch: Testing and Inspection

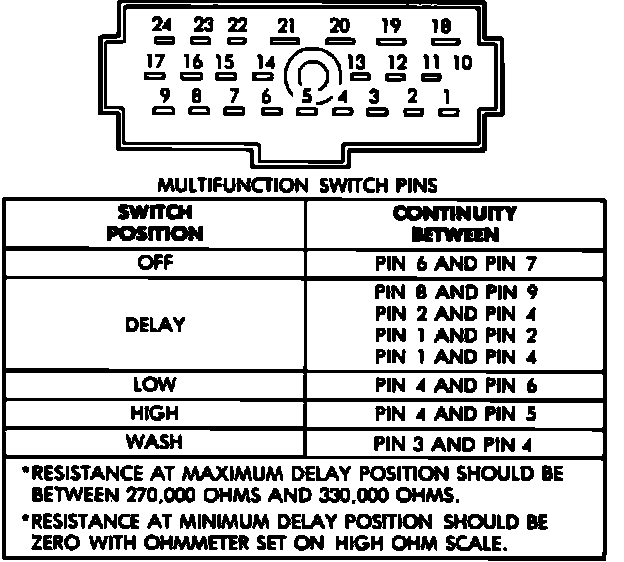

Fig. 22 Wiper Switch Connecter Continuity Check:

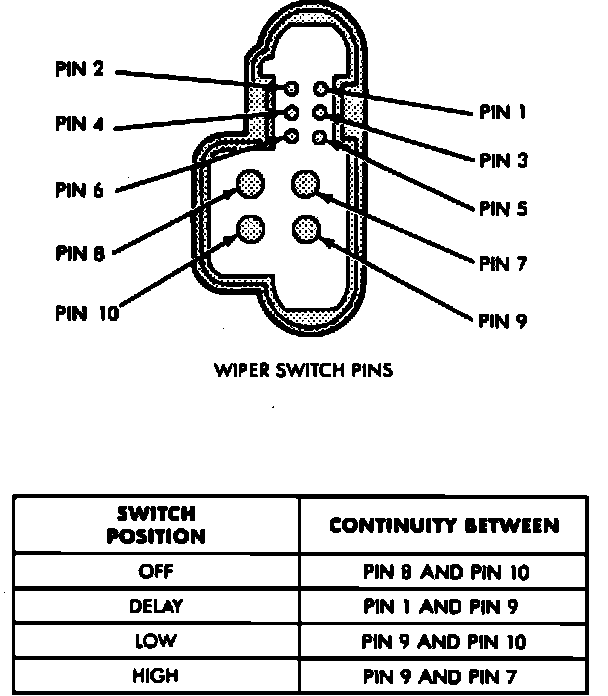

Fig. 23 Wiper Switch Connecter Continuity Check:





Disconnect wipe switch from body wiring harness in steering column. Test for continuity between terminals as shown.
