Seat Belt: Service and Repair

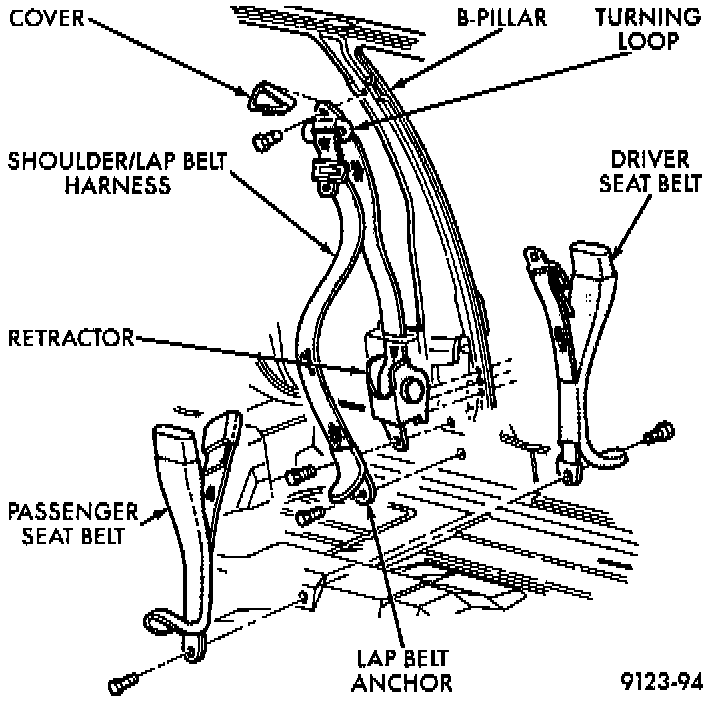

Front Seat Belts:

FRONT SEAT BELTS
Outboard Shoulder Harness/Lap Belt
1. Remove B-pillar trim panel.
2. Remove bolt holding seat belt retractor to B-pillar.
3. Separate retractor from vehicle.
4. Reverse the preceding operation for installation.

Inboard Buckle/Center Occupant Belts

NOTE: Vehicles equipped with front bucket seats with center console do not have center occupant belts.

1. Remove bolt holding inboard buckle/center occupant belt to floor.
2. Disconnect seat belt sensor wire connector.
3. Separate buckle/belt assembly from vehicle.
4. Reverse the preceding operation for installation.

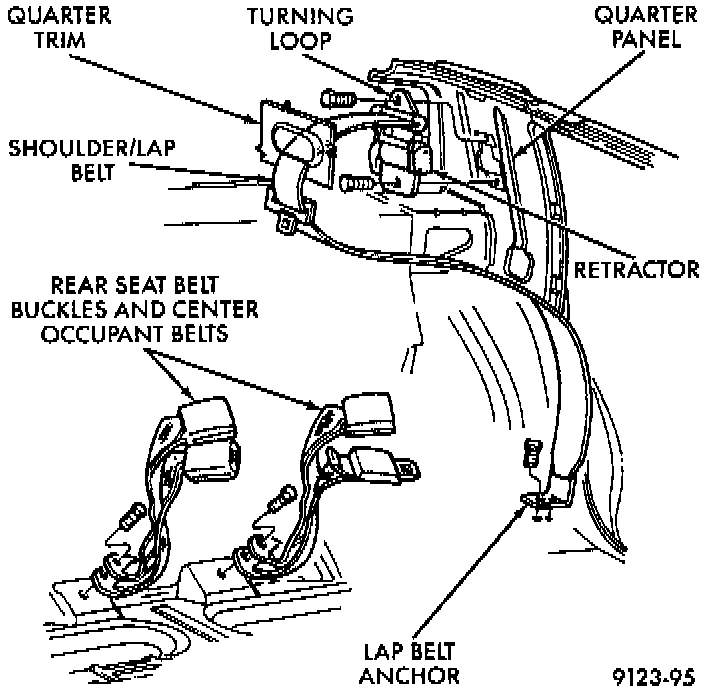

Rear Seat Belts:

REAR SEAT BELTS
Outboard Shoulder Harness/Lap Belt
1. Remove quarter trim panel.
2. Remove bolt holding lap belt to floor at wheelhouse kickup.
3. Remove bolt holding turning loop to inner quarter panel.
4. Remove bolt holding seat belt retractor to quarter panel.
5. Reverse the preceding operation for installation.

Inboard Buckle/Center Occupant Belts
1. Remove rear seat cushion.
2. Remove bolt holding inboard buckle/center occupant belt to floor.
3. Separate buckle/belt assembly from vehicle.
4. Reverse the preceding operation for installation.
