Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Wiring Diagrams >> With Electronic Instrument Cluster

With Electronic Instrument Cluster

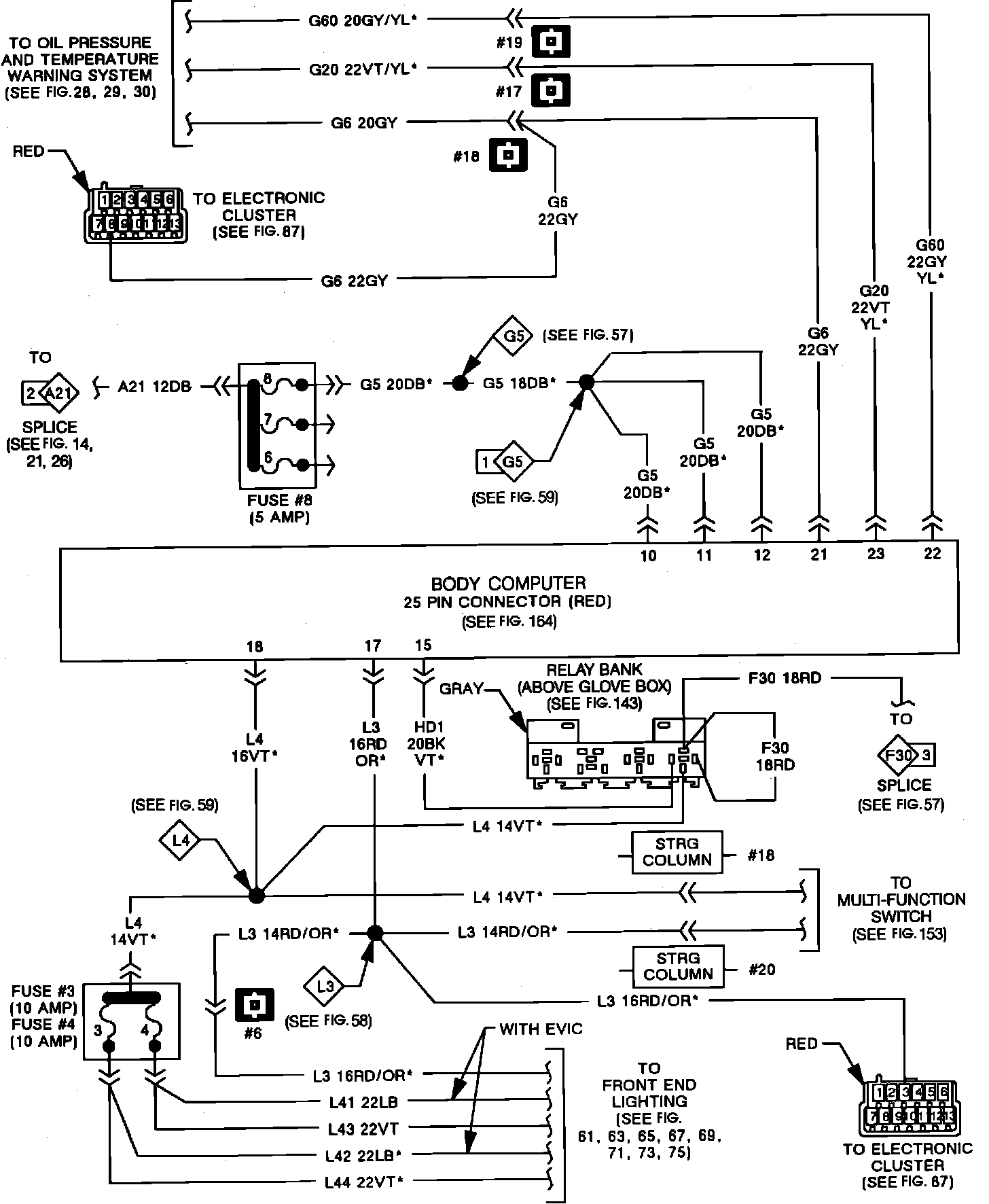

BCM (Electronic Cluster) Part 1 Of 4:

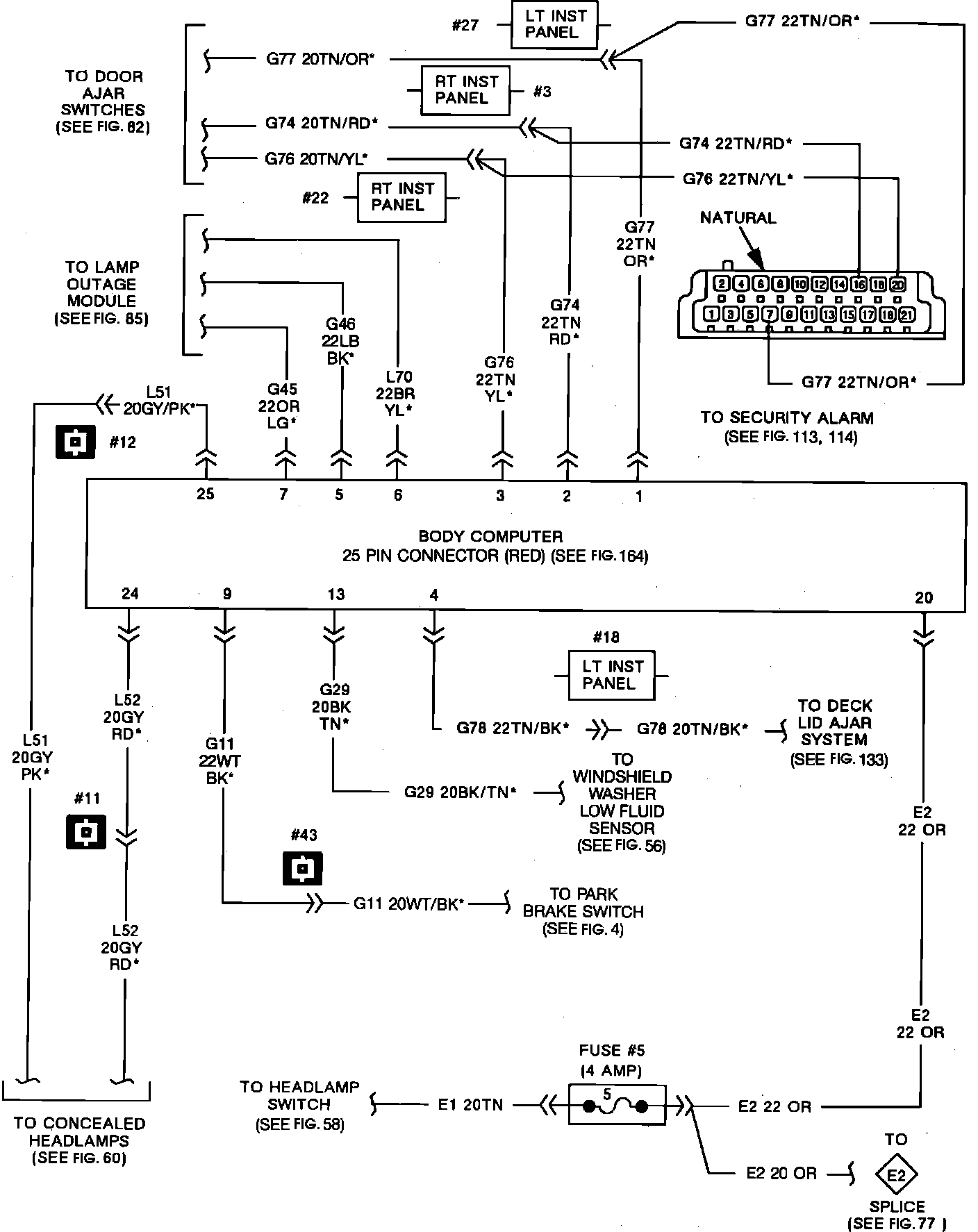

BCM (Electronic Cluster) Part 2 Of 4:

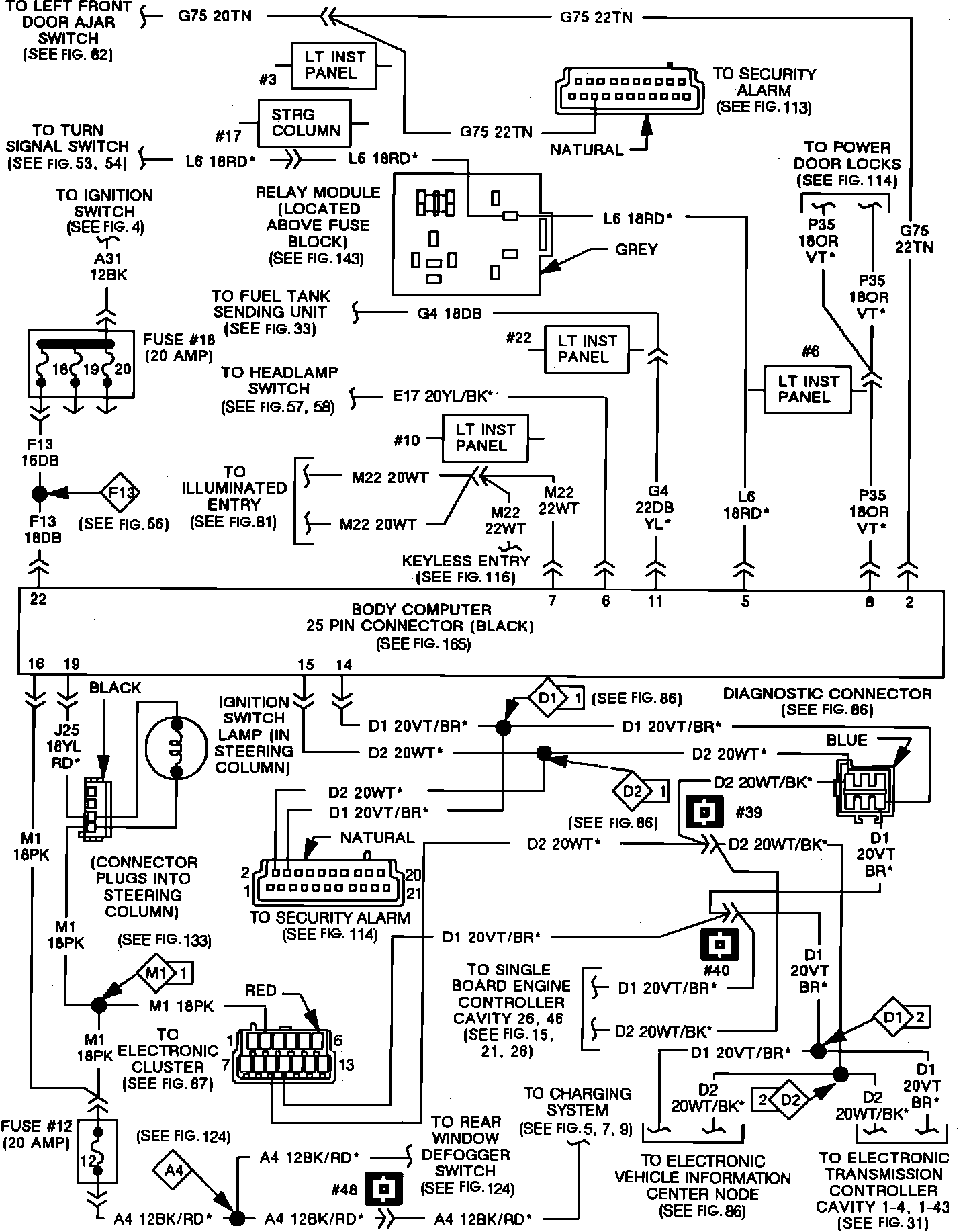

BCM (Electronic Cluster) Part 3 Of 4:

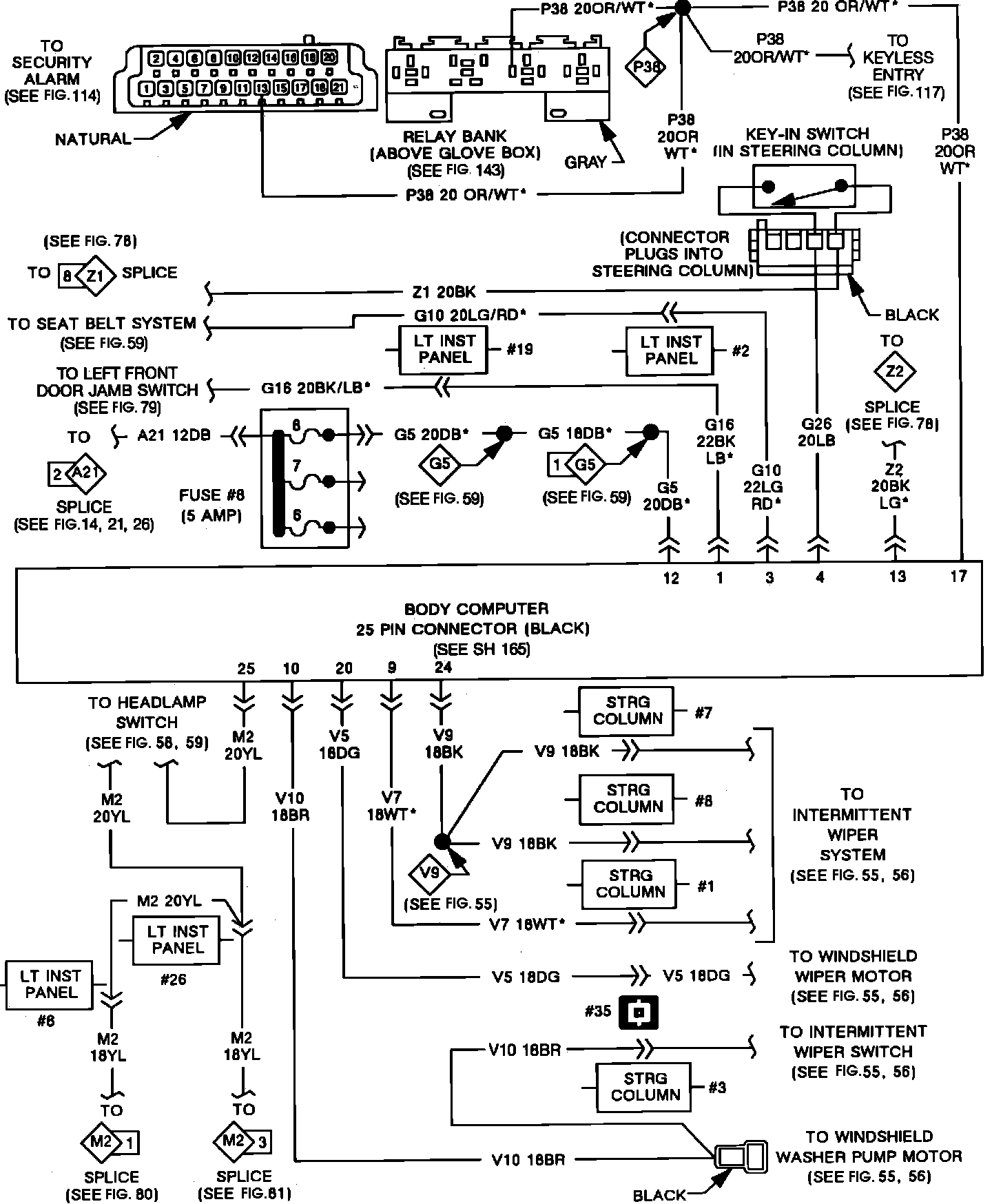

BCM (Electronic Cluster) Part 4 Of 4:
