Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> California >> Without Anti-Lock Brakes

Without Anti-Lock Brakes

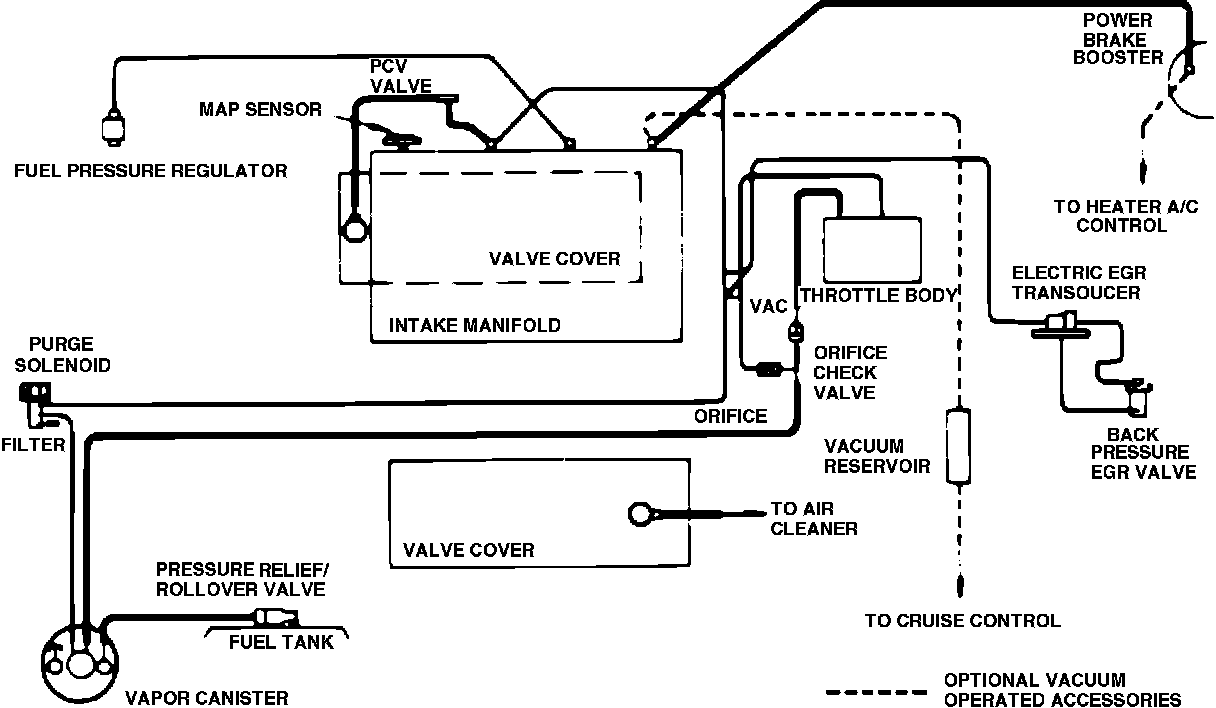

Vacuum and Vapor Hose Routing:
