New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-9A Checking Power to Injectors & DIS
NS-9A Checking Power to Injectors & DIS

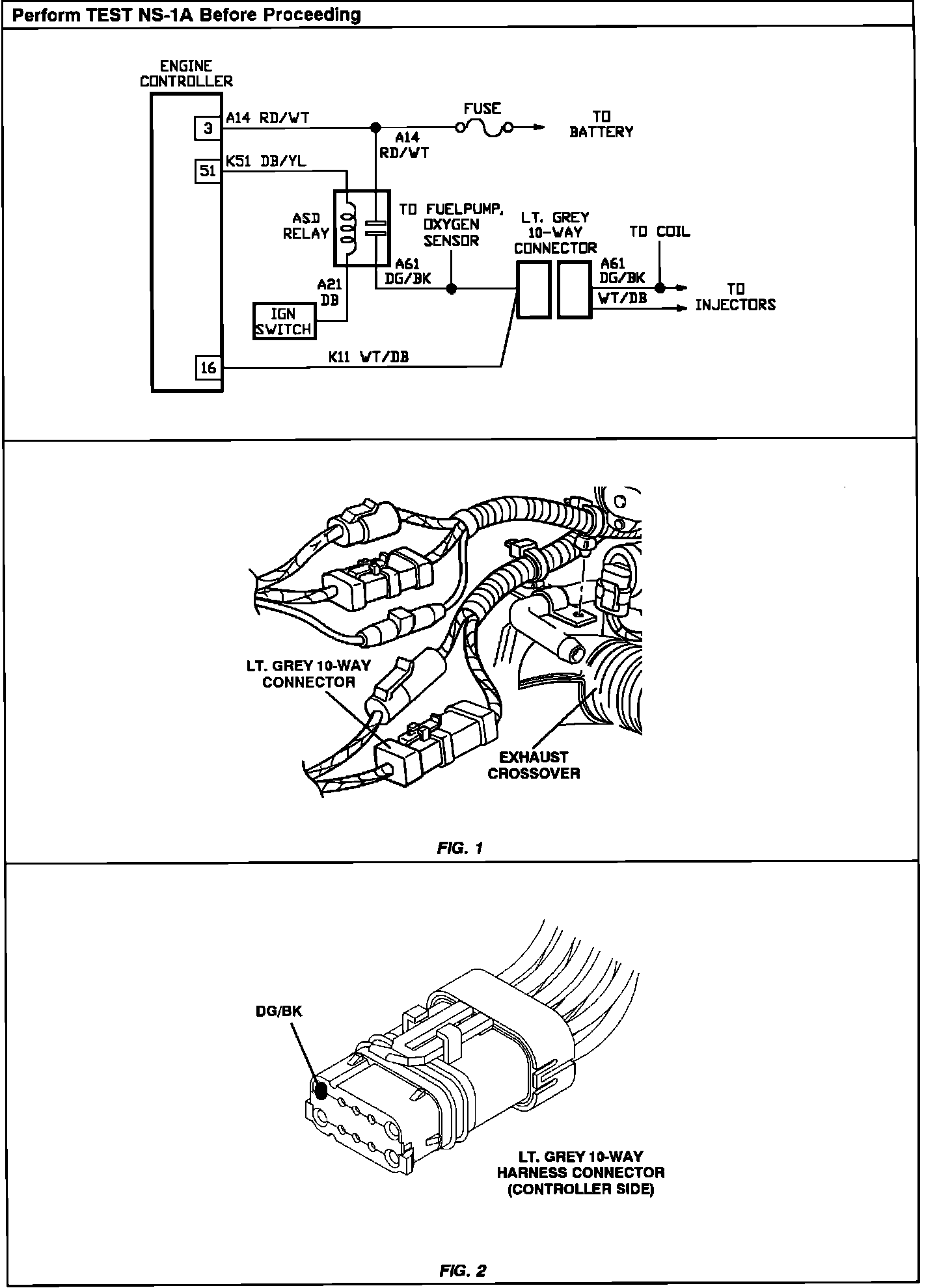

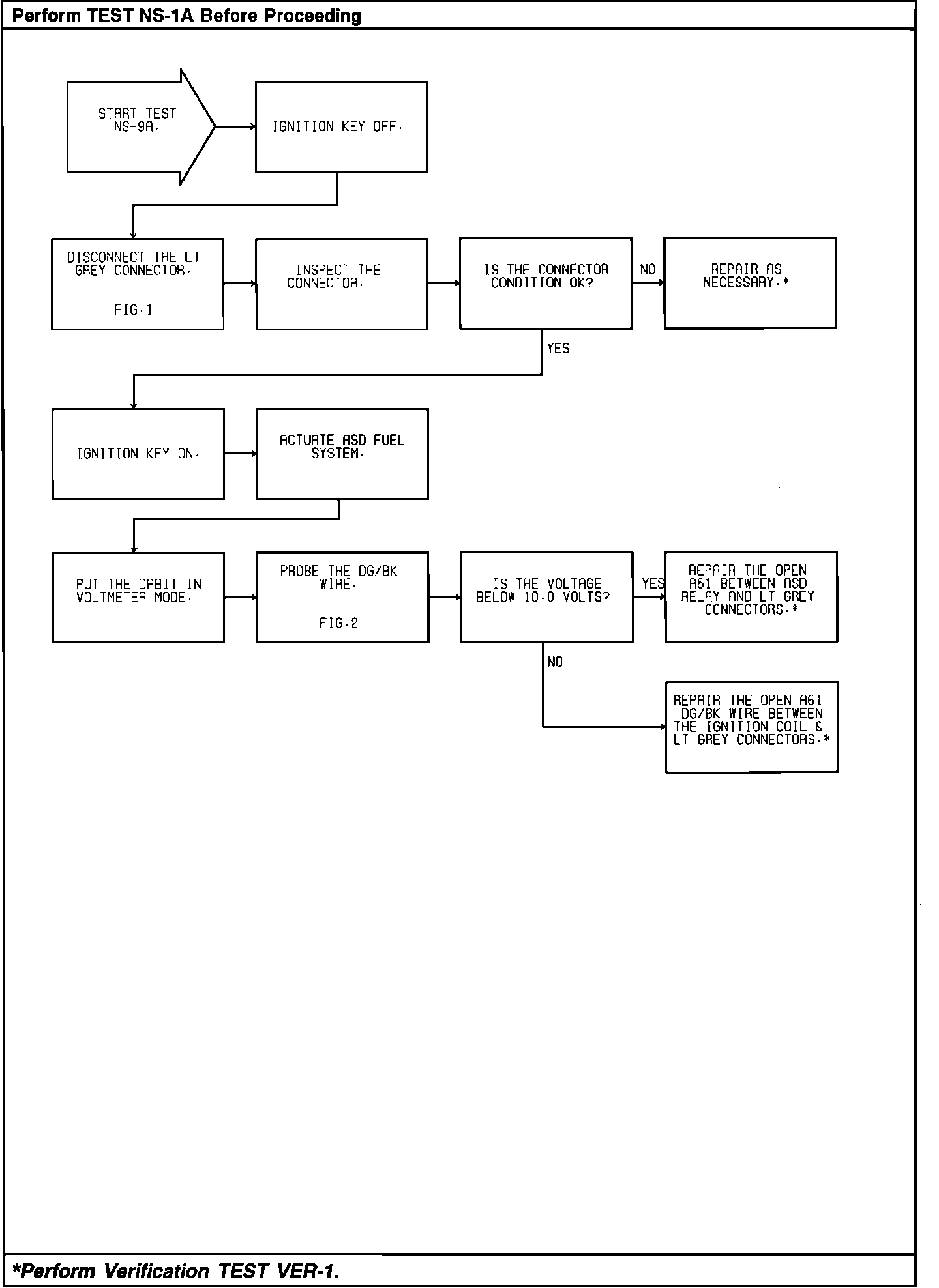

Test NS-9A - "Ignition Coil Circuit" And CHKG. Power Feed To Injectors And DIS:
Test NS-9A - "Ignition Coil Circuit" And CHKG. Power Feed To Injectors And DIS:
