No Start Test
>>
No Start (NS) Tests
>>
NS-8B Checking DIS Camshaft & Crankshaft Sensor Circuit
NS-8B Checking DIS Camshaft & Crankshaft Sensor Circuit

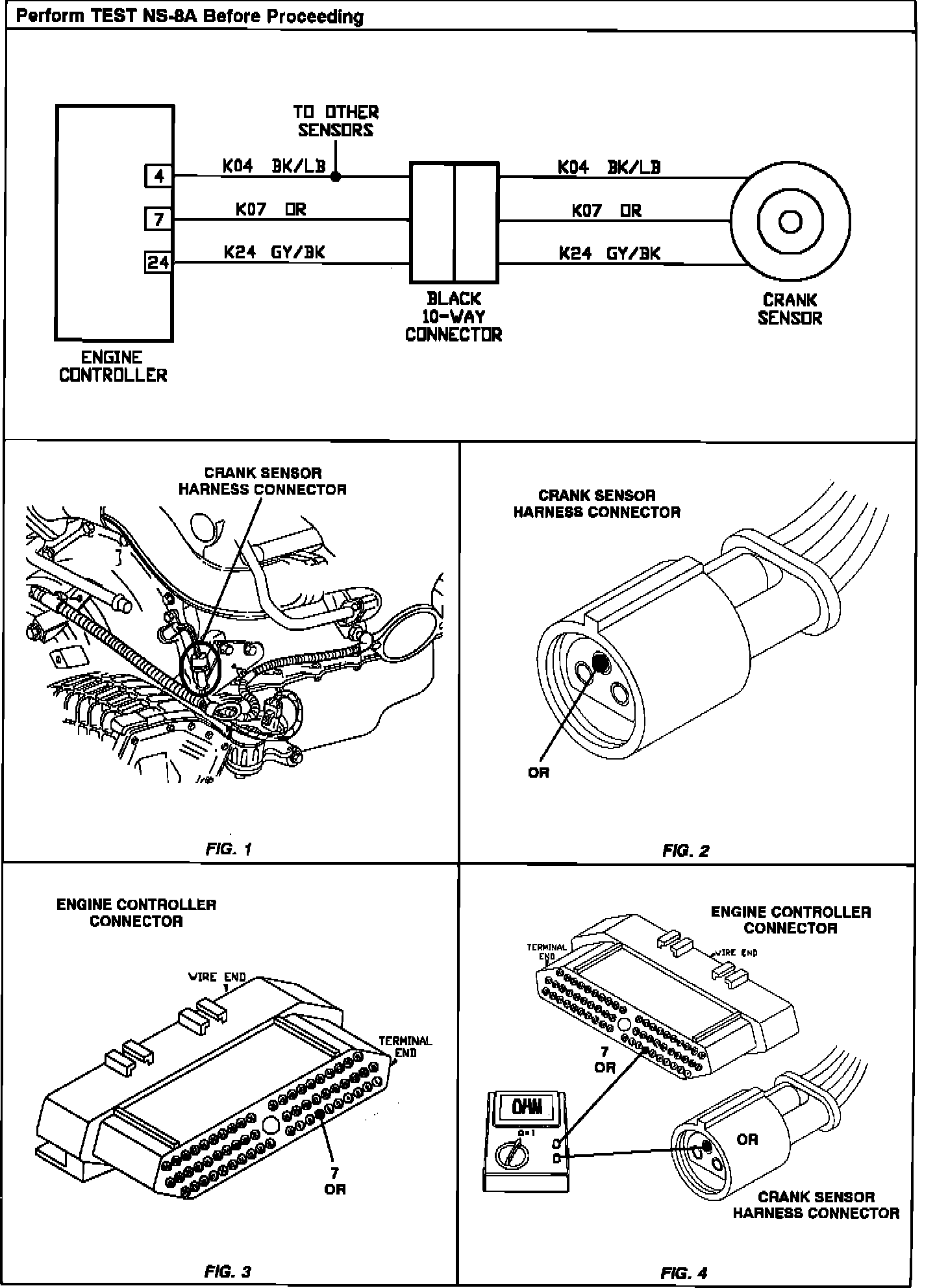

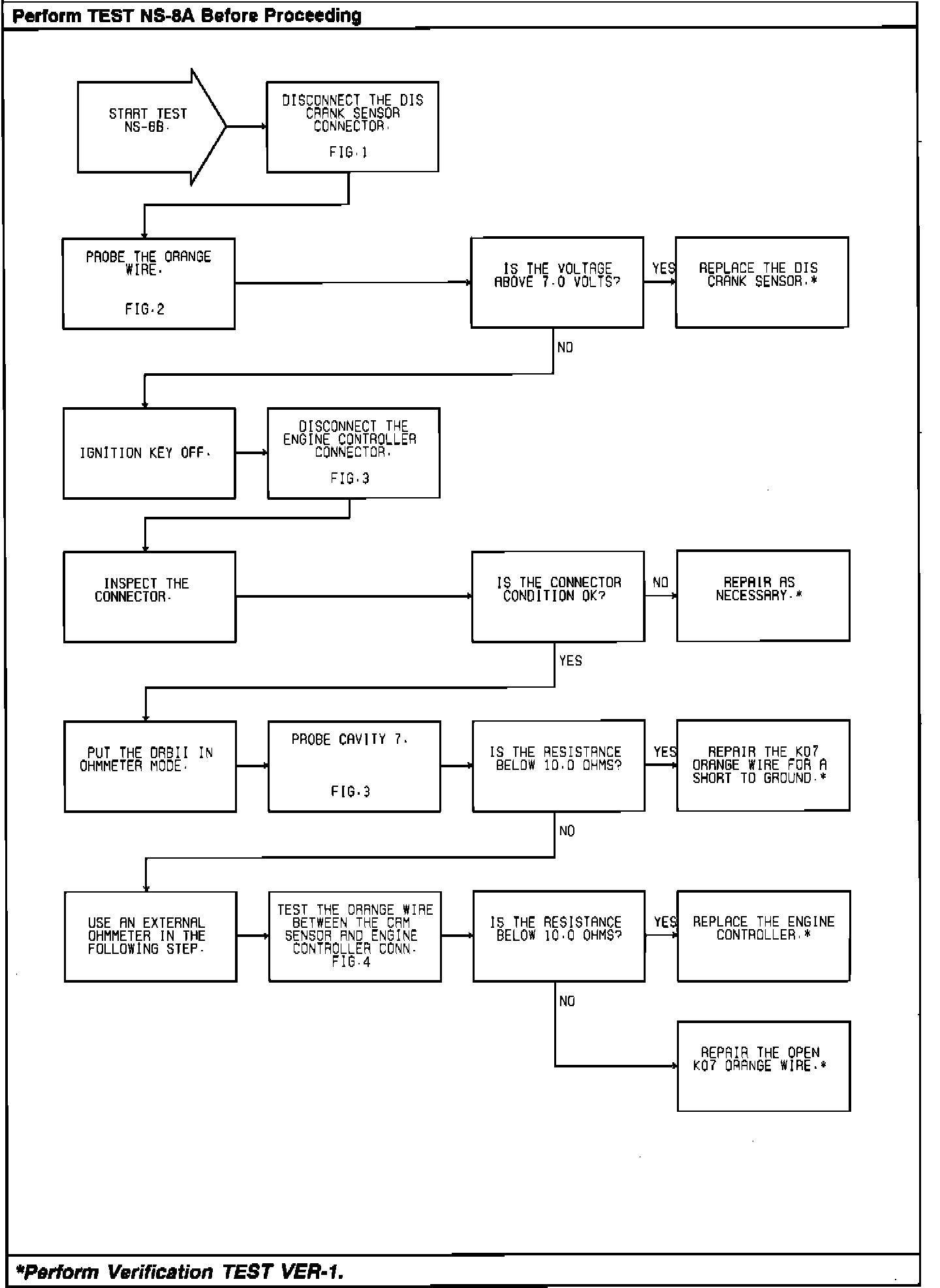

Test NS-8B - Checking DIS Camshaft And Crankshaft Sensor Circuit:
Test NS-8B - Checking DIS Camshaft And Crankshaft Sensor Circuit:
