NS-5A Checking For High Fuel Pressure In System

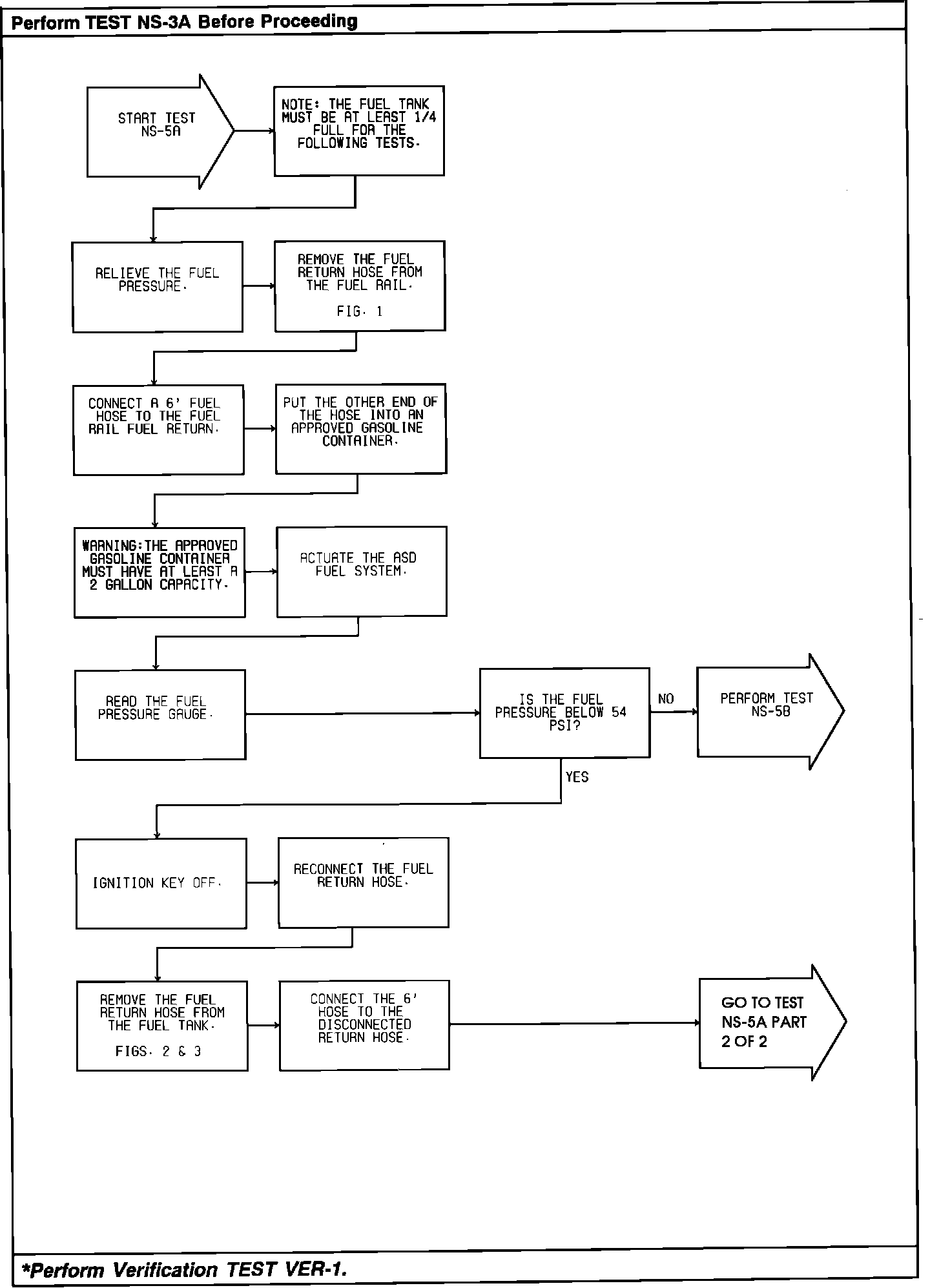

Test NS-5A - High Fuel Pressure At Pressure Regulator And Fuel Tank:

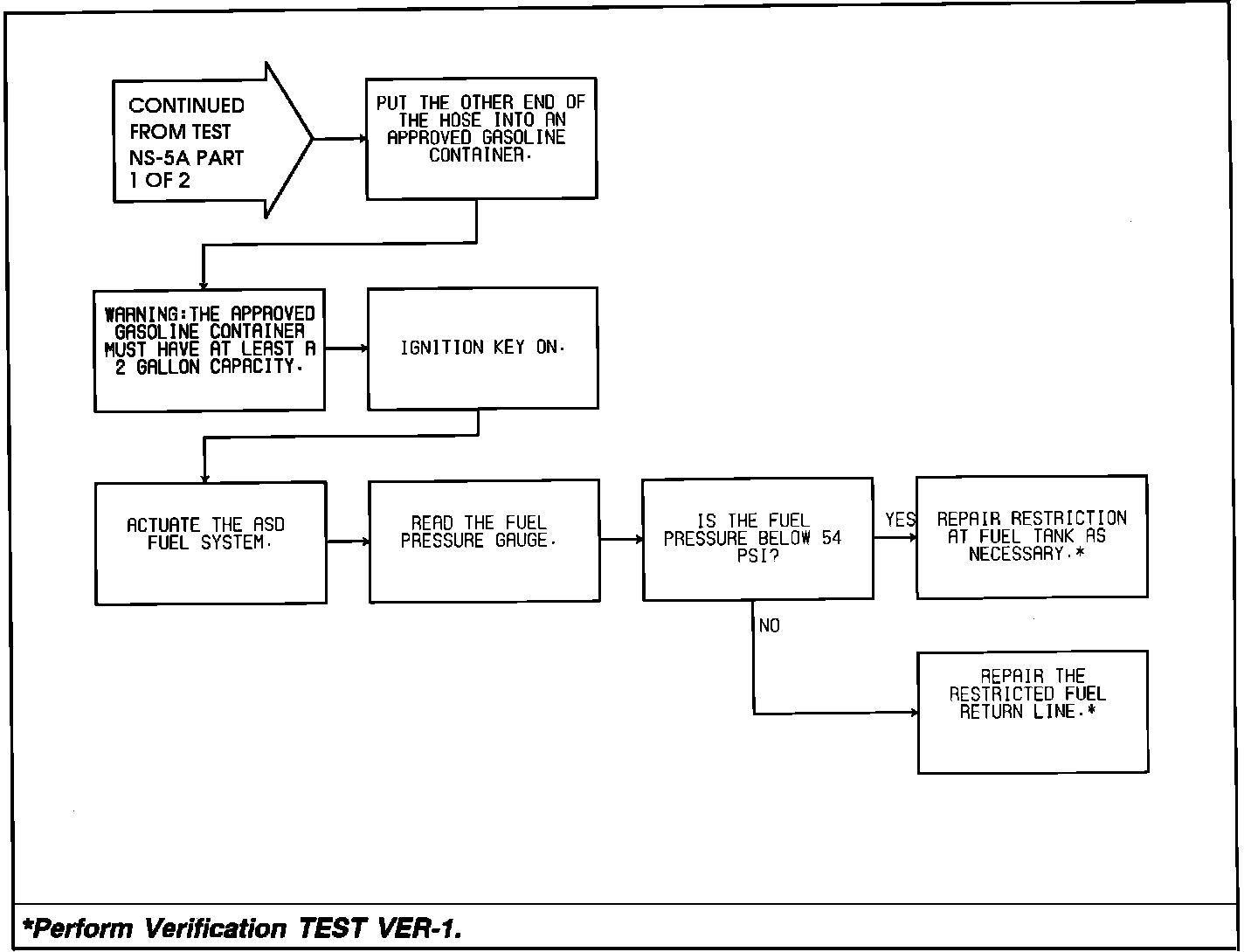

Test NS-5A - High Fuel Pressure At Pressure Regulator And Fuel Tank:

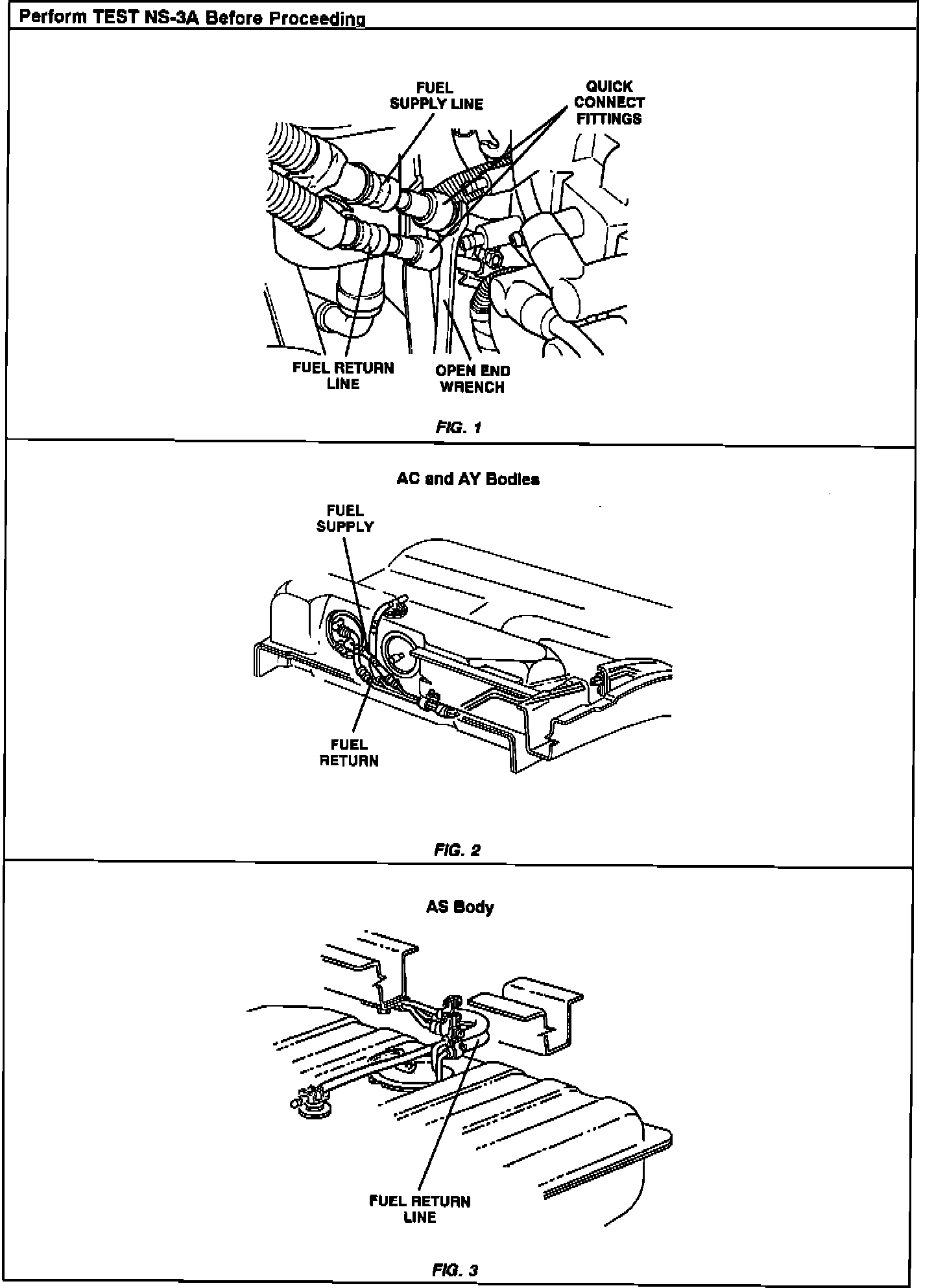

Test NS-5A - High Fuel Pressure At Pressure Regulator And Fuel Tank:
