No Start Test
>>
No Start (NS) Tests
>>
NS-13E Checking Idle Speed Motor Operation
NS-13E Checking Idle Speed Motor Operation

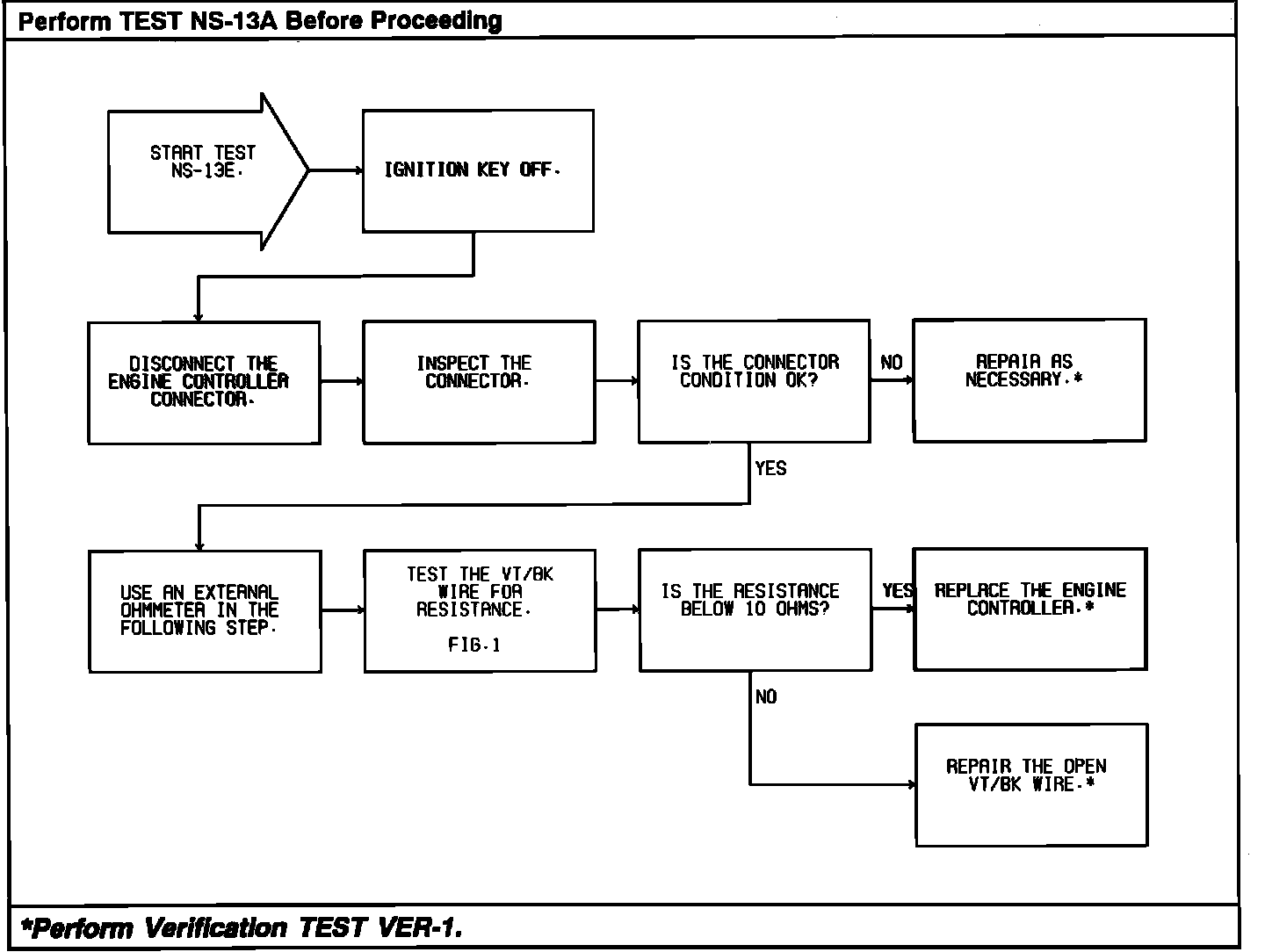

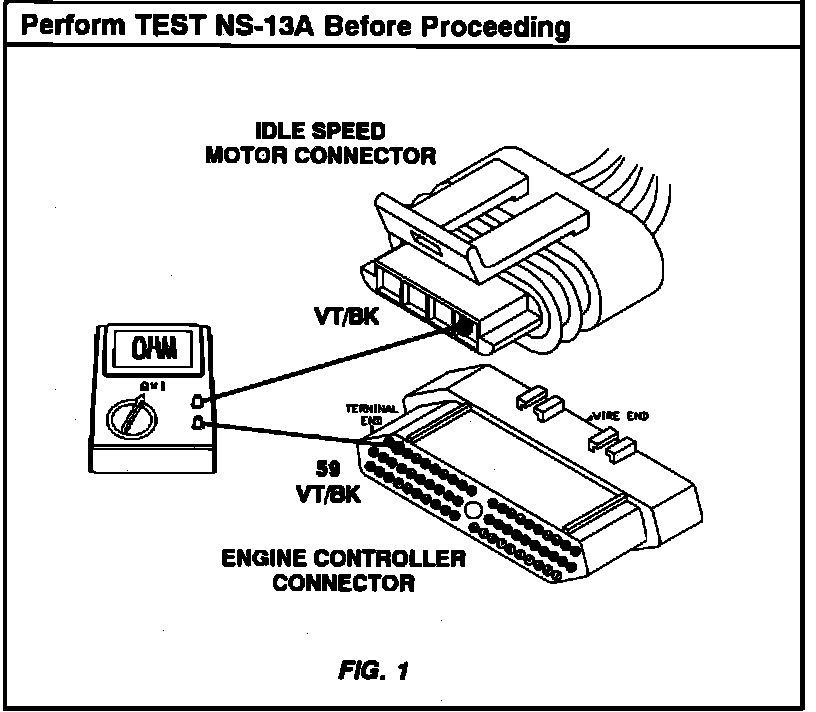

Test NS-13E - Checking Idle Speed Motor Operation:
Test NS-13E - Checking Idle Speed Motor Operation:
