No Start Test
>>
No Start (NS) Tests
>>
NS-13C Checking Idle Speed Motor Operation
NS-13C Checking Idle Speed Motor Operation

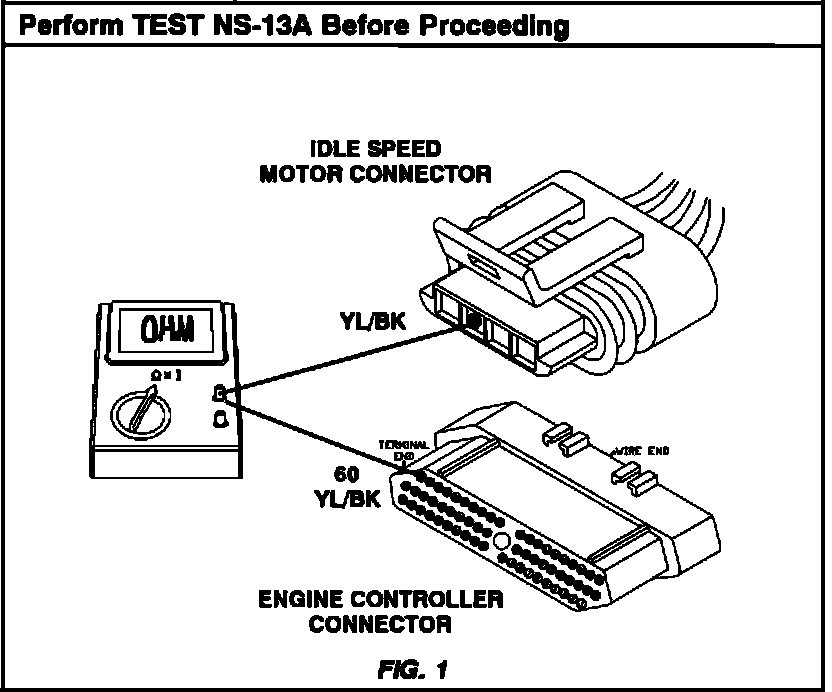

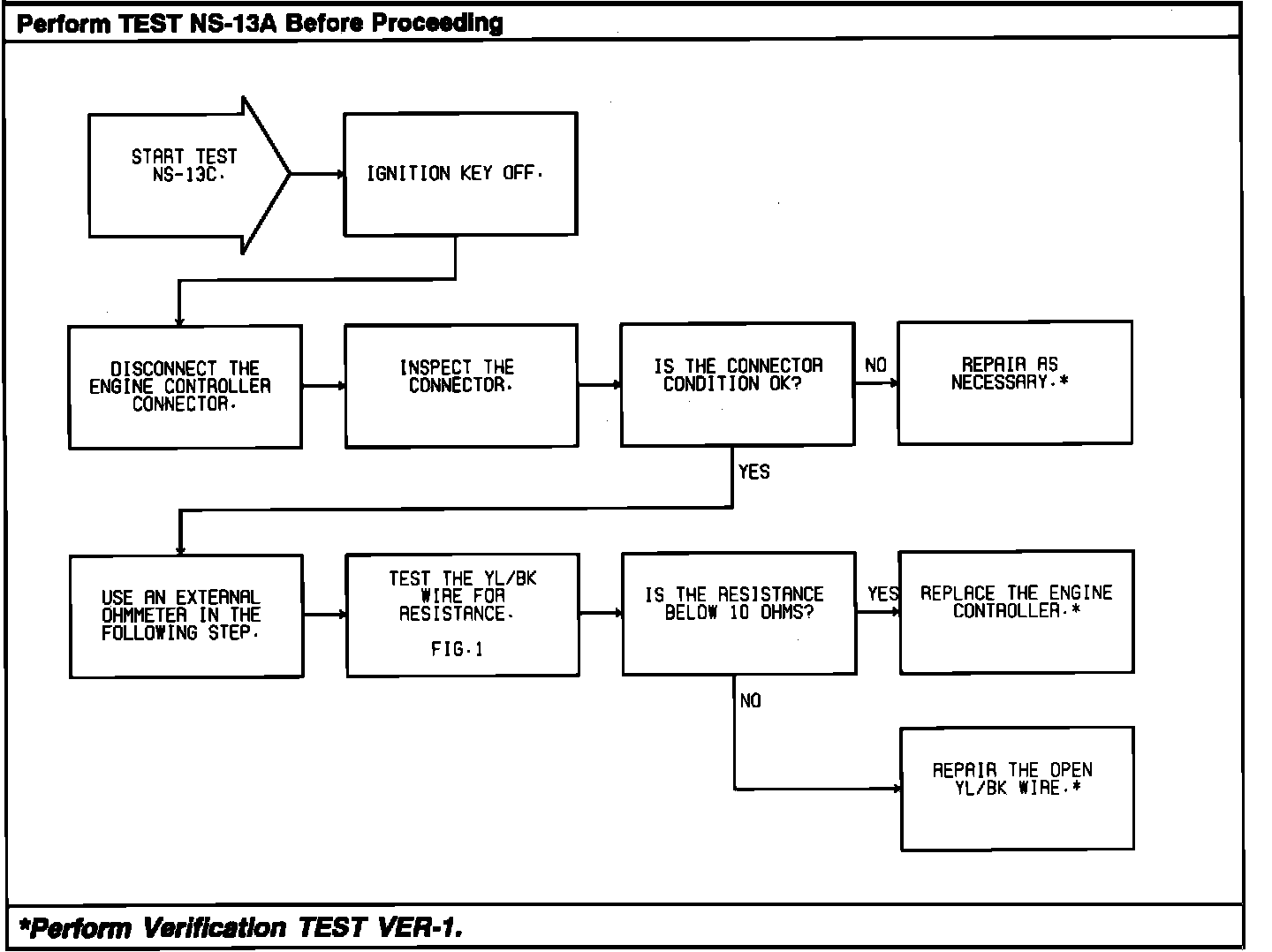

Test NS-13C - Checking Idle Speed Motor Operation:
Test NS-13C - Checking Idle Speed Motor Operation:
