New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-11A Repairing "Auto Shutdown Relay Control Circuit" Fault
>>
Part 1 of 2
Part 1 of 2

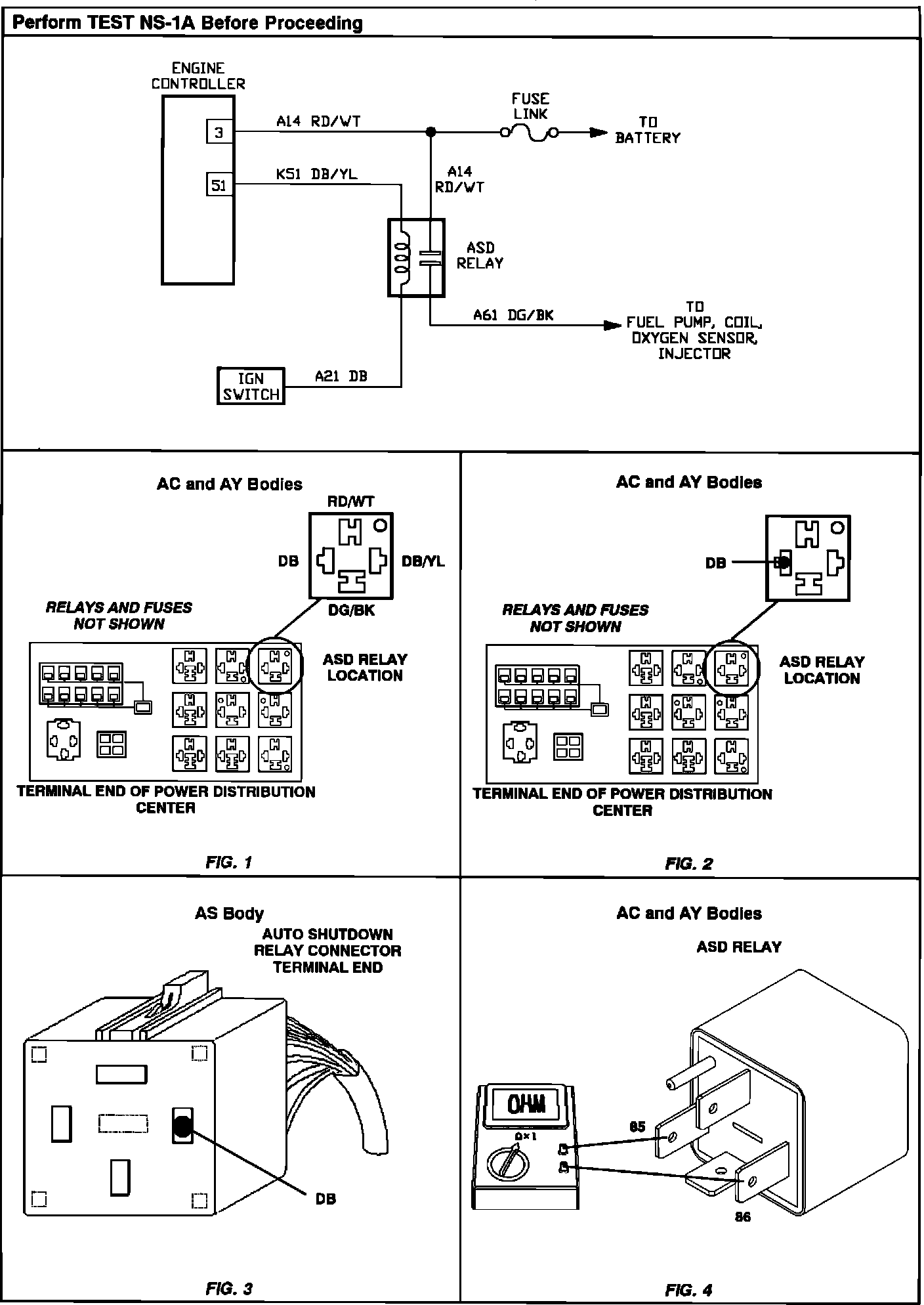

Test NS-11A - "Auto Shutdown Relay Control Circuit":
Test NS-11A - "Auto Shutdown Relay Control Circuit":
