No Start Test
>>
No Start (NS) Tests
>>
NS-10A Checking System Power & Ground MAP Sensor & SBEC
>>
Part 1 of 3
Part 1 of 3

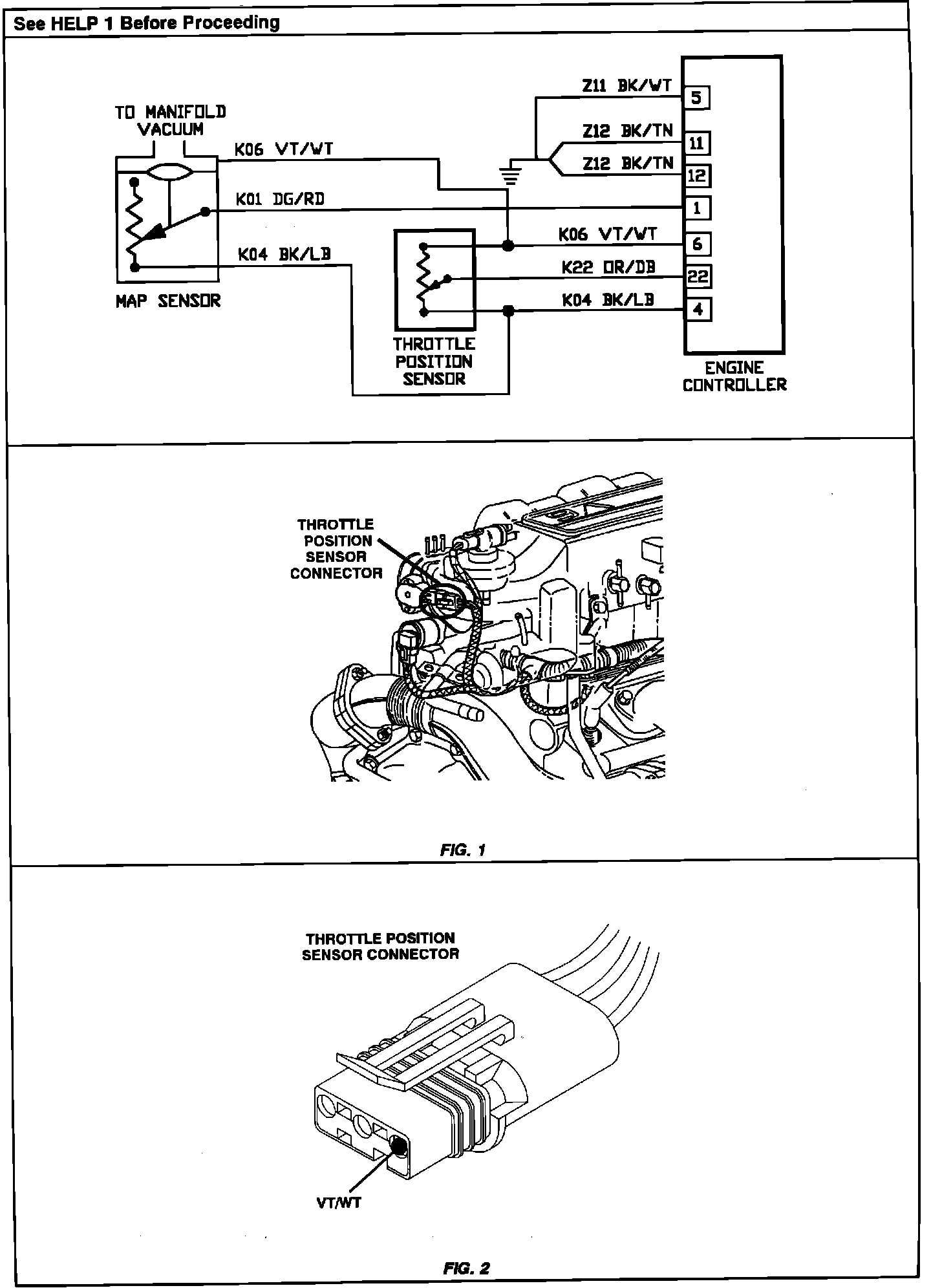

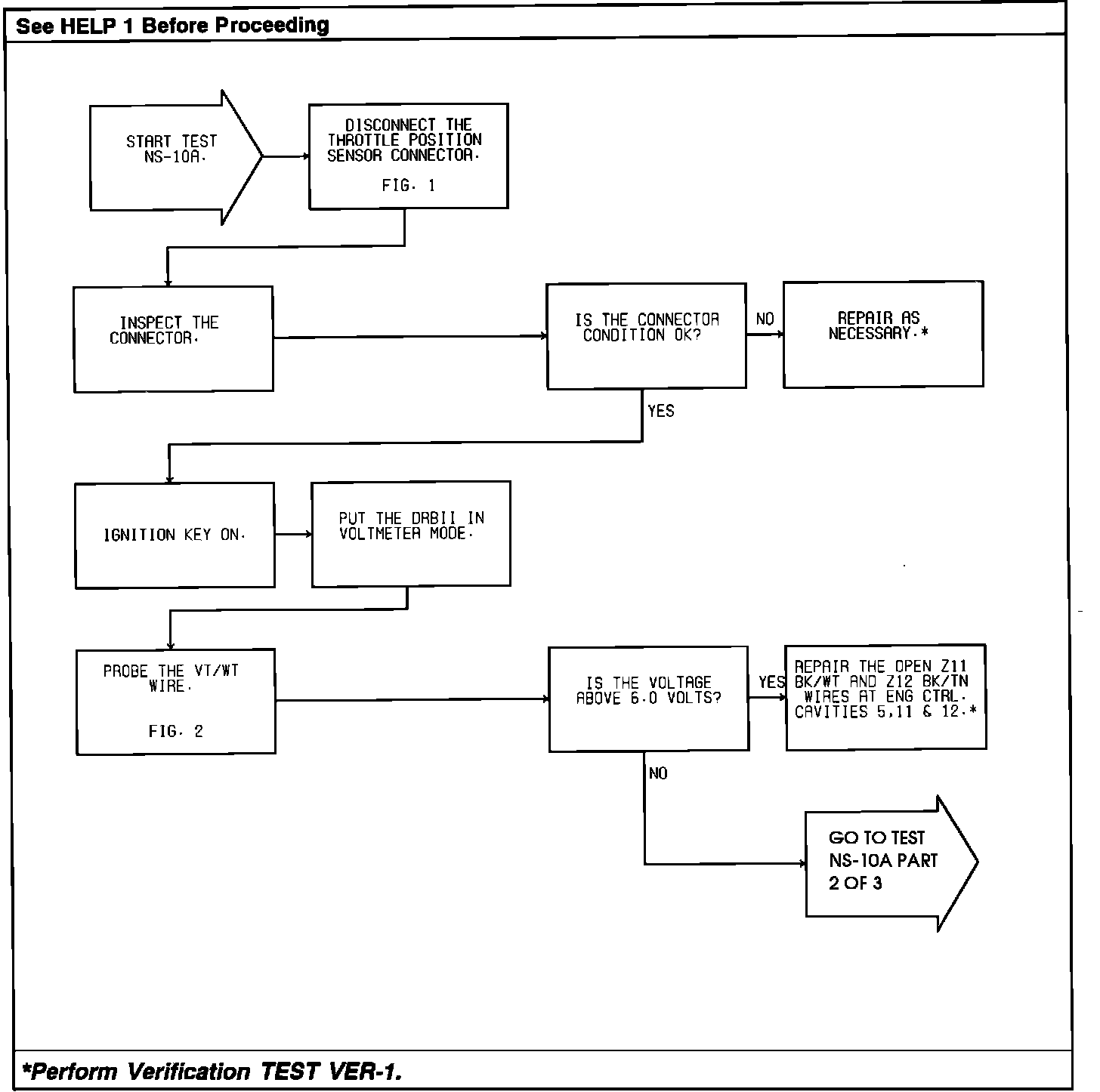

Test NS-10A - Checking For System Power And Ground, And Operation Of Engine Controller And MAP:
Test NS-10A - CHKG. For System Power And Ground, And Operation Of Engine Controller And MAP:
