Ambient Temperature Sensor / Switch HVAC: Service and Repair

REMOVAL AND INSTALLATION
1. Remove glove box/ash tray assembly.

Ambient Temperature Sensor:

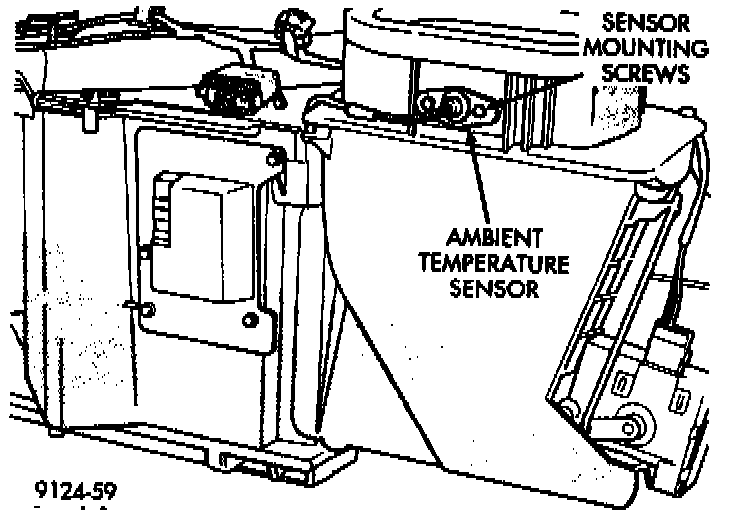

2. Locate and remove two attaching screws on Sensor receptacle.
3. Carefully pull receptacle and sensor from housing.

CAUTION: It is possible for the sensor to hang up on the edge of the hole in the A/C heater housing assembly during removal. This may cause the sensor to disengage from the receptacle and fail into the housing.

4. Unplug sensor from receptacle.

To install, reverse the preceding operation and retest system.
