Without Rear Speaker Amplifier

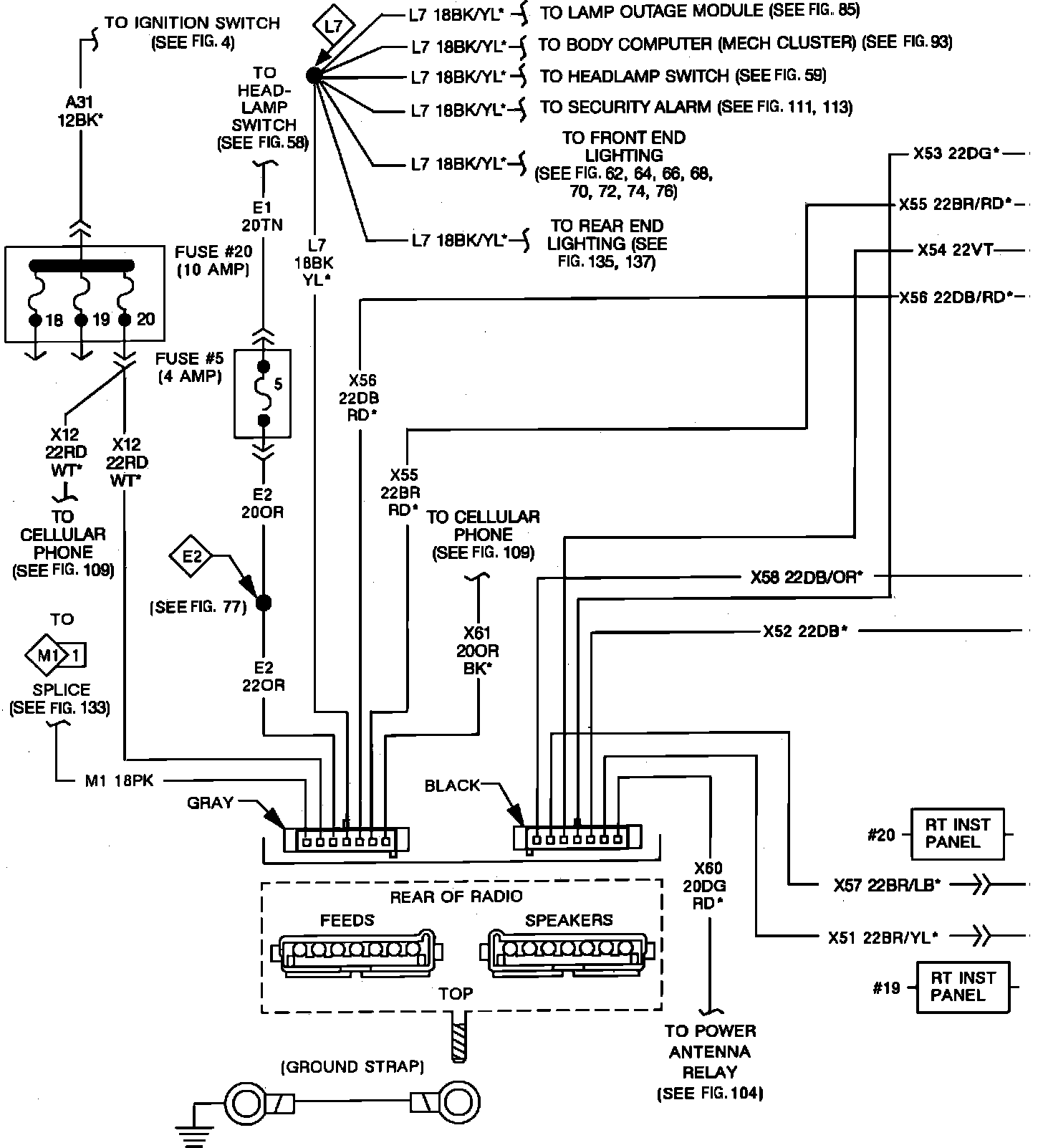

Electronically Tuned Stereo Radio:

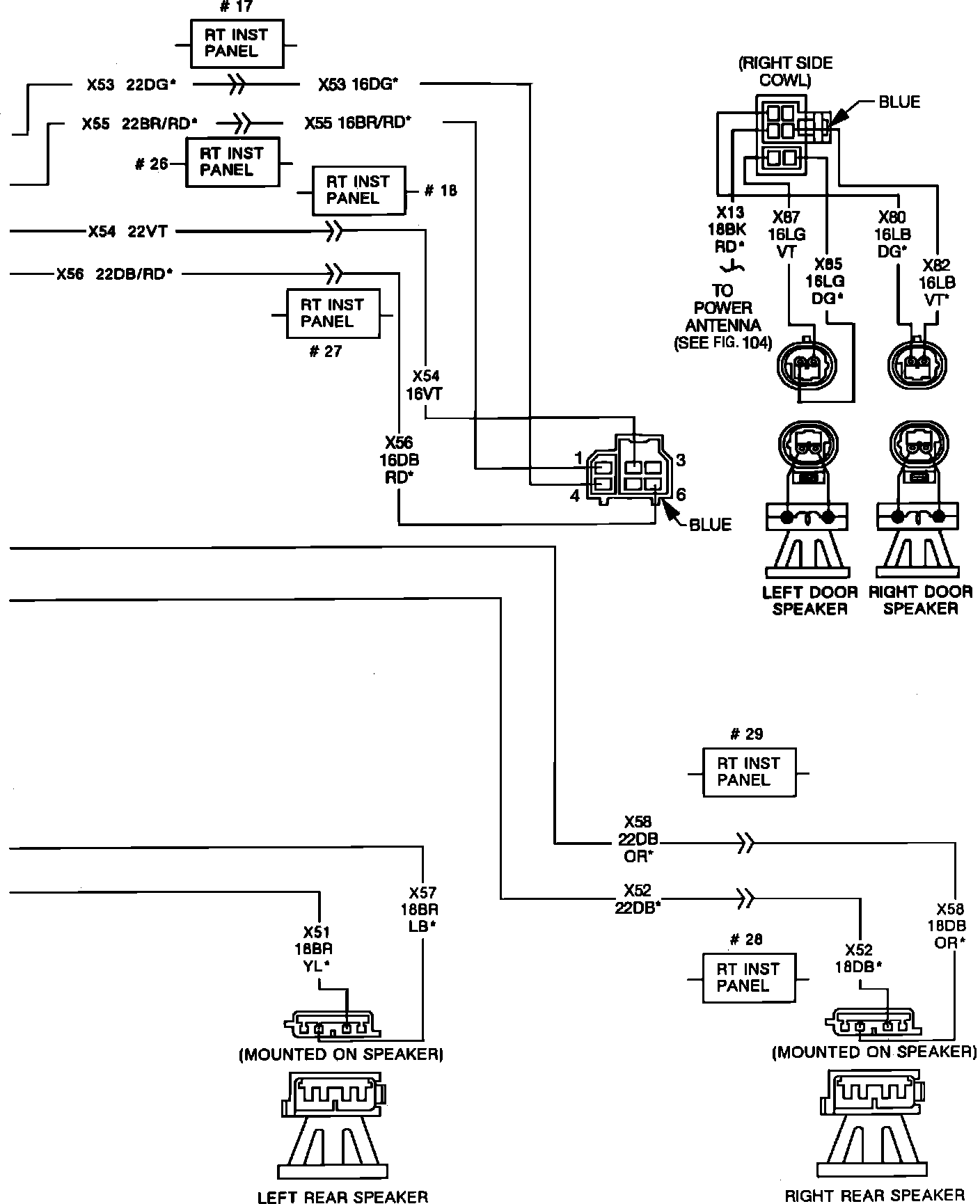

Electronically Tuned Stereo Radio:
