Without Visual Message Center

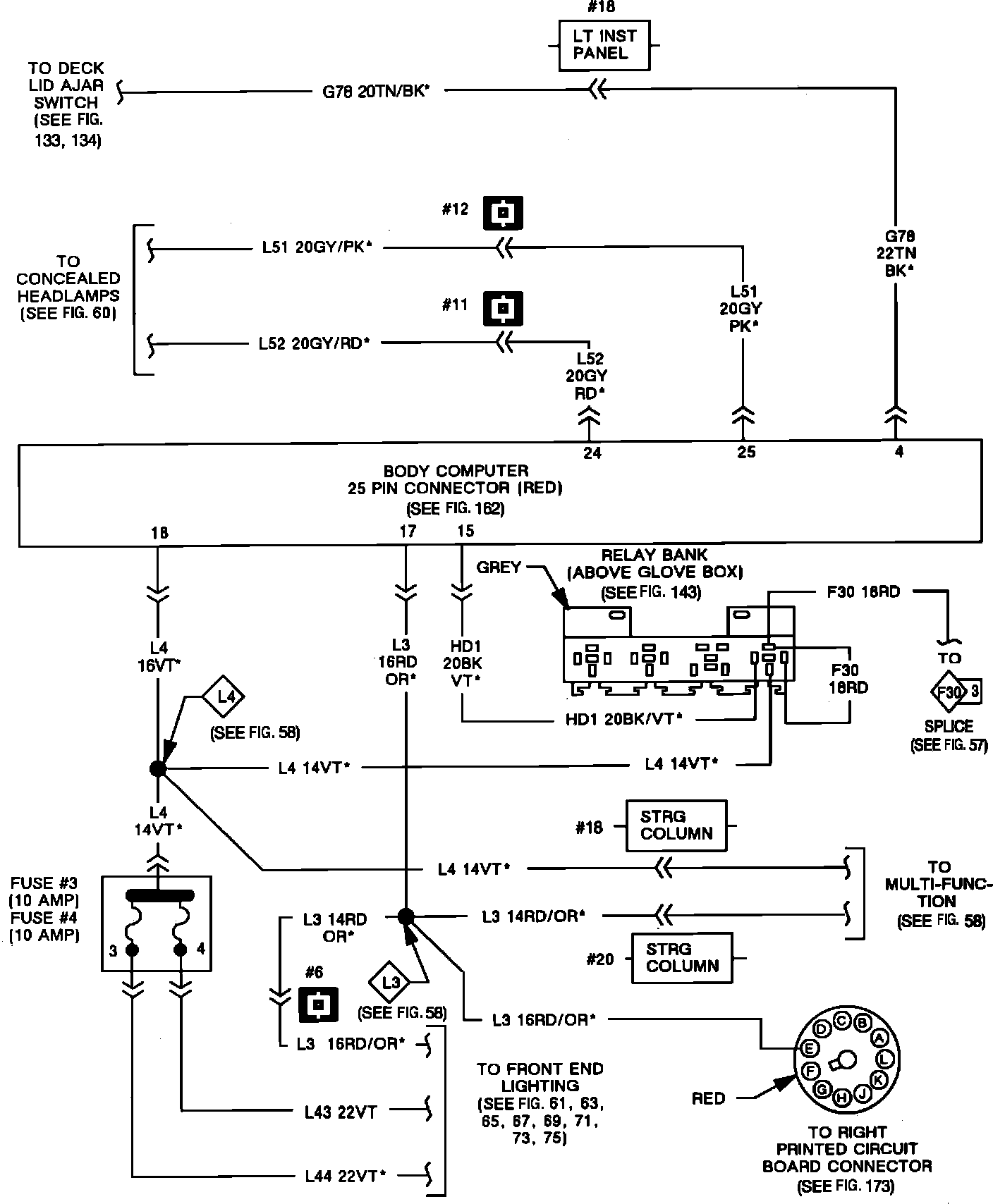

BCM (Mechanical Cluster W/O Visual Message Center) Part 1 Of 3:

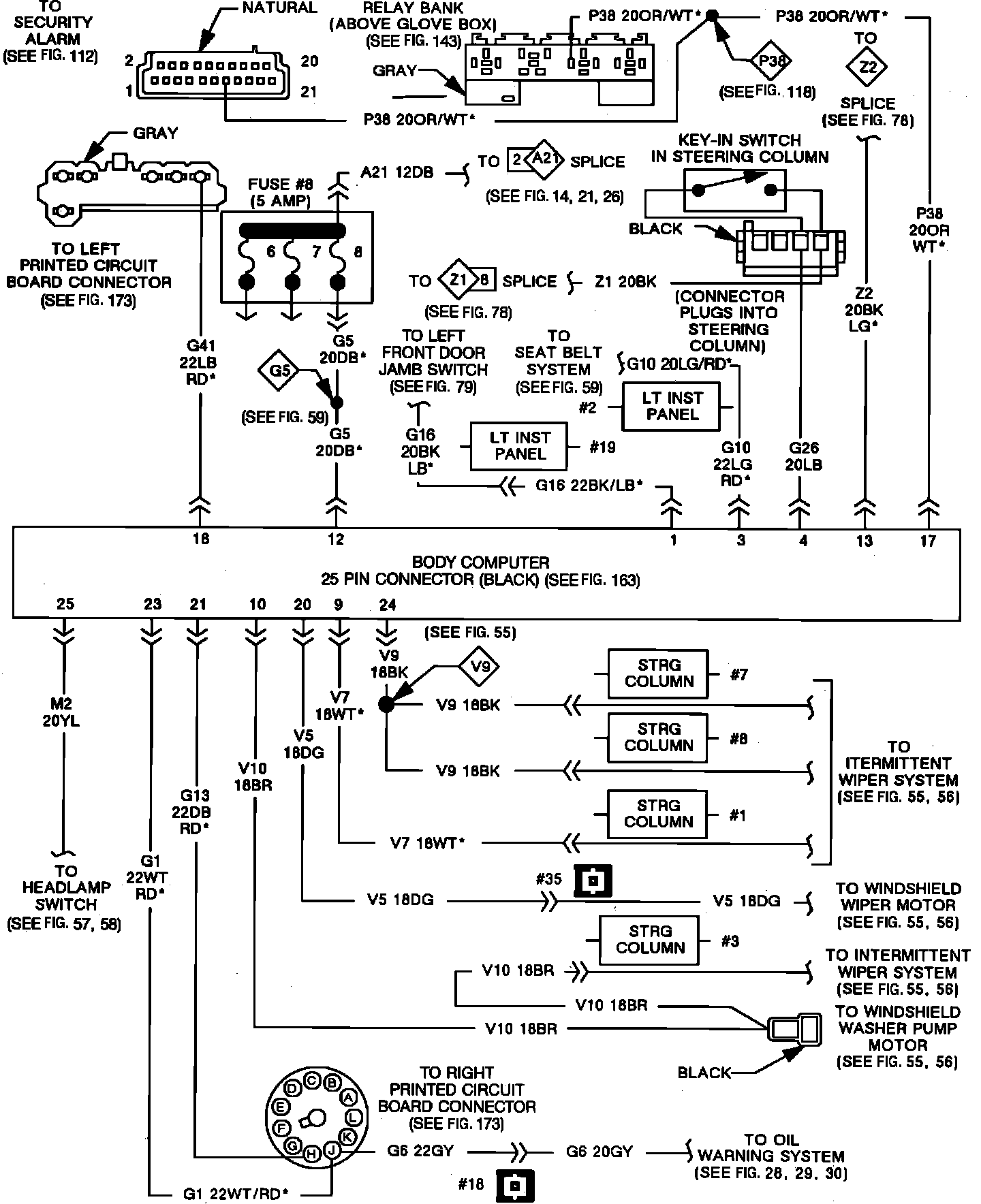

BCM (Mechanical Cluster W/O Visual Message Center) Part 2 Of 3:

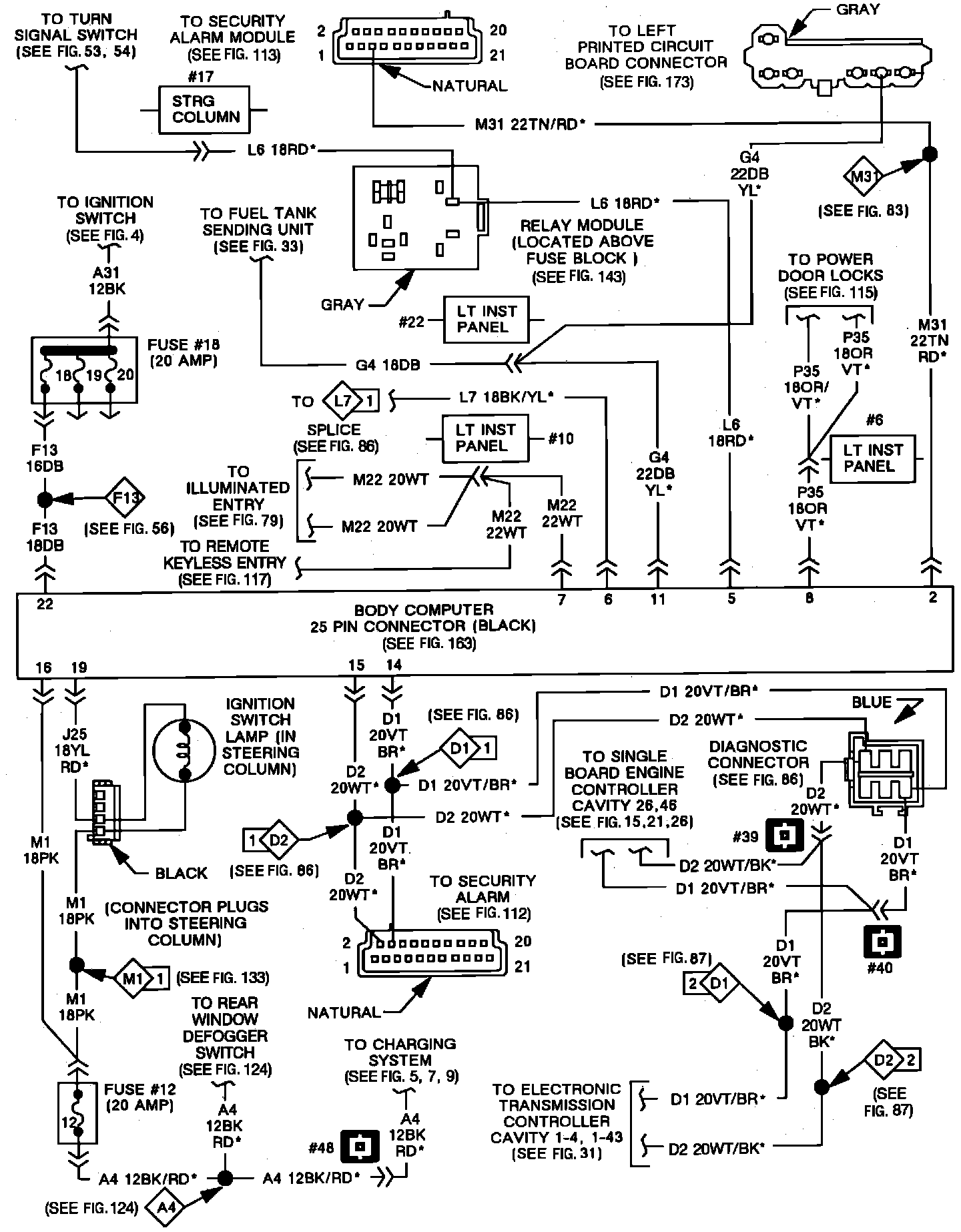

BCM (Mechanical Cluster W/O Visual Message Center) Part 3 Of 3:
