New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals
Turn Signals

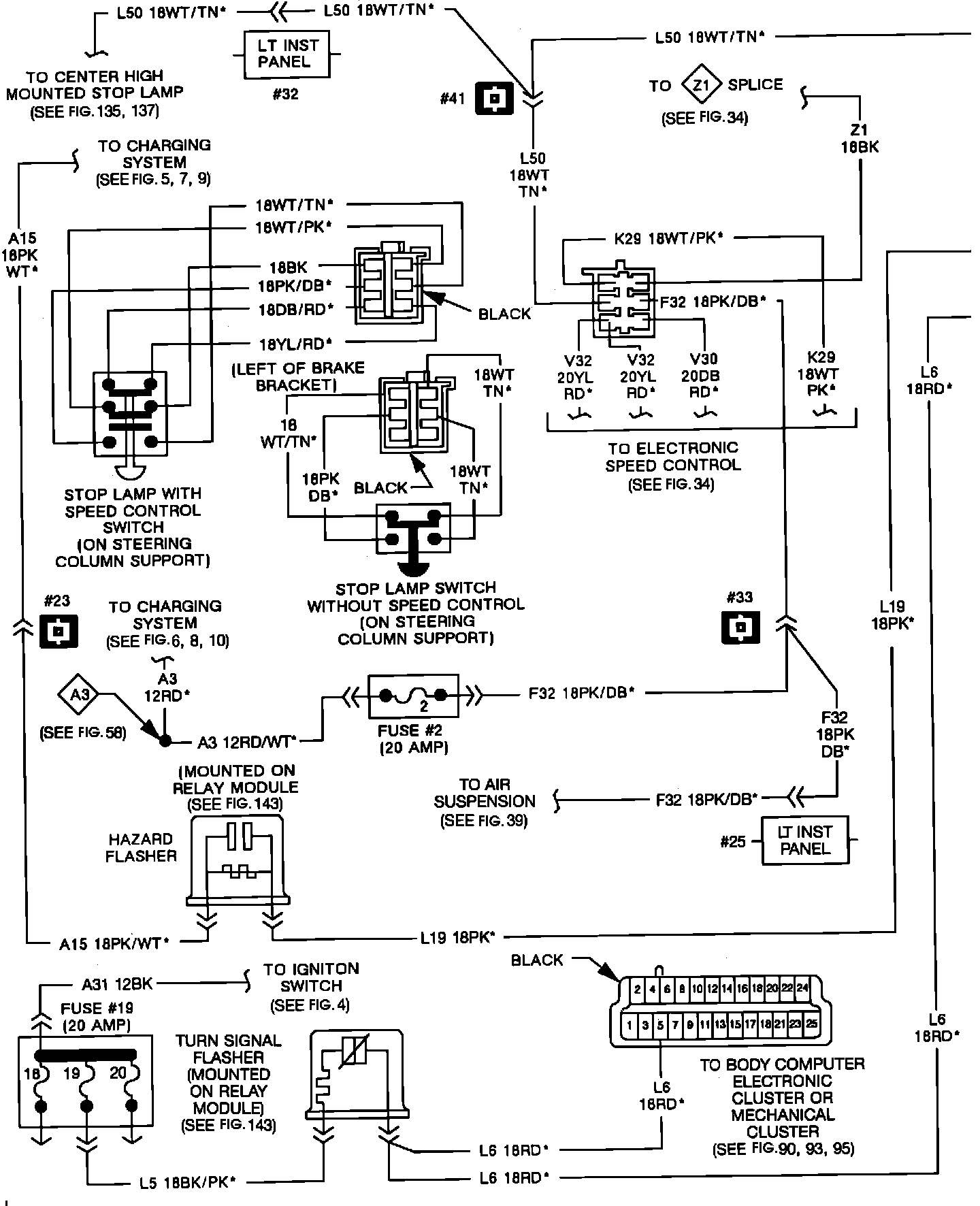

Turn, Stop & Hazard:
Turn, Stop & Hazard:
