With Automatic Temperature Control (ATC)

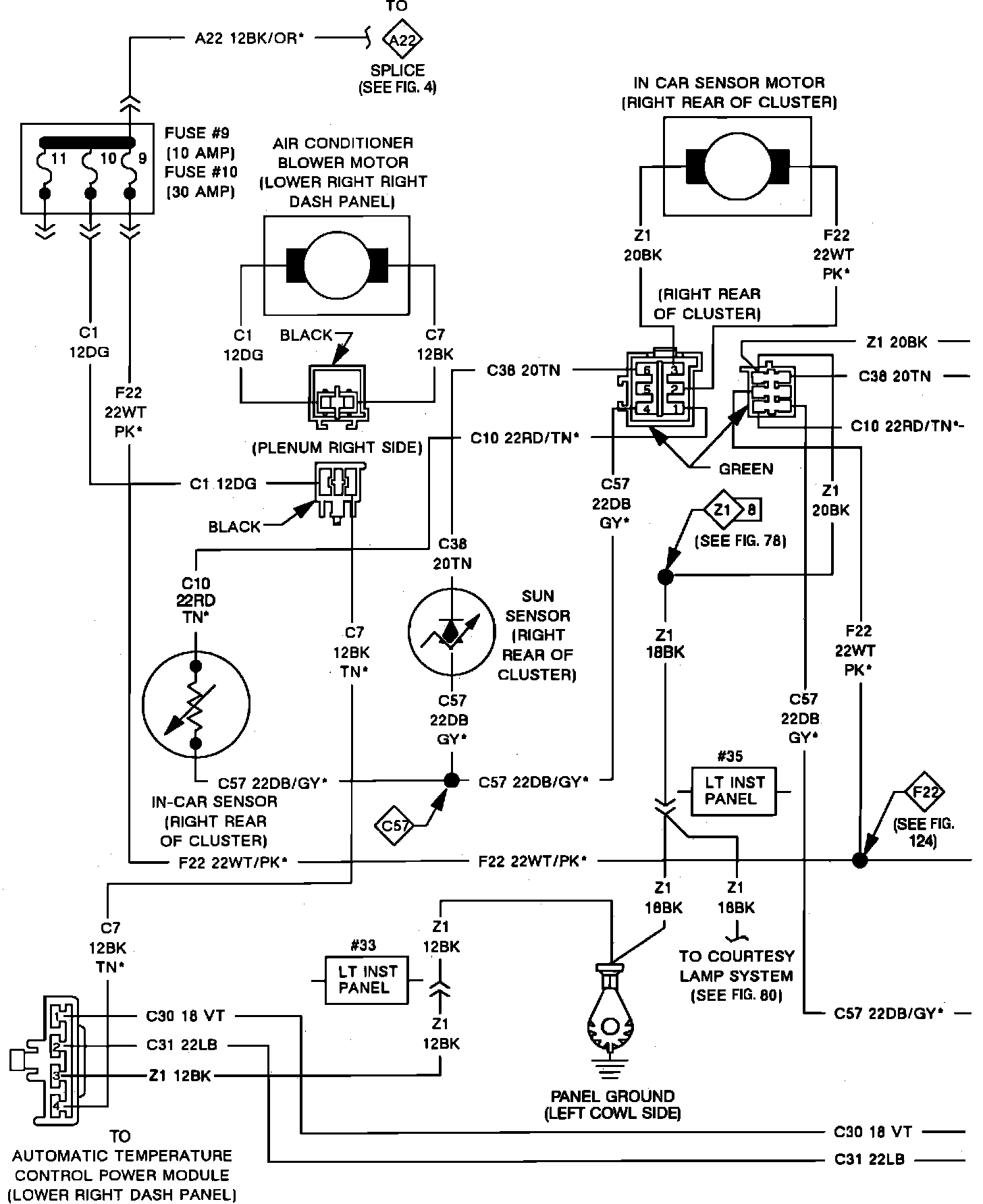

Automatic Temperature Control Wiring Circuit Part 1 Of 4:

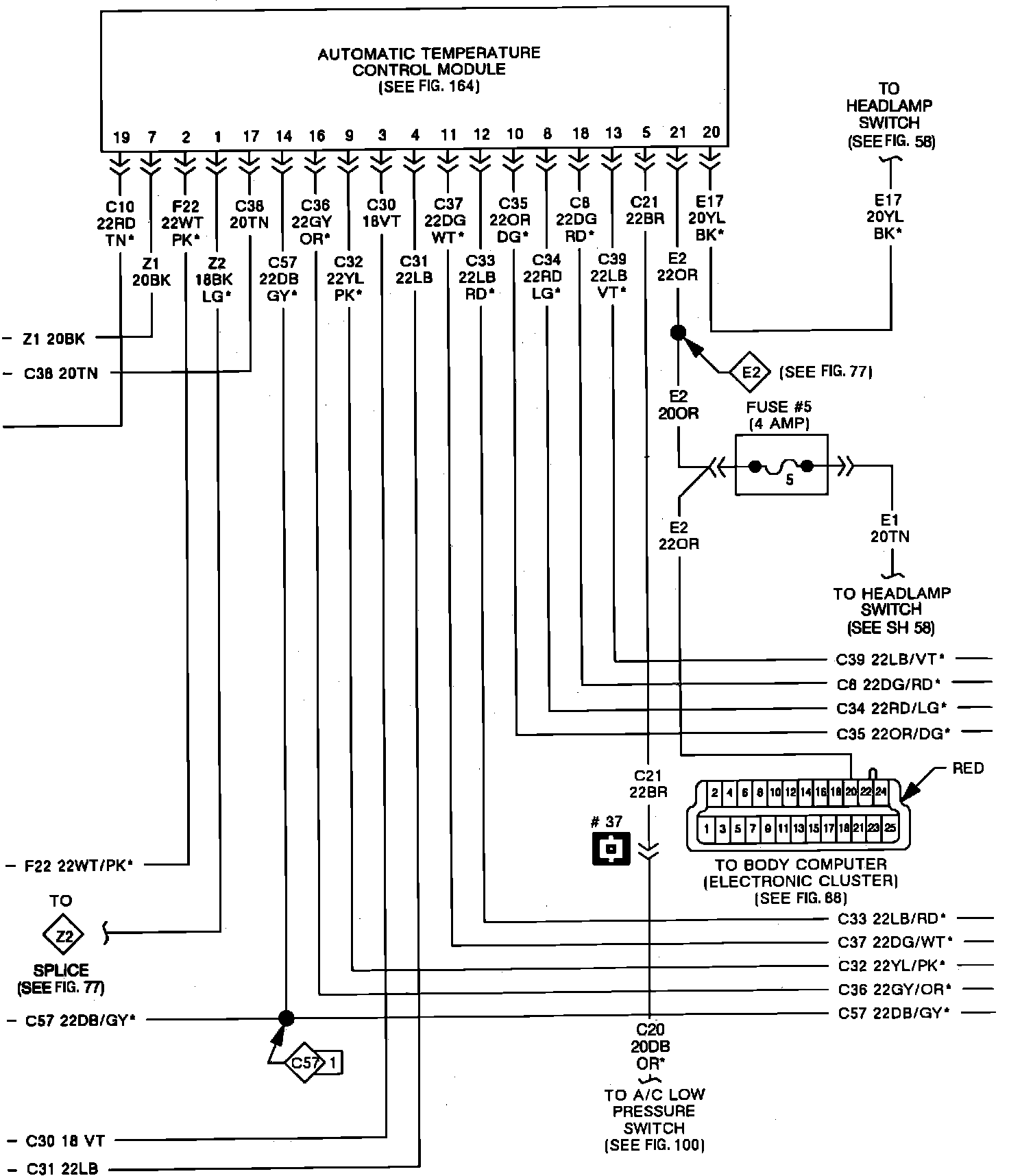

Automatic Temperature Control Wiring Circuit Part 2 Of 4:



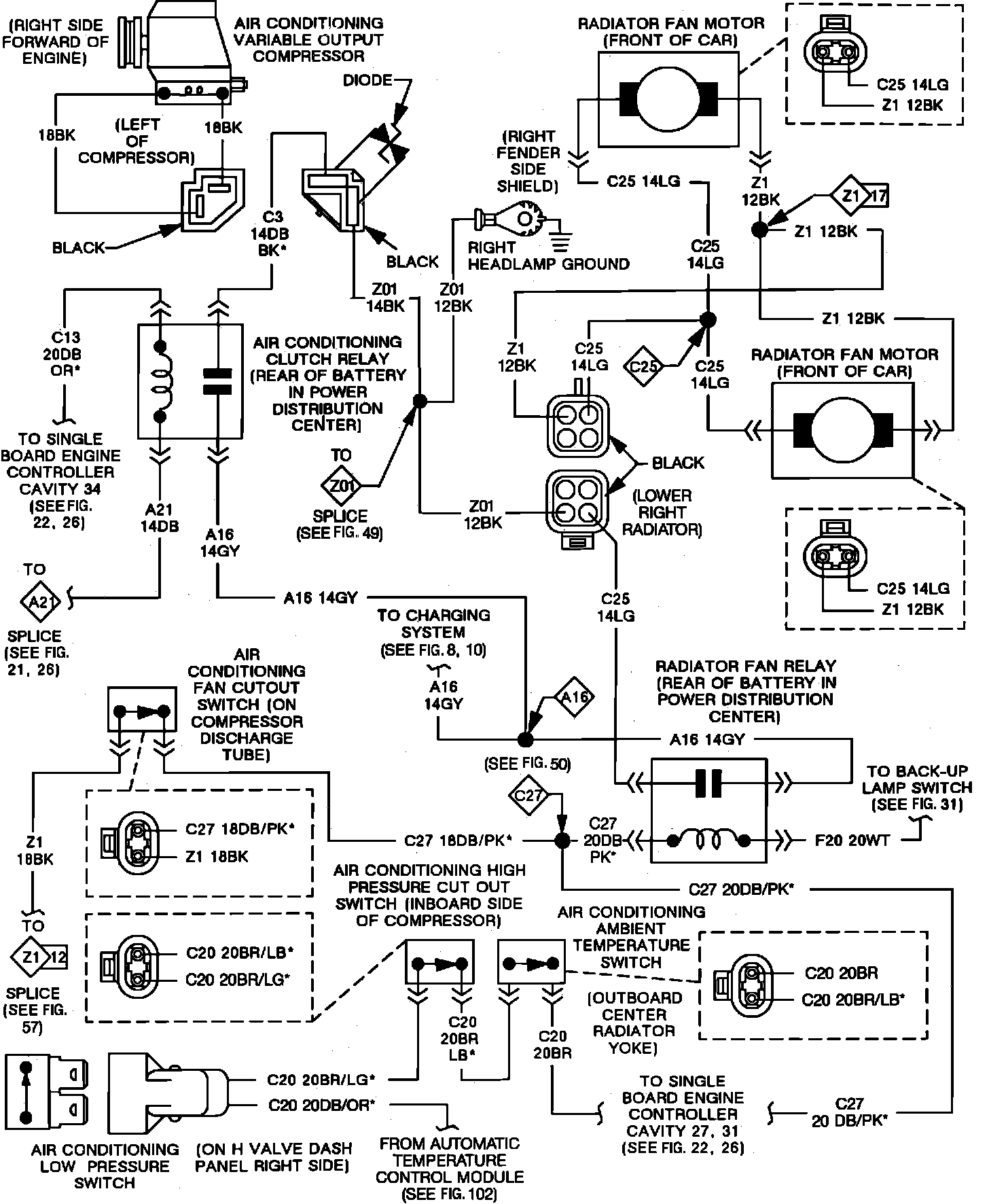

Automatic Temperature Control Wiring Circuit Part 3 Of 4:

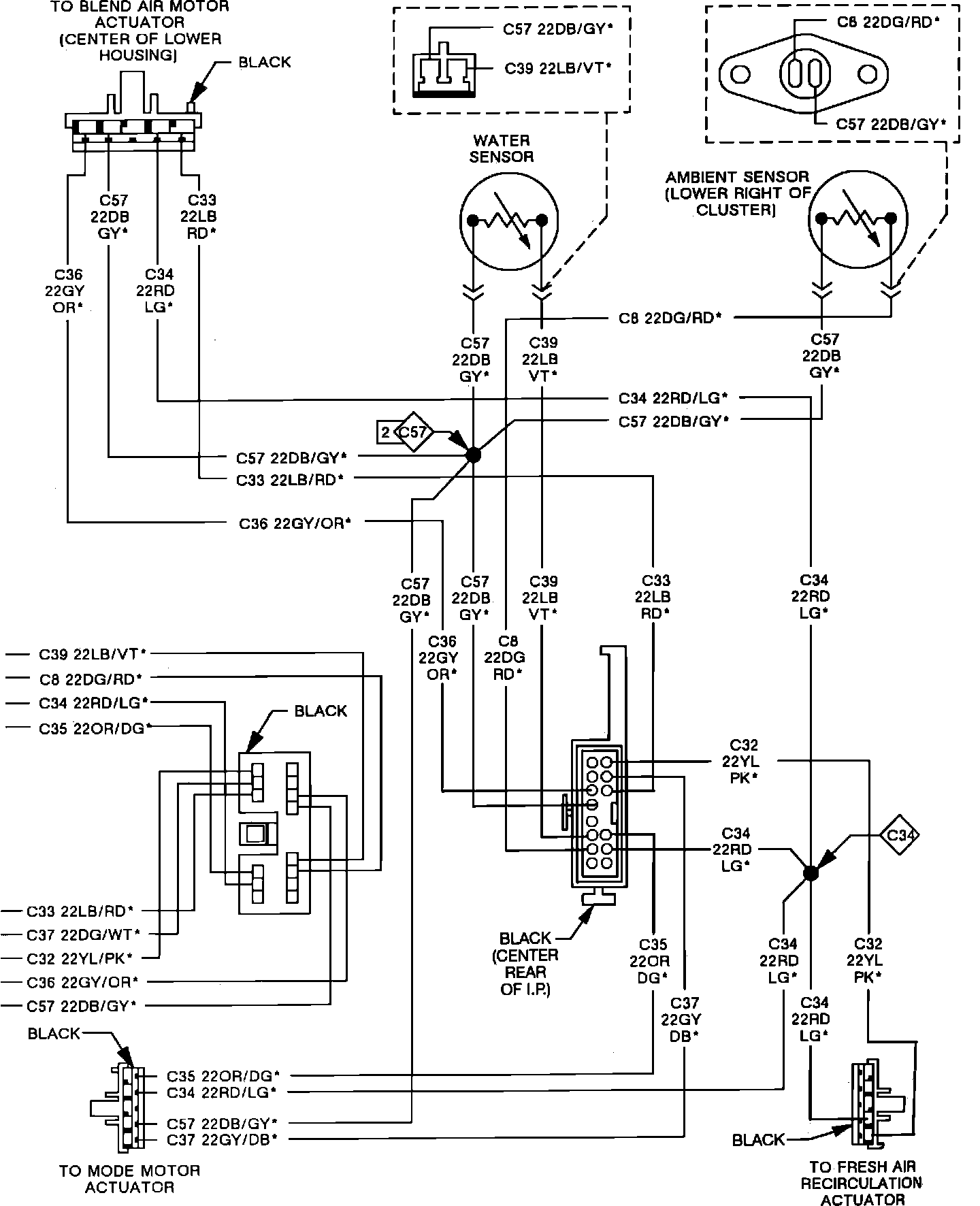

Automatic Temperature Control Wiring Circuit Part 4 Of 4:
