Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> Radiator Cooling Fan Motor

Radiator Cooling Fan Motor

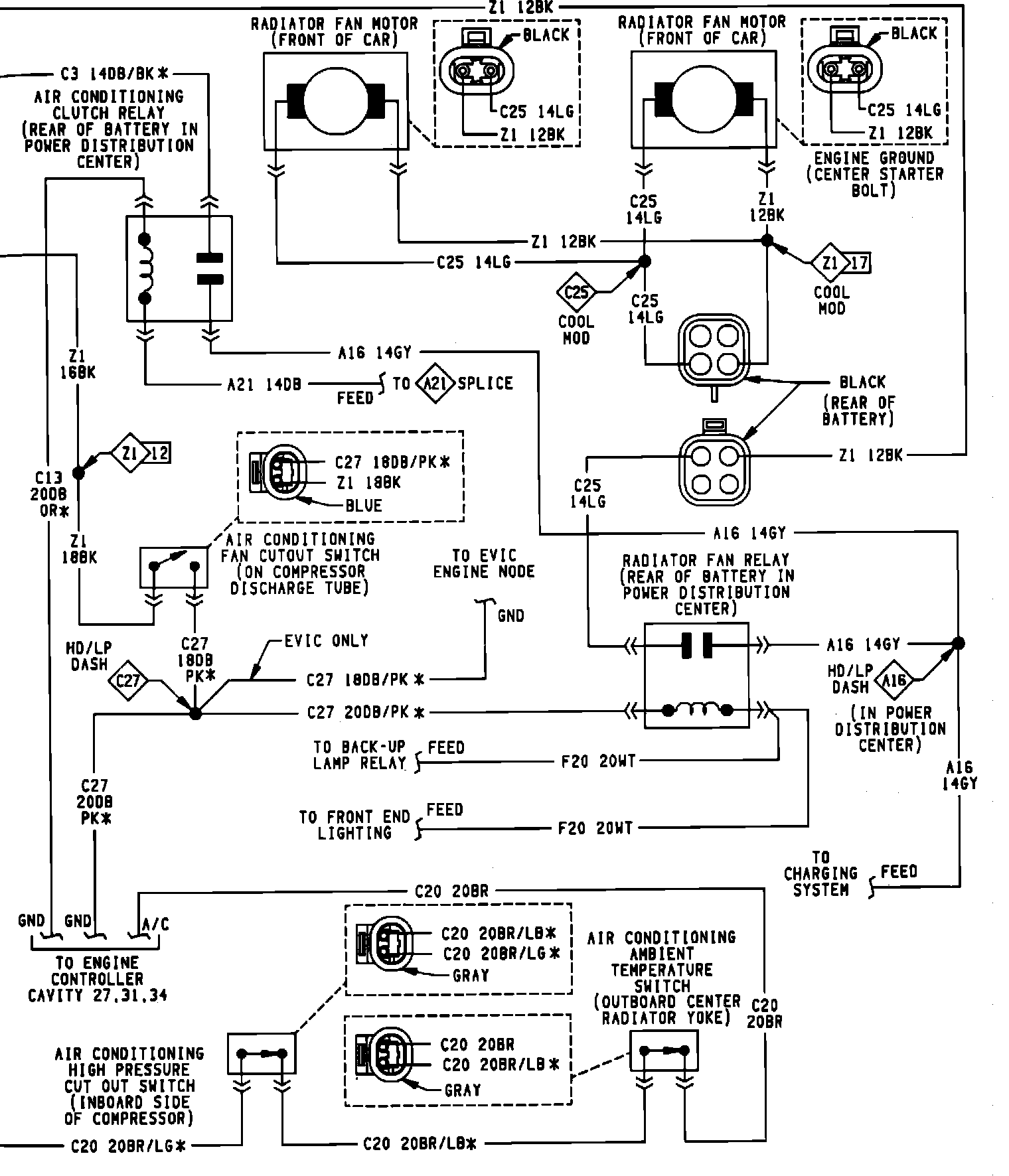

Heater, A/C And Radiator Fan Wiring Diagram (part 1 Of 2):



Heater, A/C And Radiator Fan Wiring Diagram (part 2 Of 2):
