Engine Management System Connectors

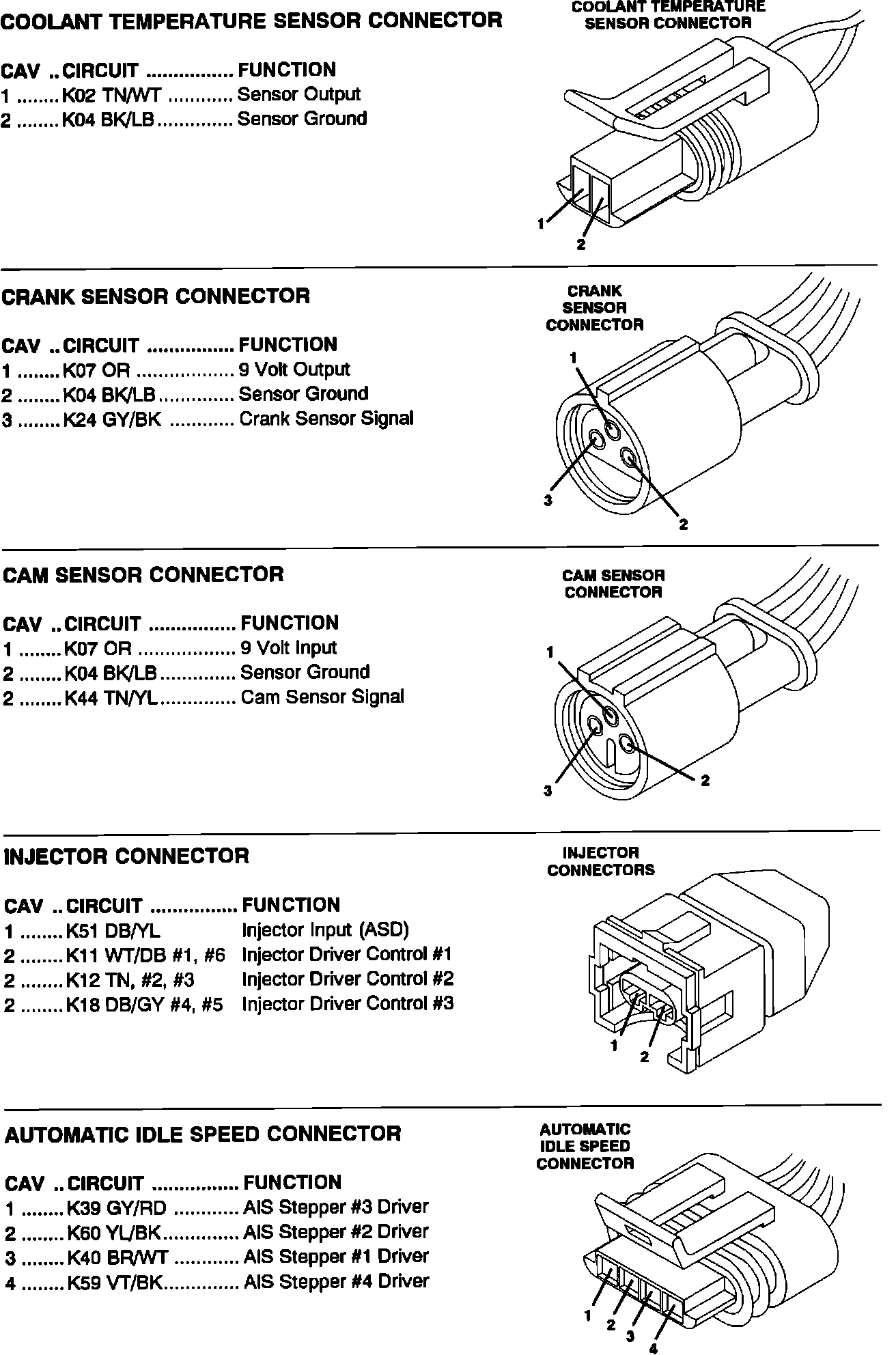

Component Connector Identification:

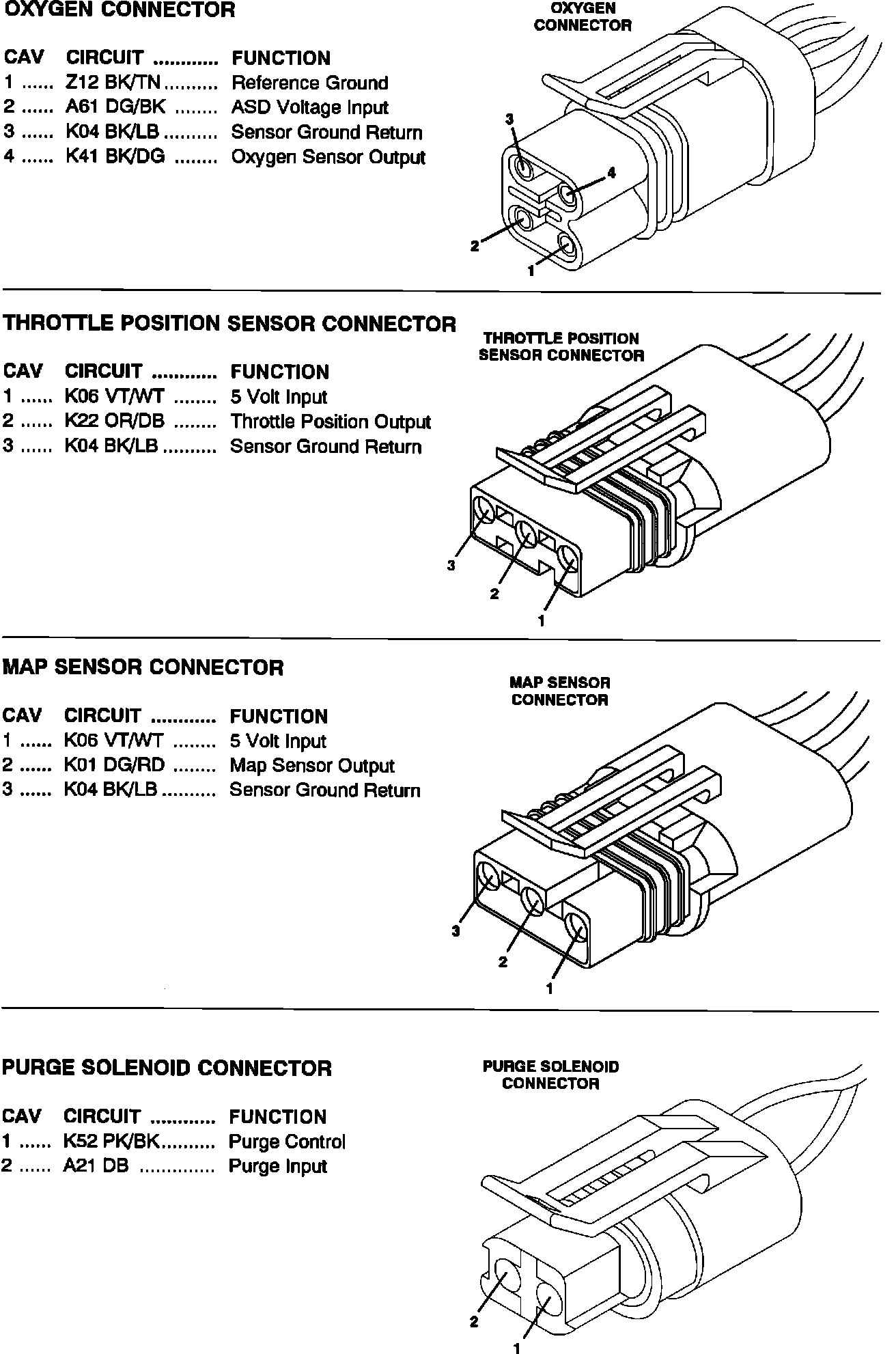

Component Connector Identification:

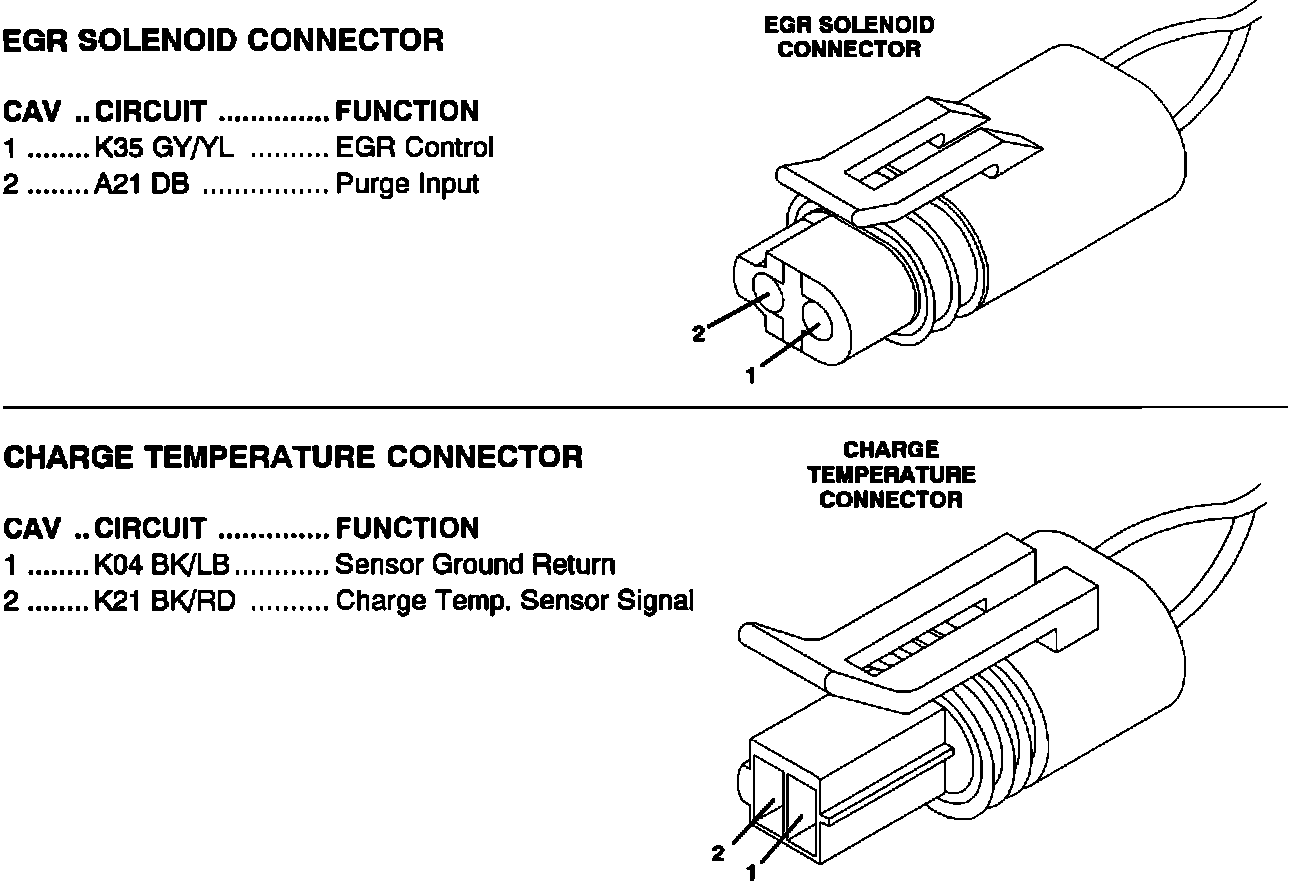

Component Connector Identification:
