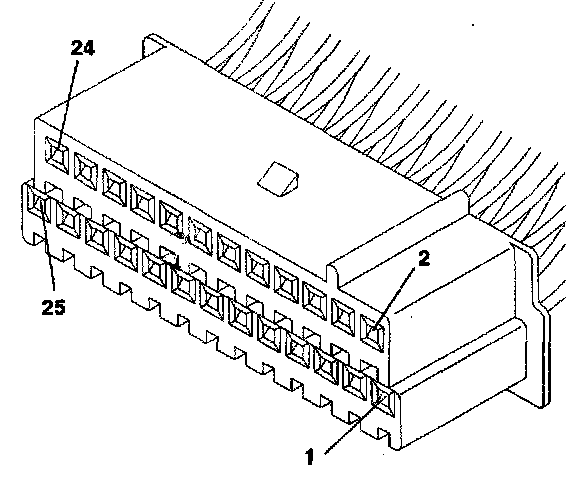

Body Computer Electronic Cluster Connector (Black)

CONNECTOR VIEWED FROM TERMINAL END

CAV CIRCUIT FUNCTION
1 G16 BK/LB Left Front Door Jamb Switch
2 G75 TN Door Ajar Left Front Door
3 G10 LG Seat Belt Warning Switch
4 G26LB Key In Chime
5 L05 RD/WT Turn Signal Flasher Feed
6 E17 YL/BK Step Dimmer Switch
7 M22 WT Illuminated Entry Feed
8 P35 OR/VT Power Door Lock Input (Switched Feed)
9 V07 WT/BK Intermittent Wiper Level
10 V10 BR Front Windshield Washer Switch
11 G04 DB/YL Fuel Level
12 G05 DB Ignition Feed (Run)
13 Z02 BK/LG Electronic Ground
14 D01 VT/BR Serial Data Bus (+)
15 D02 WT/BK Serial Data Bus (-)
16 M01 PK Battery Feed
17 P38 OR/WT Automatic Power Door Lock (Output)
18 Not Used
19 J25 YL/RD Ignition Key Lamp Feed
20 V05 DG Intermittent Wiper (Dwell)
21 Not Used
22 F13 DB Ignition Feed (Run/Acc)
23 Not Used
24 V09 BK Windshield Wiper Motor (Low Speed)
25 M02 YL Courtesy Lamps (Switch Ground)
