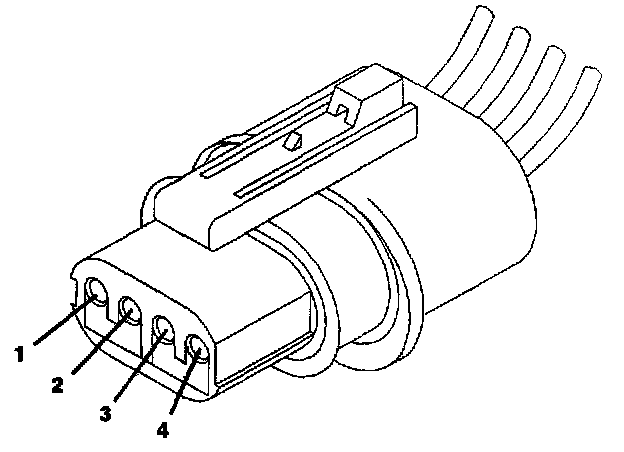

Cruise Control Servo





CAV CIRCUIT FUNCTION

1 Z1 BK Ground
2 V30 DB/RD Stop Light Switch Input
3 V35 LG/RD S/C vent
4 V36 TN/RD S/C Vac
