Wheel Speed Sensor

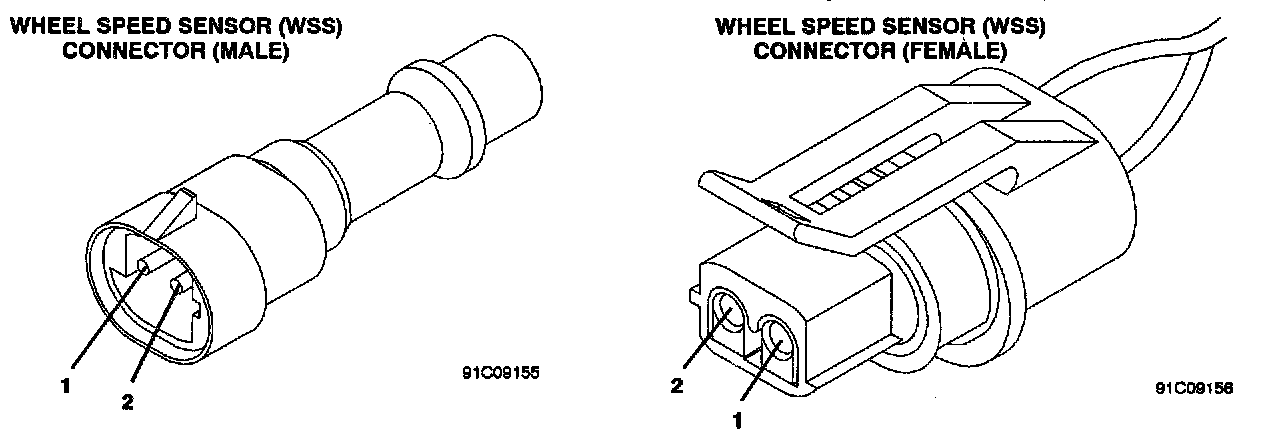

WHEEL SPEED SENSOR CONNECTORS

LF Wheel Speed Sensor Connector

CAV CIRCUIT............ FUNCTION
1...... B8 RD/DB........... LF Wheel Speed Sensor
2...... B9 RD.............. LF Wheel Speed Sensor

RF Wheel Speed Sensor Connector

CAV CIRCUIT............ FUNCTION
1...... B7 WT.............. RF Wheel Speed Sensor
2...... B6 WT/DB........... RF Wheel Speed Sensor

LR Wheel Speed Sensor Connector

CAV.. CIRCUIT............ FUNCTION
1...... B3 LG/DB........... LR Sensor
2...... B4 LG.............. LR Sensor

RR Wheel Speed Sensor Connector

CAV.. CIRCUIT............. FUNCTION
1..... B1 YL/DB............ RR Sensor
2..... B2 YL............... RR Sensor

NOTE: Matched pair wheel speed sensor circuits may be interchanged.
