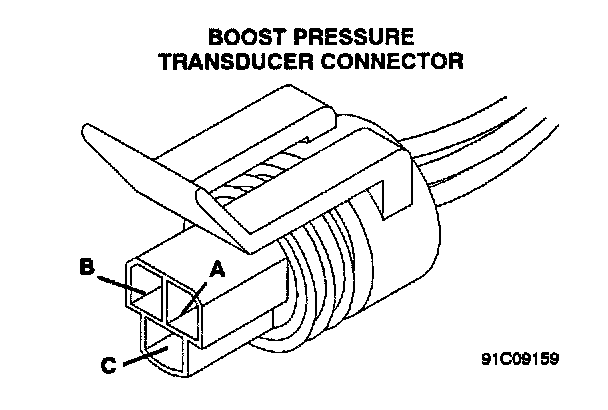

Boost Pressure Transducer Connector

CAV CIRCUIT............ FUNCTION
A..... B10 RD/BK.......... Transducer Ground
B..... B58 GY/LB.......... Transducer +5V
C..... B19 DB............. Boost Pressure Return
