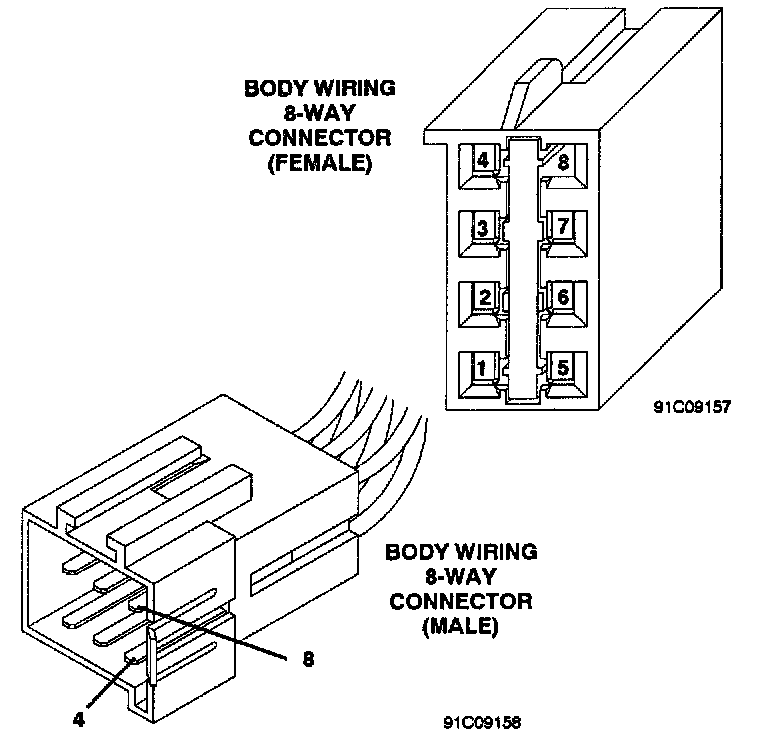

Body Wiring Connector

CAV CIRCUIT............ FUNCTION
1......................... Not Used
2..... B3 LG/DB........... LR Wheel Sensor
3..... L01 VT/BK.......... Back-up Lamp Feed (From Trans SW)
4..... A51C DG/BK......... Fuel Pump Motor
5......................... Not Used
6..... B4 LG.............. LR ABS Wheel Sensor
7..... B2 YL.............. RR ABS Wheel Sensor
8..... B1 YL/DB........... RR ABS Wheel Sensor
