Brake Fluid Pump

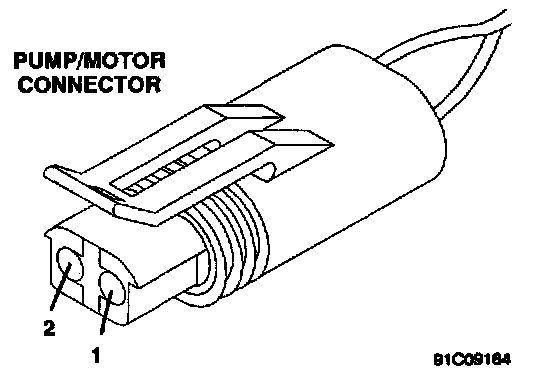

PUMP/MOTOR CONNECTOR

CAV CIRCUIT FUNCTION
1..... B10 BR/WT..... Pump/Motor Monitor Feed
2..... Z01M BK....... Ground
