Help 8, Pressure Ports

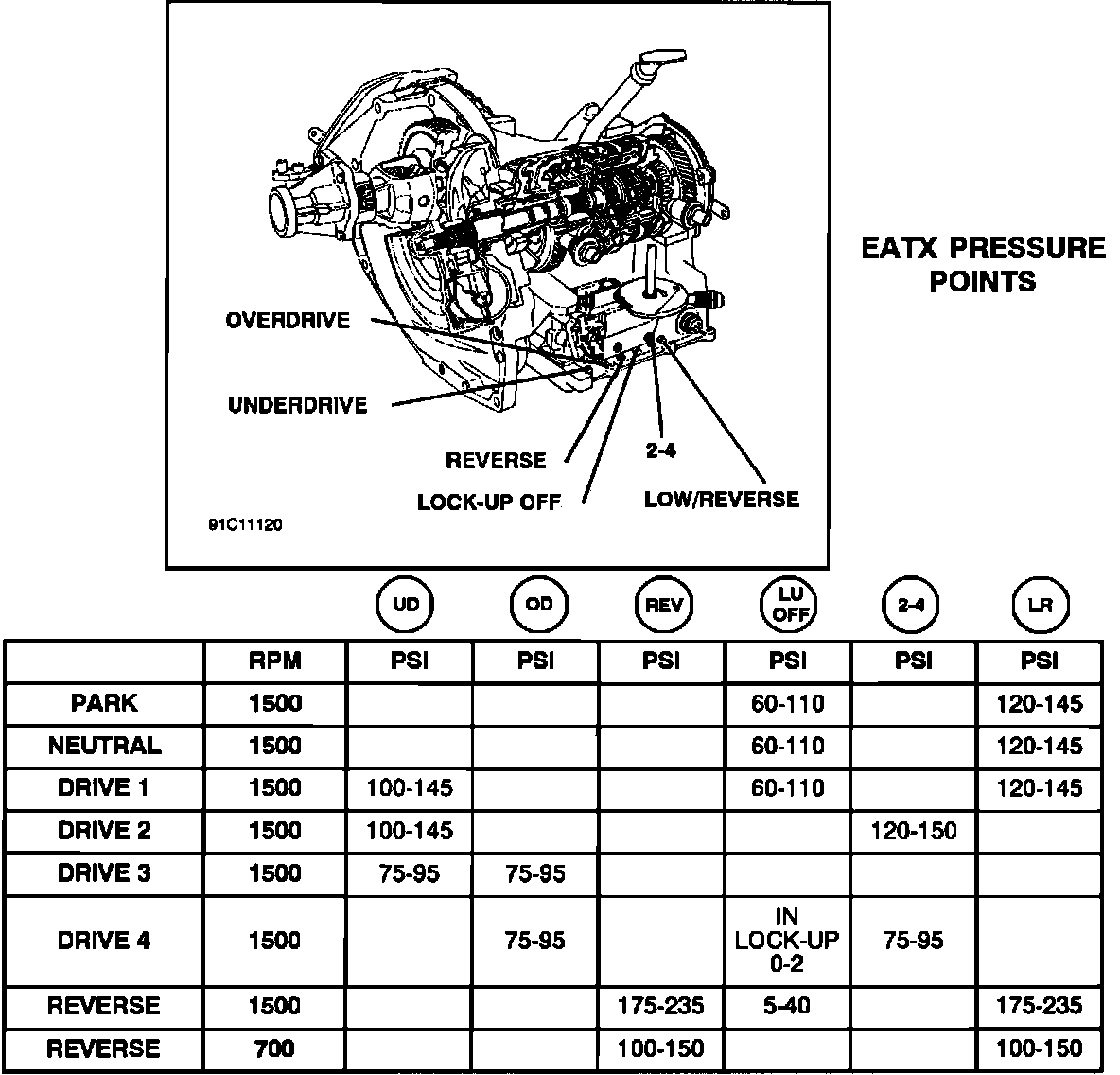

The chart below shows the range of normal pressure for each pressure port with the engine running at 1500 rpm.

Compare the pressure gauge reading to the chart, to determine if the pressure level is normal for a particular port.
