Help 2, Component & Connector Locations

A-604 transaxle components and connectors can be located by referring to the illustrations provided below.

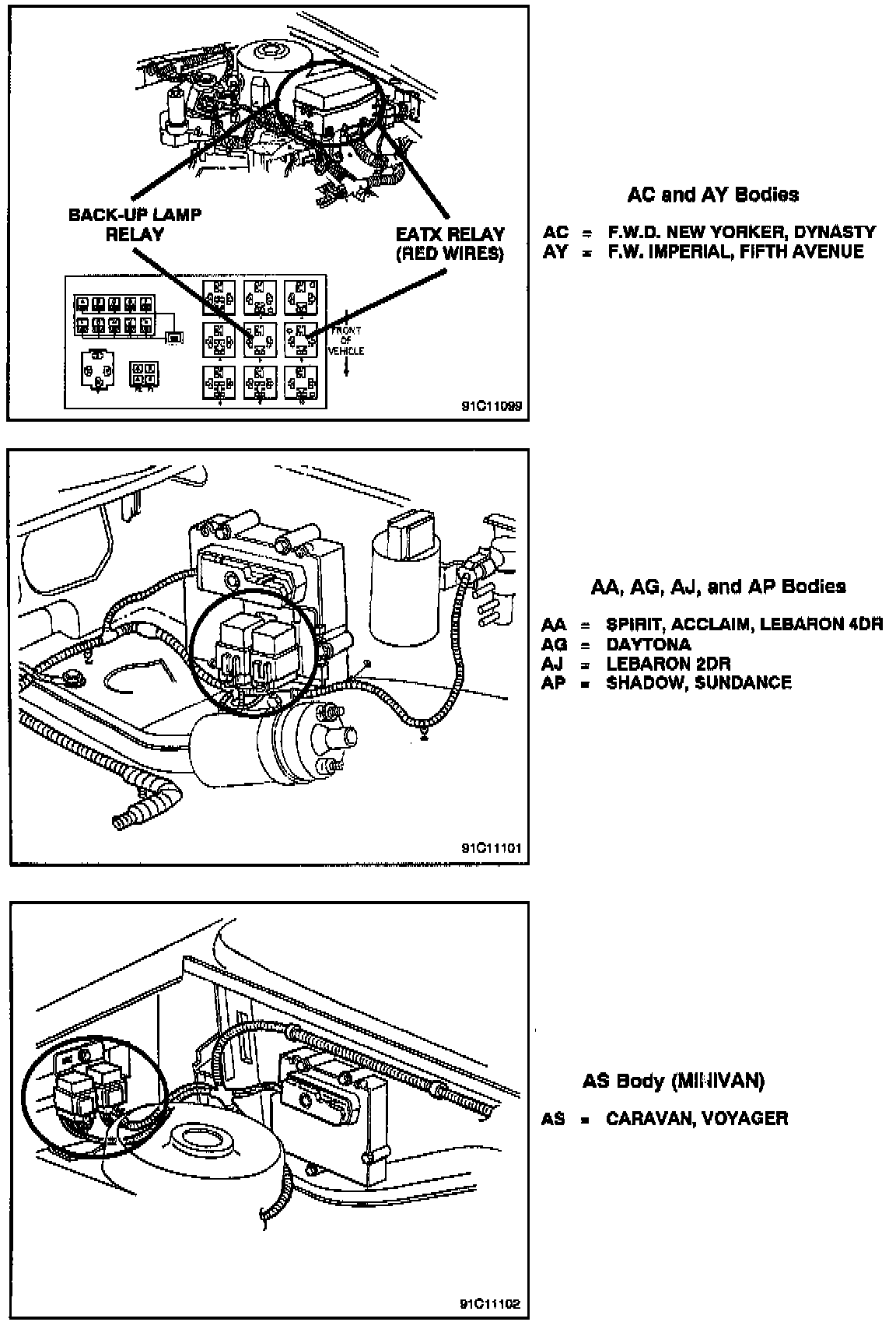

EATX AND REVERSE LAMP RELAY LOCATION

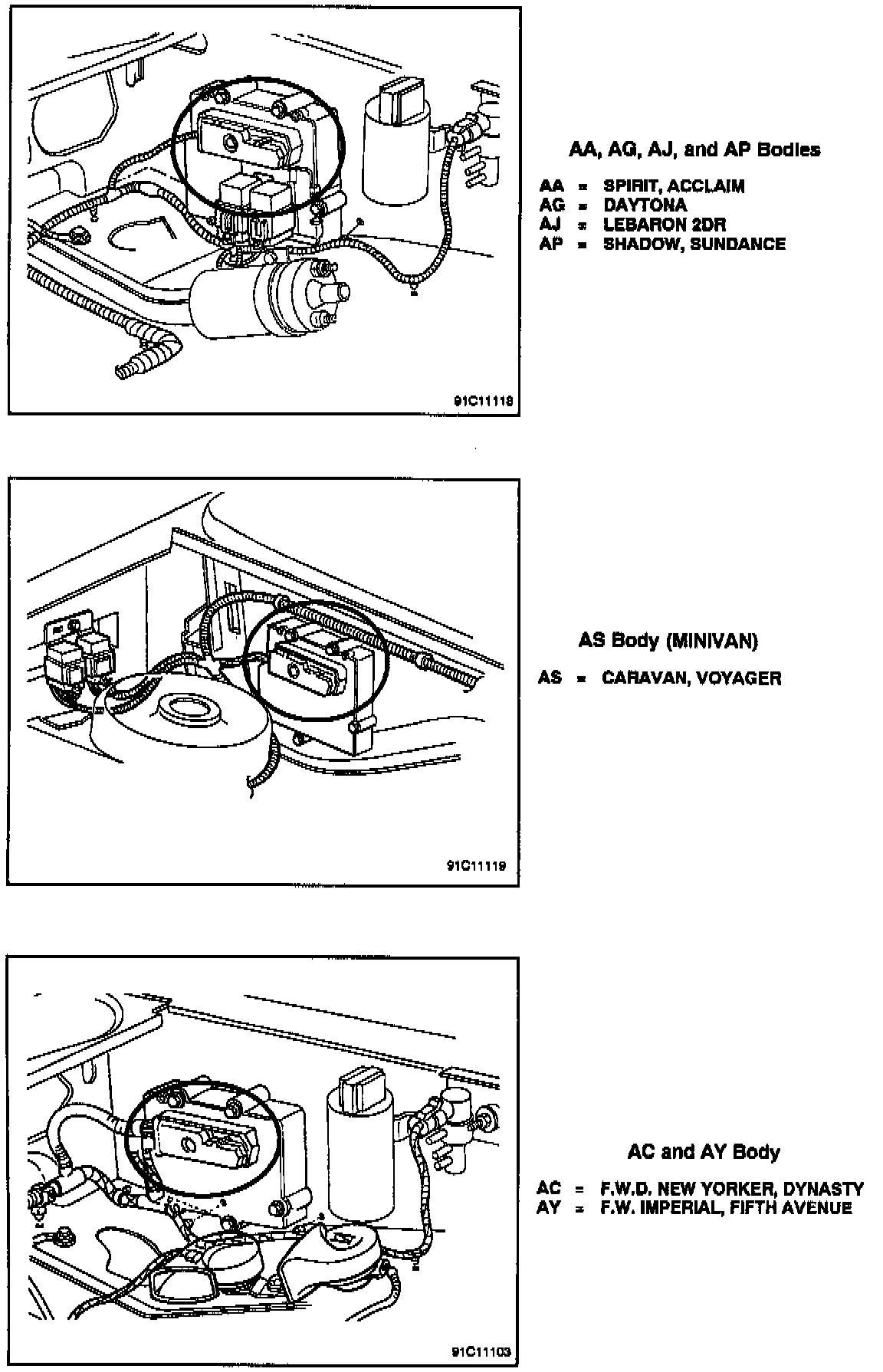

A-604 CONTROLLER LOCATION

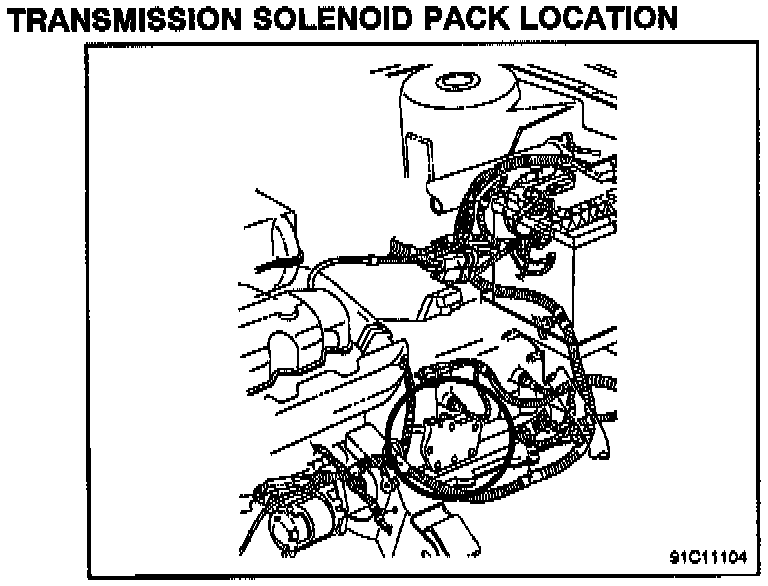

TRANSMISSION SOLENOID PACK LOCATION

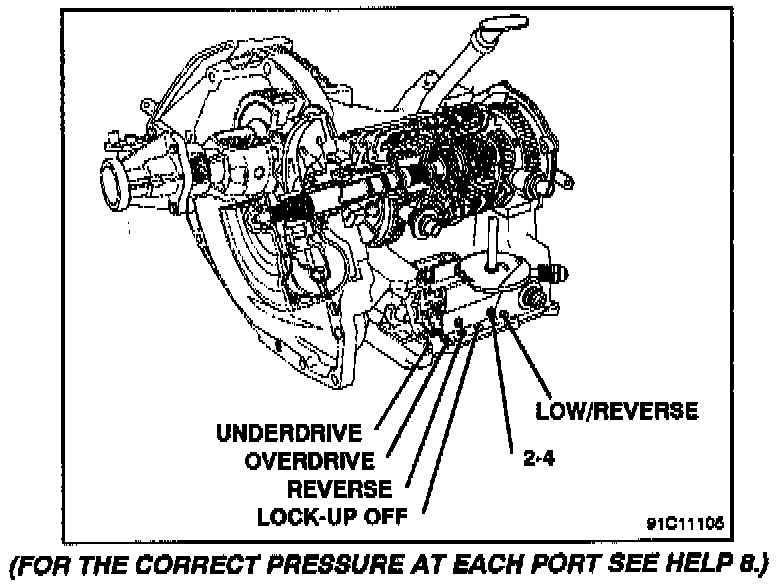

TRANSMISSION PRESSURE PORT LOCATION

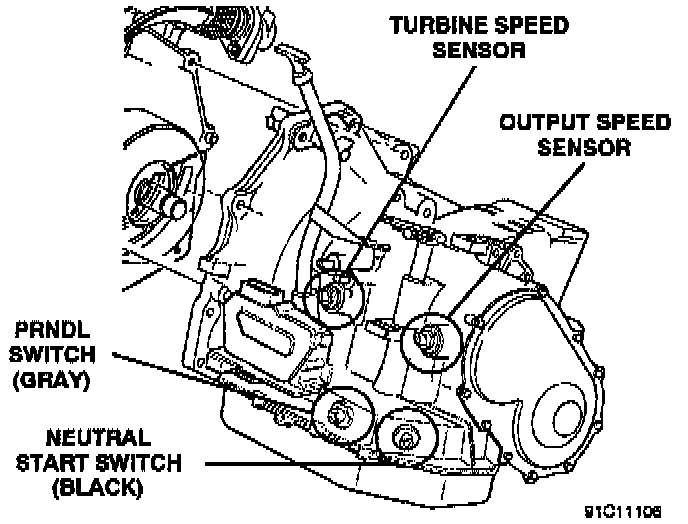

TRANSMISSION SENSOR AND SWITCH LOCATION




BUS DIAGNOSTIC CONNECTOR
