New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Suspension Control
>>
9B Compressor Fails to Run
9B Compressor Fails to Run

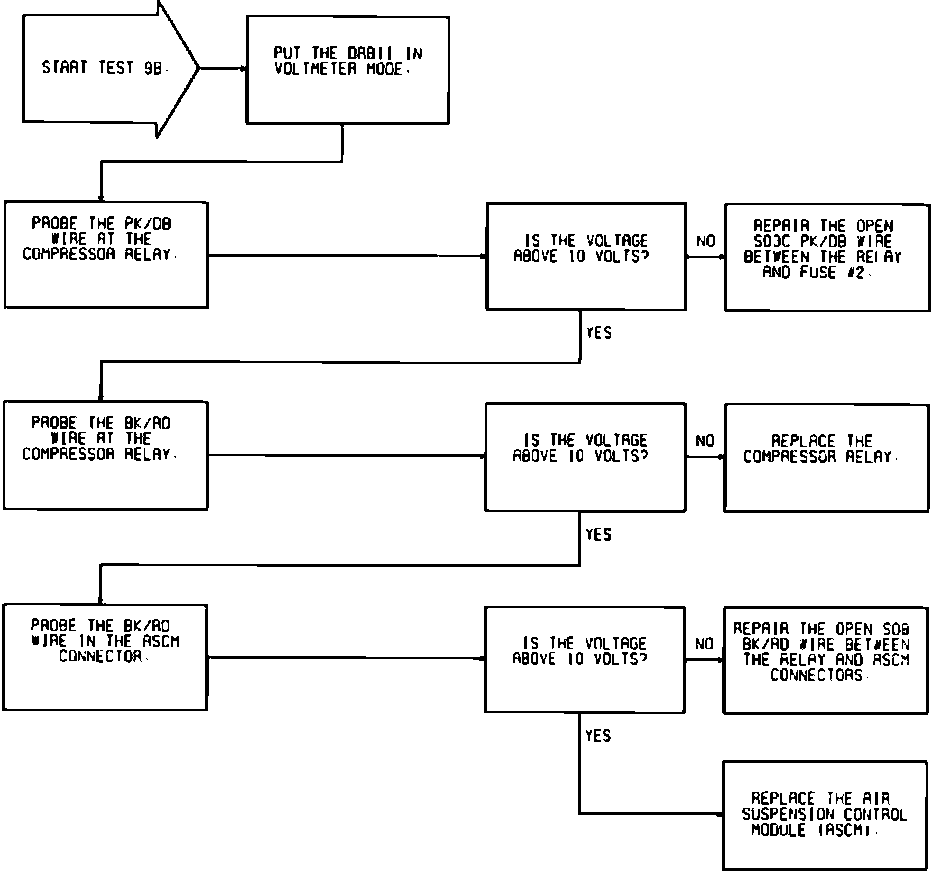

Fig. 37 Test 9B, Compressor Fails To Run:
