New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Suspension Control
>>
9A Compressor Fails to Run
9A Compressor Fails to Run

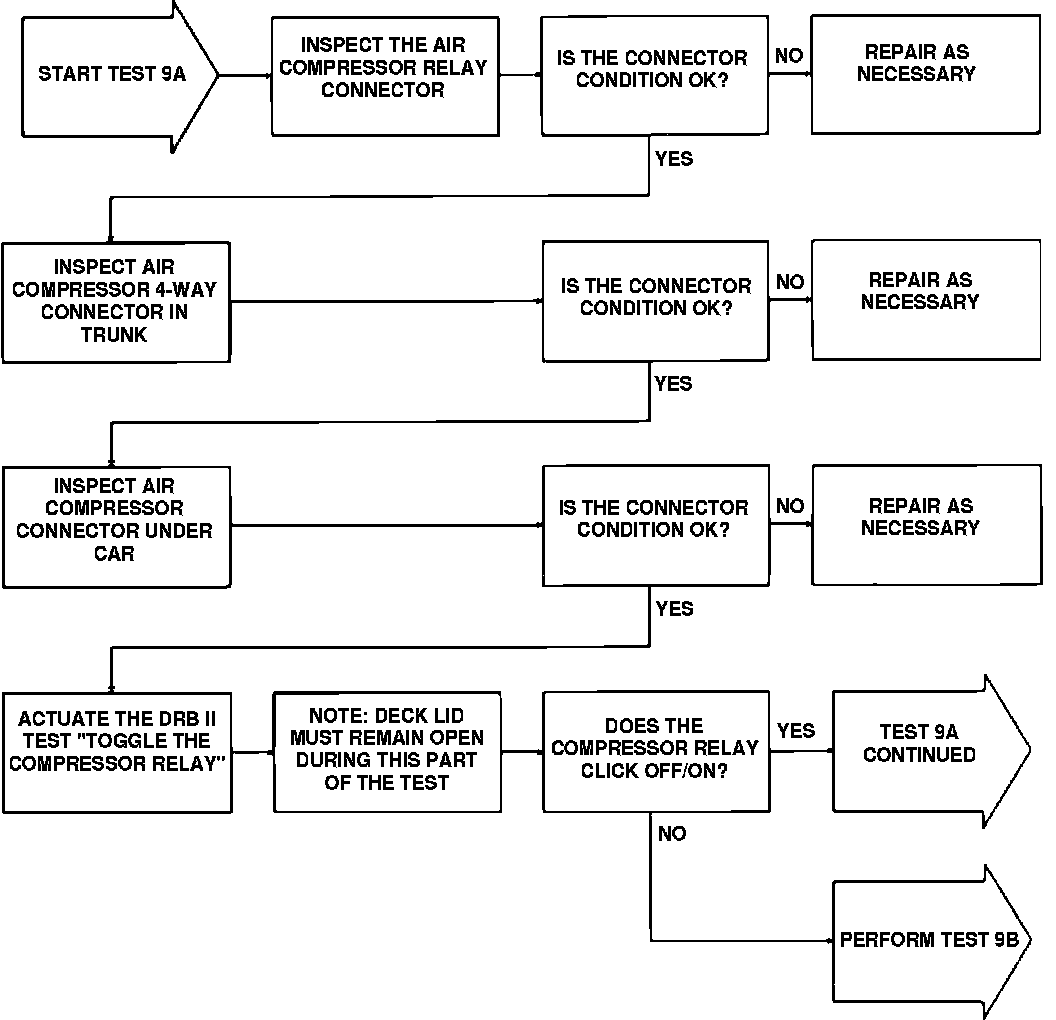

Fig. 36 Test 9A, Compressor Fails To Run (Part 1 Of 2):
Fig. 36 Test 9A, Compressor Fails To Run (Part 2 Of 2):
