8A "Disabling Bus Message"

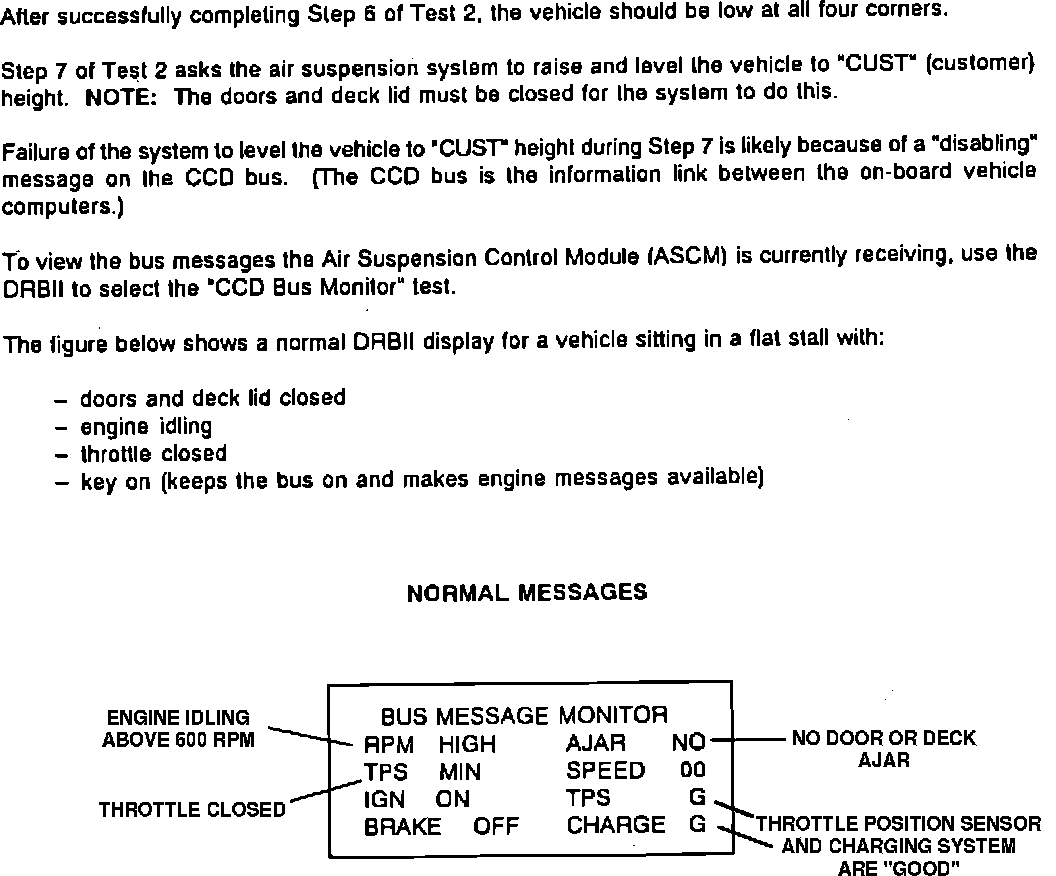

Fig. 35 Test 8A, Test For ``Disabling Bus Message'' (Part 1 Of 2):

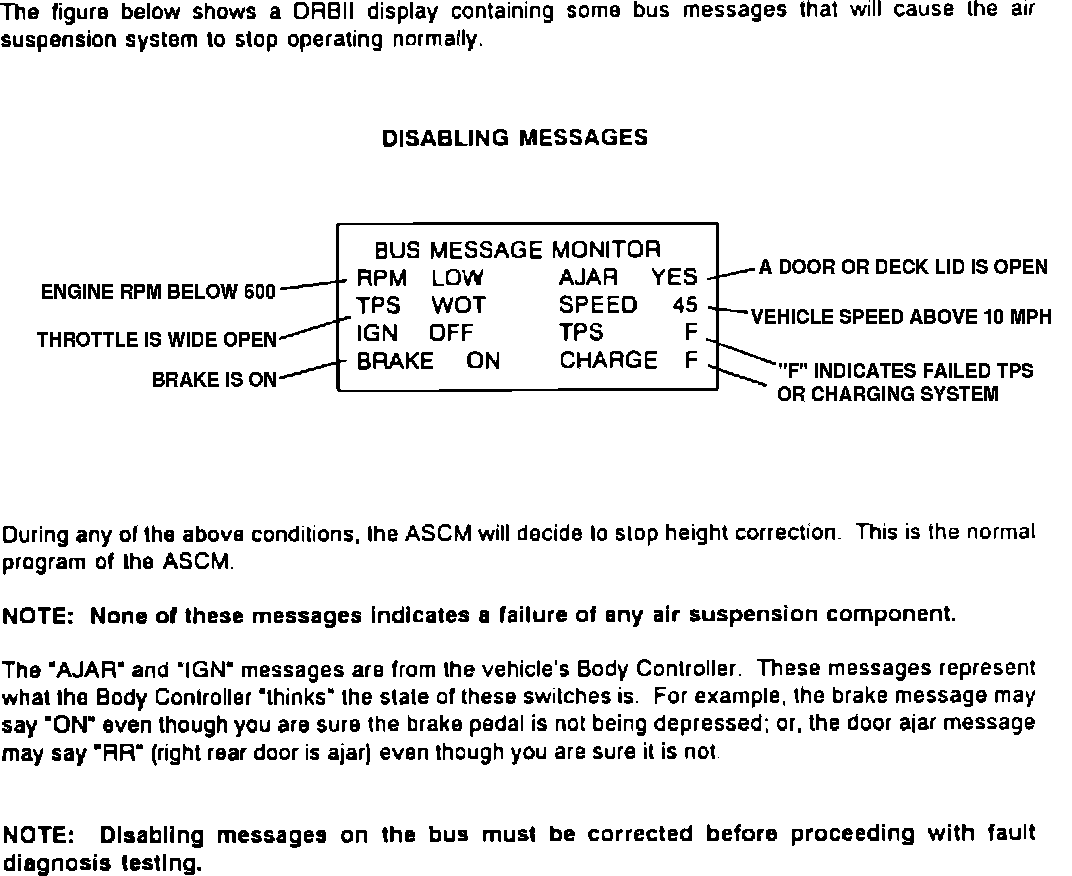

Fig. 35 Test 8A, Test For ``Disabling Bus Message'' (Part 2 Of 2):
