Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Suspension Control >> 7A Testing Height Sensor Ground

7A Testing Height Sensor Ground

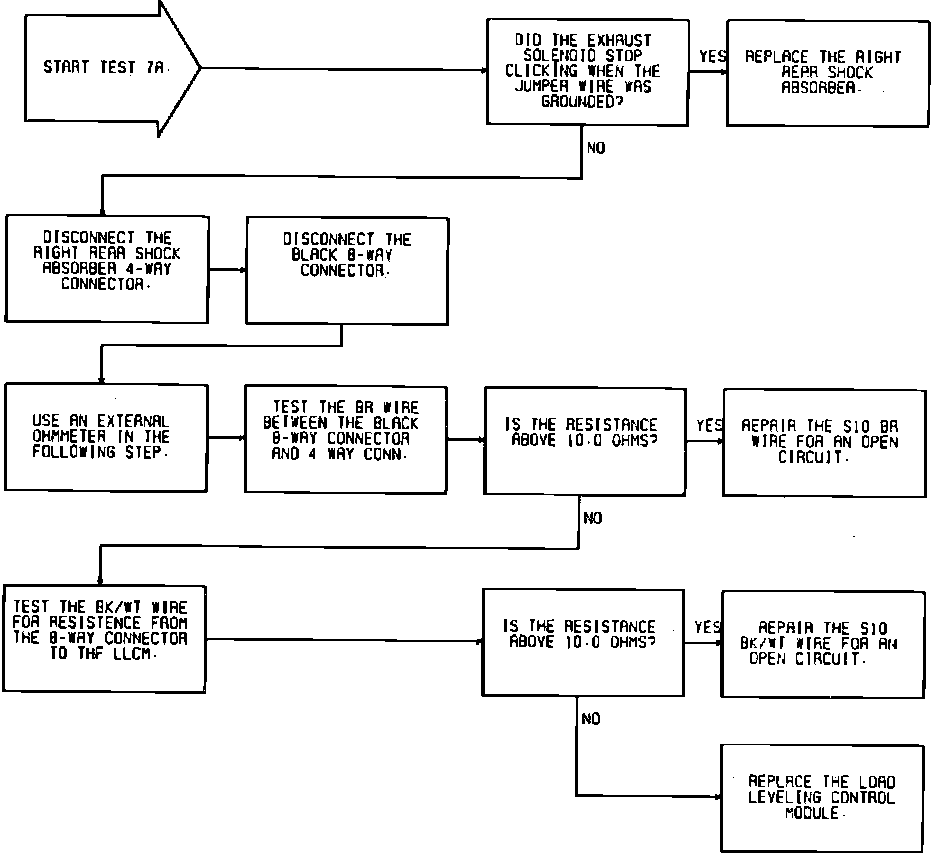

Fig. 24 Test 7A, Testing Height Sensor Ground:
