New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Suspension Control
>>
7A "Compressor Overrun" Message
7A "Compressor Overrun" Message

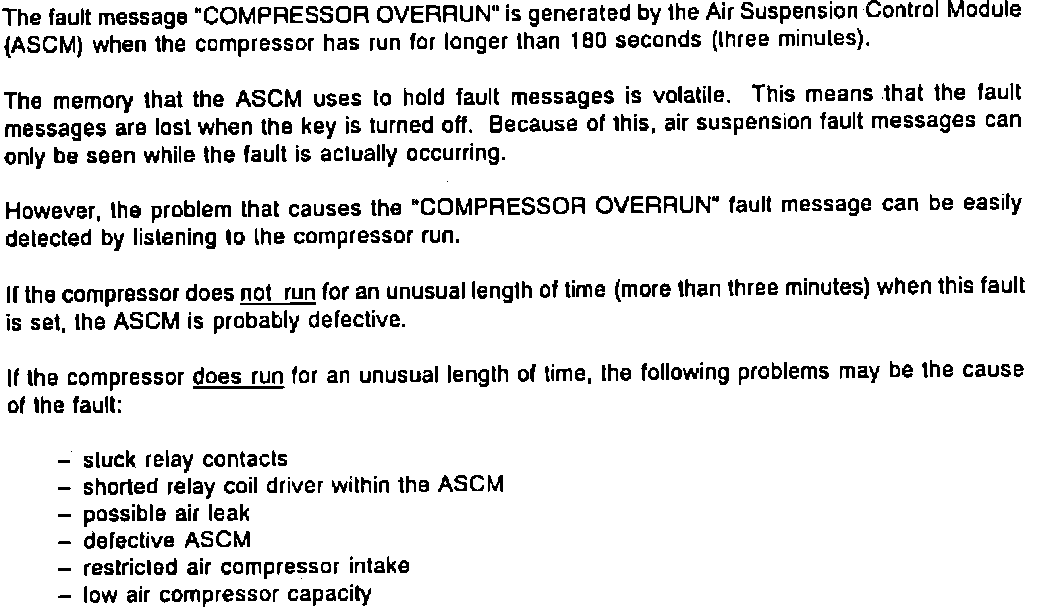

Fig. 34 Test 7A, Test For ``Compressor Overrun'' Message:
